Section 3 Communications Distances
RFID System
User's Manual
Section 3
Communications Specifications
Communications Distances
V680-D1KP52MT
 Communications Distance Specifications (Certified Performance)
When embedding the V680-D1KP52MT into a metal surface, use the V680-HS52 Antenna.
Transmission will not be possible if the V680-HS63 Antenna is used.

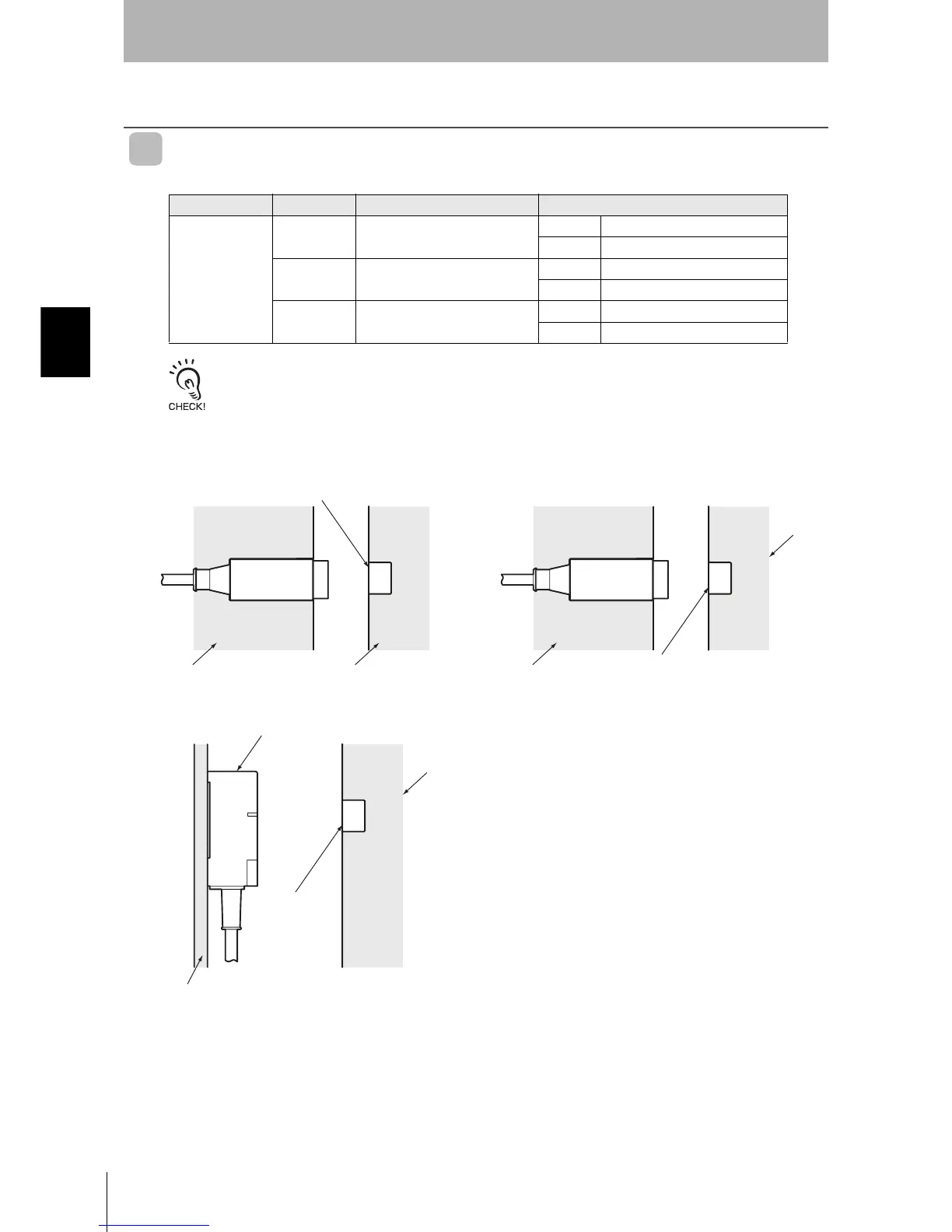

• Measurement Conditions
Amplifier Antenna ID Tag Communications distance
V680-HA63A
V680-HS52 V680-D1KP52MT
Read 0 to 9.0 mm (Axis offset: ±2)
Write 0 to 8.5 mm (Axis offset: ±2)
V680-HS52
V680-D1KP52MT embedded in
metal (steel)
Read 0 to 4.5 mm (Axis offset: ±2)
Write 0 to 4.0 mm (Axis offset: ±2)
V680-HS63 V680-D1KP52MT
Read 0 to 12.0 mm (Axis offset: ±2)
Write 0 to 9.5 mm (Axis offset: ±2)
Non-metallic material
V680-HS52
V680-D1KP52MT
Metal
V680-HS63
V680-D1KP52MT
Non-metallic material
V680-HS52
V680-D1KP52MT
Non-metallic material
(Examples: Resin, plastic, wood, etc.)
Non-metallic material
(Examples: Resin, plastic, wood, etc.)
Non-metallic material
