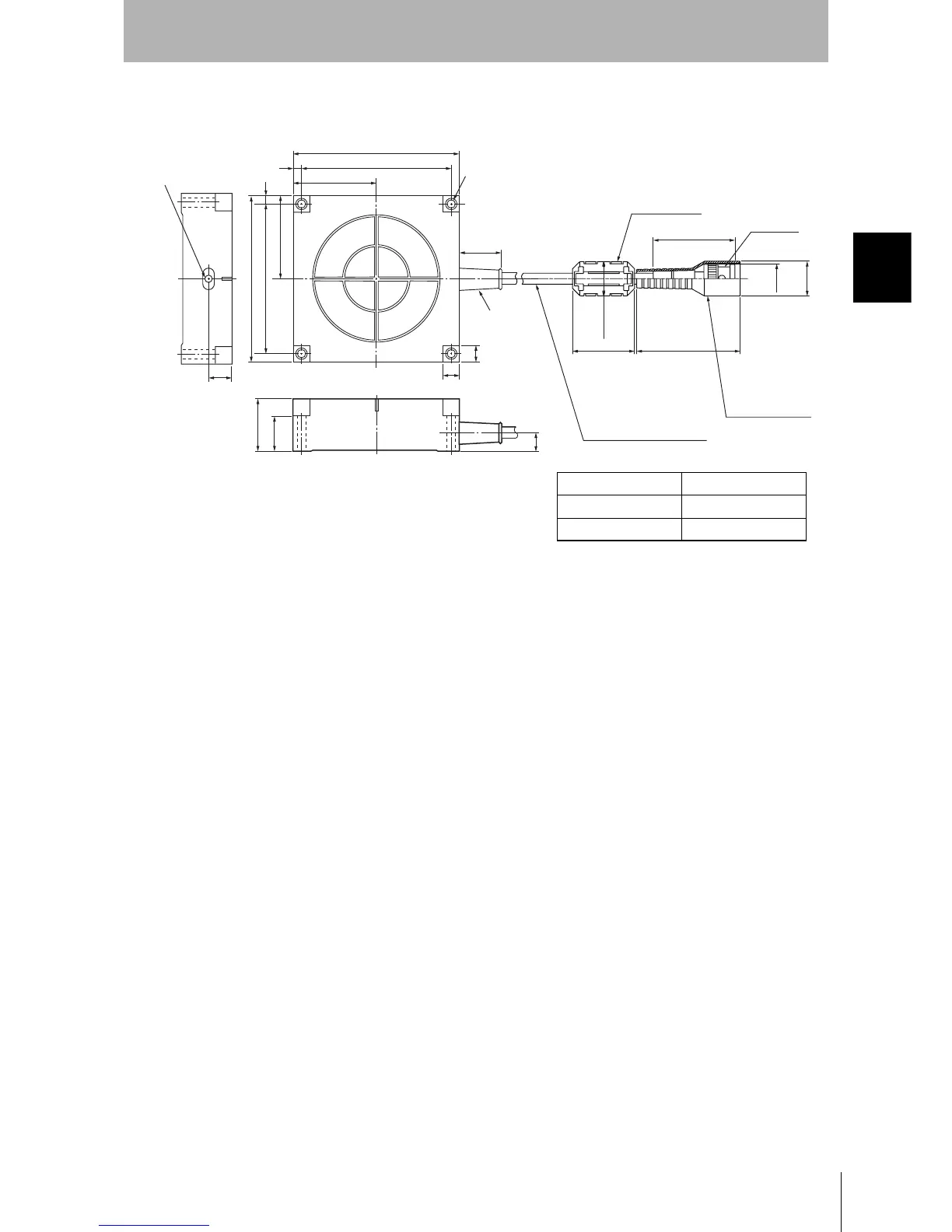

V680-HS65-R
(39.5)
16.5 dia.
14.5 dia.
(Unit: mm)
5030
16.5 dia.
Coaxial cable, 5.3 dia.,
standard length: 2 m
Insulation cover
Connector
Ferrite core
Operation indicator
30
20
11
14
10
10
Bushing
50
25
100
90±0.25
50
100
90±0.2 5
4-4.5 dia.
(Mounting holes)
Case material ABS resin
Fill resin Epoxy resin
Cable PVC (black)
