22
Section 2 Antennas with Separate Amplifier
RFID System
User's Manual
Section 2
Specifications and Performance
V680-HS65
 General Specifications

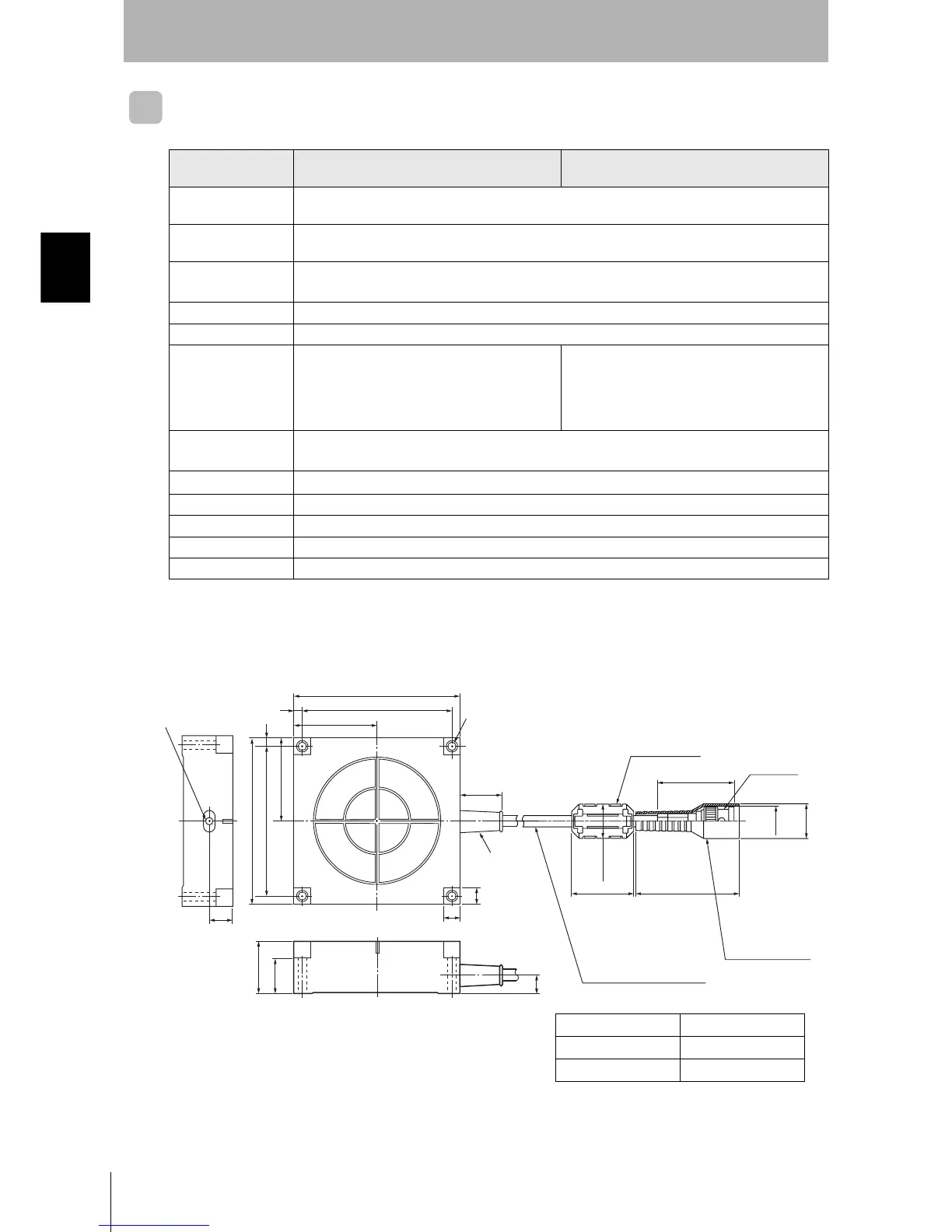

 Dimensions
• V680-HS65-W
Item Model V680-HS65-W
(Standard cable, waterproof connector)
V680-HS65-R
(Flexible cable, non-waterproof connector)
Ambient operating
temperature
−25 to 70°C (with no icing)
Ambient storage
temperature
−40 to 85°C (with no icing)
Ambient operating
humidity
35% to 95% (with no condensation)
Insulation resistance
20 MΩ min. (at 500 VDC) between connector terminals and case
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min between connector terminals and case
Degree of protection IP67 (IEC60529)
In-house standard for antenna oil resistance
(former JEM standard equivalent to IP67g)
Note: The connector specifications are IP67 and
IP65 (IEC 60529).
IP67 (IEC60529)
In-house standard for antenna oil resistance
(former JEM standard equivalent to IP67g)
Note: The connectors are not waterproof.
Dielectric strength
10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s
2
, 10 sweeps in each of 3 axis directions
(up/down, left/right, and forward/backward) for 11 minutes each
Shock resistance
500 m/s
2
, 3 times each in 6 directions (Total: 18 times)
Dimensions 100
× 100 × 30 mm
Material ABS resin case, epoxy resin filler
Weight Approx. 1100 g (with 12.5 m cable)
Cable length Standard lengths of 2 and 12.5 m
Operation indicator
30
20
11
(Unit: mm)
16.5 dia.
14.5 dia.
37
5030
16.5 dia.
Coaxial cable, 5.5 dia.,
standard length: 2 m
Connector
Ferrite core
Insulation cover
14
10
10
Bushing
50
25
100
90±0.25
50
100
90±0.2 5
4-4.5 dia.
(Mounting holes)
Case material ABS resin
Fill resin Epoxy resin
Cable PVC (gray)
