Section 2 Antennas with Separate Amplifier
Section 2
Specifications and Performance

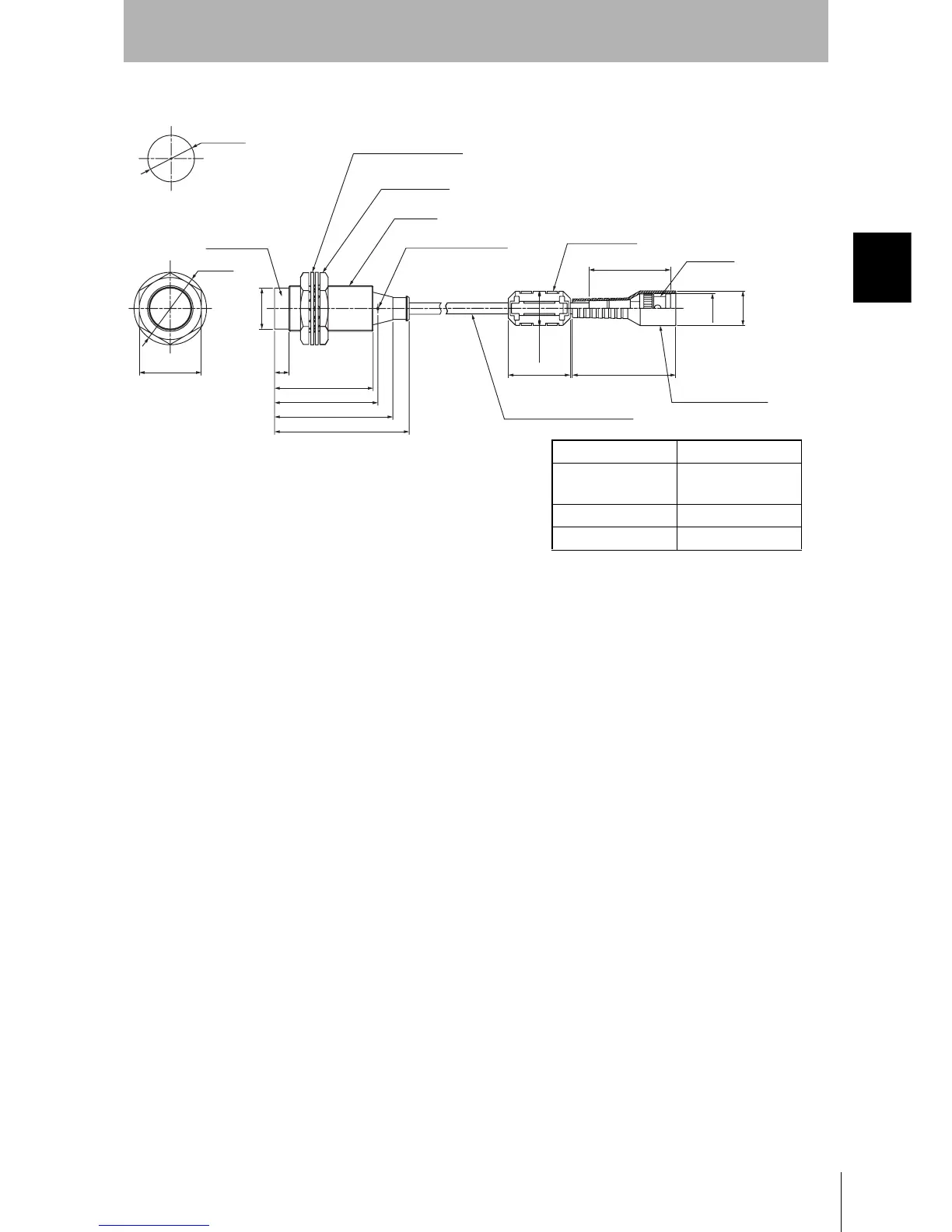

• V680-HS52-R
65
47.6
57
50
730
19.8 dia.
35 dia.
22.5 dia.
Mounting Hole Dimensions
Two toothed washers
Two lock nuts
M22 × 1
Operation indicator
Insulation cover
5030
16.5 dia.
Coaxial cable, 5.3 dia.,
standard length: 2 m
Insulation cover
(39.5)
Connector
Ferrite core
16.5 dia.
14.5 dia.
Antenna
Case material Brass
Communications
surface
ABS resin
Fill resin Epoxy resin
Cable PVC (black)
