Mutual Interference between Antennas (Reference)

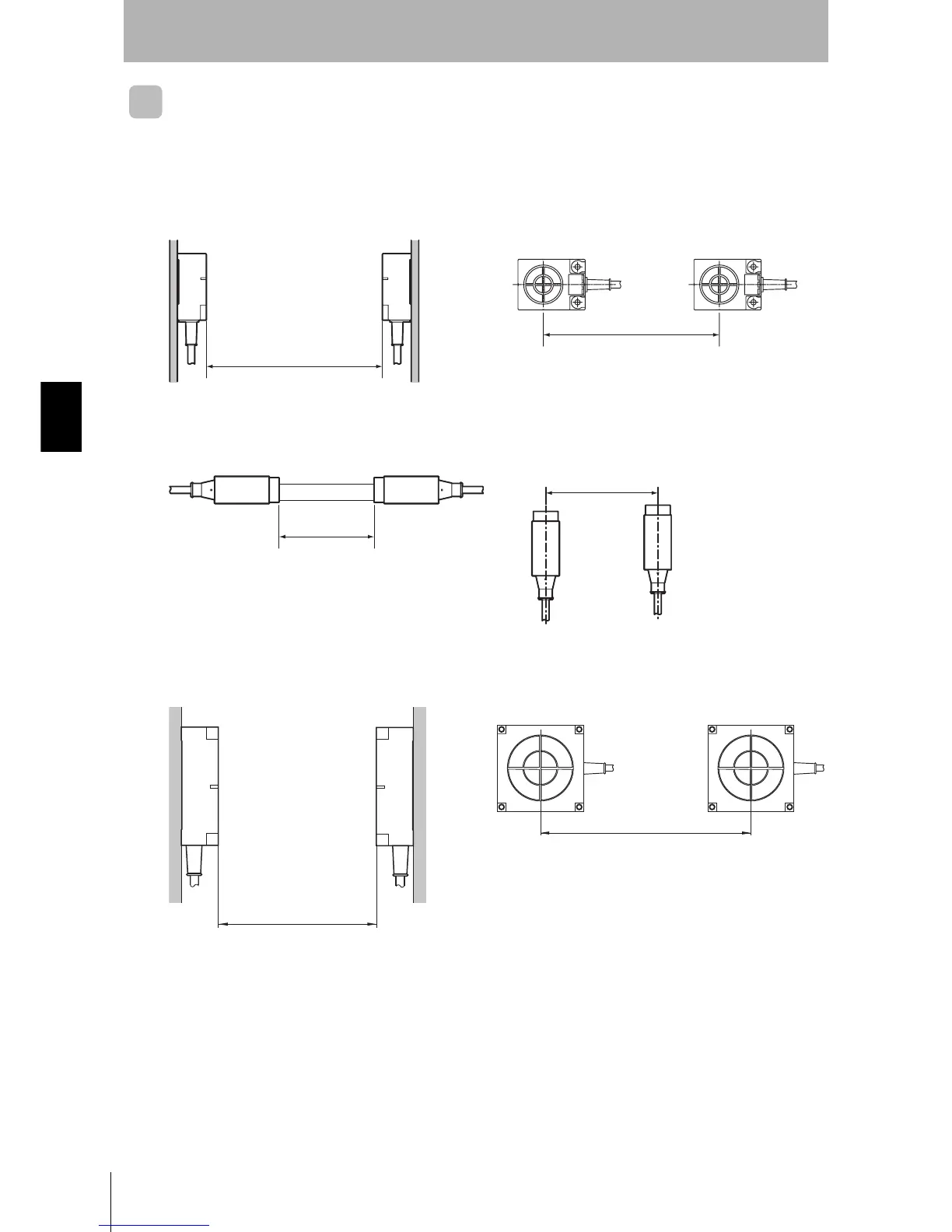

To prevent malfunctioning due to mutual interference when using more than one Antenna, leave suffi-
cient space between them as shown in the following diagrams.
V680-HS63
V680-HS52
V680-HS65
420 mm min.
260 mm min.
• Installing the Antennas Facing Each Other
• Installing the Antennas in Parallel
120 mm min.
100 mm min.
• Installing the Antennas Facing Each Other
• Installing the Antennas in Parallel
• Installing the Antennas Facing Each Other
• Installing the Antennas in Parallel
700 mm min.
400 mm min.
