56
Section 4 Installing Tags
RFID System
User's Manual
Section 4
Installation

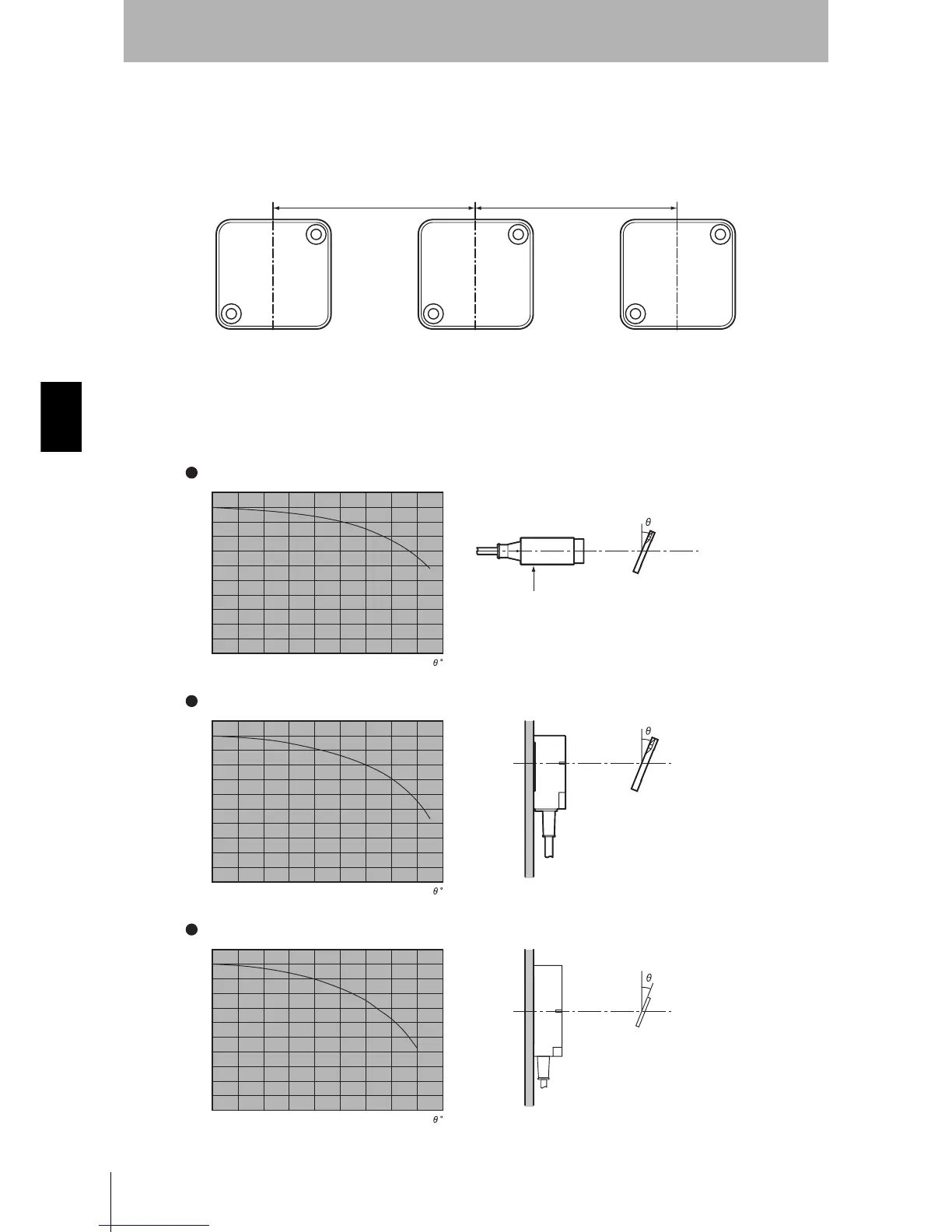

 Mutual Interference with Tags (Reference)
To prevent malfunctioning due to mutual interference when using more than one Tag, leave sufficient
space between them as shown in the following diagram.
 Influence of Tag Angle (Reference)
Install Antennas and Tags as close to parallel to each other as possible. Communications are possible
even when an Antenna and a Tag are mounted at an angle, but the communications distance will be
shortened. The relation between the angle and the communications distance is shown below.
100 mm min.
100 mm min.
0
10
20
30
40
50
60
70
80
90
100
0 1020304050607080
(%)
V680-HS52 and V680-D1KP66T
0
10
20
30
40
50
60
70
80
90
100
0 1020304050607080
(%)
V680-HS63 and V680-D1KP66T
Reduction in maximum communications distance
Tag angle
Tag angle
Reduction in maximum communications distance
( )
( )
0
10
20
30
40
50
60
70
80
90
100
0 1020304050607080
(%)
V680-HS65 and V680-D1KP66T
Ta
g
an
g
le
Reduction in maximum communications distance
( )
Antenna
Tag
Antenna
Tag
Metal
Antenna
Tag
Metal
