Omron V7 User Manual

14
Frequency inverters

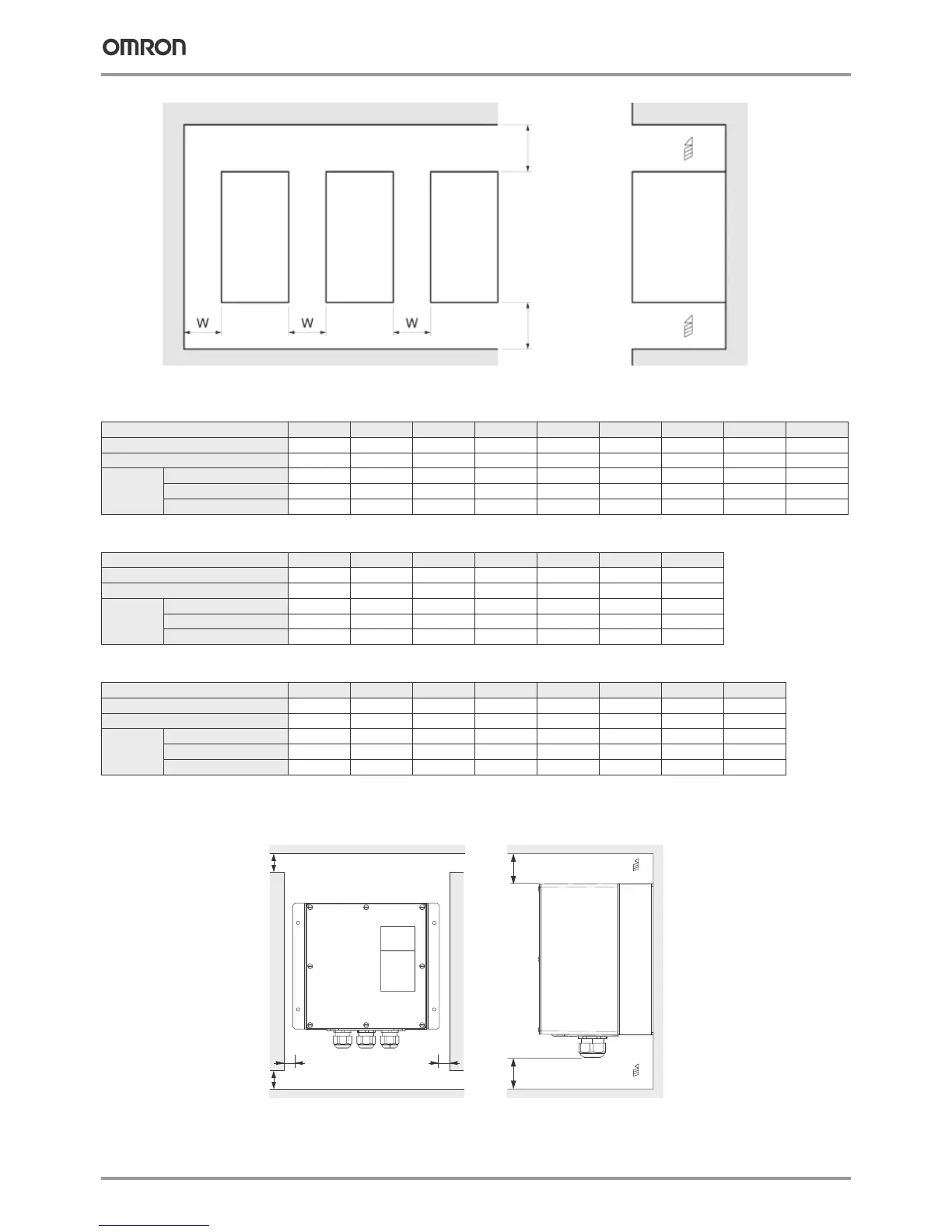

Inverter heat loss
Three-phase 200 V class
Single-phase 200 V class
Three-phase 400 V class
Installation conditions for IP65
Model CIMR-V7AZ 20P1 20P2 20P4 20P7 21P5 22P2 24P0 25P5 27P5
Inverter capacity kVA 0.3 0.6 1.1 1.9 3.0 4.2 6.7 9.5 13
Rated current A 0.8 1.6 3 5 8 11 17.5 25 33
Heat
loss W
Fin 3.7 7.7 15.8 28.4 53.7 60.4 96.7 170.4 219.2
Inside unit 9.3 10.3 12.3 16.7 19.1 34.4 52.4 79.4 98.9
Total heat loss 13.0 18.0 28.1 45.1 72.8 94.8 149.1 249.8 318.1
Model CIMR-V7AZ B0P1 B0P2 B0P4 B0P7 B1P5 B2P2 B4P0
Inverter capacity kVA 0.3 0.6 1.1 1.9 3.0 4.2 6.7
Rated current A 0.8 1.6 3 5 8 11 17.5
Heat
loss W
Fin 3.7 7.7 15.8 28.4 53.7 64.5 98.2
Inside unit 10.4 12.3 16.1 23.0 29.1 49.1 78.2
Total heat loss 14.1 20.0 31.9 51.4 82.8 113.6 176.4
Model CIMR-V7AZ 40P2 40P4 40P7 41P5 42P2 44P0 45P5 47P5
Inverter capacity kVA 1.4 2.6 3.7 4.2 5.5 7.0 11 14
Rated current A 1.8 3.4 4.8 5.5 7.2 8.6 14.8 18
Heat
loss W
Fin 15.1 30.3 45.8 50.5 58.2 73.4 168.8 209.6
Inside unit 15.0 24.6 29.9 32.5 37.6 44.5 87.7 99.3
Total heat loss 30.1 54.9 75.7 83.0 95.8 117.9 256.5 308.9
W =
Inverter
Inverter Inverter
50 mm min. (5.5 and 7.5 KW)
30 mm min. (0.1 to 4.0 KW)
100 mm min.
100 mm min.
Side
Air
Air
Install the inverter vertically in order to ensure proper cooling. When installing the inverter,
always provide the following minimum installation space to allow normal heat dissipation.
1. Always provide enough space for the main circuit or control lines including cable gland.
2. If installing inverters next to one another, provide a minimum spacing of 60mm
.
50 mm or more
50 mm or more
120 mm or more
120 mm or more
40 mm or more 40 mm
or more
Side spaces Top and bottom spaces
Air
Air
Varispeed V7
17
Ordering information
Varispeed V7
200 V 400 V
*See note
*See note
* Option frames are needed for V7 IP65 type.
CB
A
E
D D D D D D
Communication unit
3G3IV-PCN329-E
Inverter to PC cable
3G3IV-PCN126/326
Digital operator
extension cable
CX-Drive
Braking accessories
PLC option unit
Varispeed
V7
Line filter
3G3IV-PEZZ8122_
DIN attachment
JVOP-144
Remote digital oper.
with potentiometer
JVOP-146
Remote digital oper.
with potentiometer
LKEB_
ERF150WJ_
CDBR_B
* V7 IP65 types are built-in filter inverters.
*See note
Specifications Model
1x200 V 0.12 Kw 0.8 A CIMR-V7AZB0P10
0.25 Kw 1.6 A CIMR-V7AZB0P20
0.55 Kw 3.0 A CIMR-V7AZB0P40
1.1 Kw 5.0 A CIMR-V7AZB0P70
1.5 Kw 8.0 A CIMR-V7AZB1P50
2.2 Kw 11.0 A CIMR-V7AZB2P20
4.0 Kw 17.5 A CIMR-V7AZB4P00
3x200 V 0.12 Kw 0.8 A CIMR-V7AZ20P10
0.25 Kw 1.6 A CIMR-V7AZ20P20
0.55 Kw 3.0 A CIMR-V7AZ20P40
1.1 Kw 5.0 A CIMR-V7AZ20P70
1.5 Kw 8.0 A CIMR-V7AZ21P50
2.2 Kw 11.0 A CIMR-V7AZ22P20
4.0 Kw 17.5 A CIMR-V7AZ24P00
5.5 Kw 25.0 A CIMR-V7AZ25P51
7.5 Kw 33.0 A CIMR-V7AZ27P51
Specifications Model
3x400 V 0.37 Kw 1.2 A CIMR-V7AZ40P20
0.55 Kw 1.8 A CIMR-V7AZ40P40
1.1 Kw 3.4 A CIMR-V7AZ40P70
1.5 Kw 4.8 A CIMR-V7AZ41P50
2.2 Kw 5.5 A CIMR-V7AZ42P20
3.0 Kw 7.2 A CIMR-V7AZ43P00
4.0 Kw 9.2 A CIMR-V7AZ44P00
5.5 Kw 14.8 A CIMR-V7AZ45P51
7.5 Kw 18.0 A CIMR-V7AZ47P51
Varispeed V714

Omron V7 Specifications

General

Series	V7
Cooling Method	Forced air cooling
Power Rating	0.4kW to 15kW
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Output Voltage	3-phase 200 to 240 VAC, 3-phase 380 to 480 VAC
