Omron VARISPEED F7 Datasheet

Varispeed F7 287

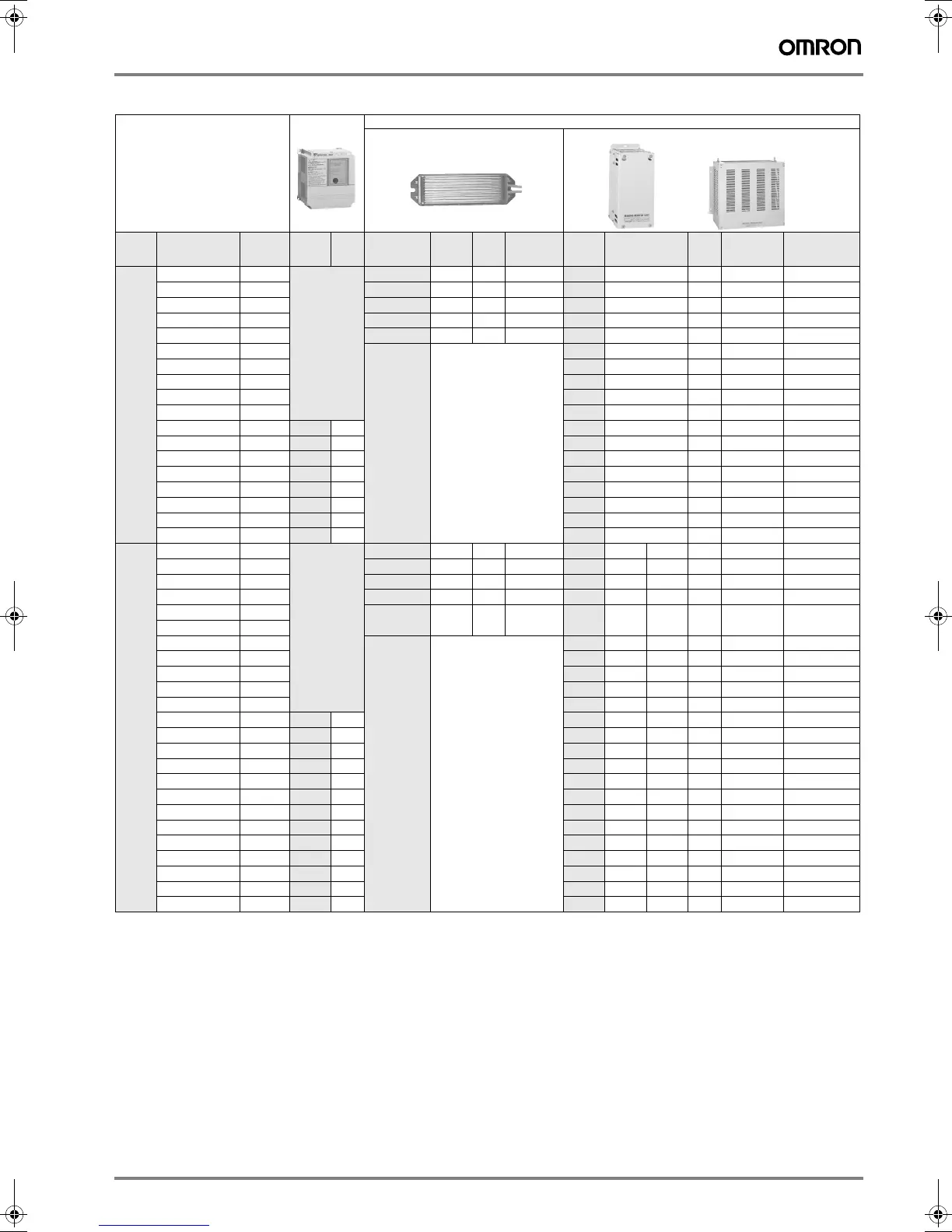

G Braking unit, braking resistor unit
Inverter
Braking unit
Braking resistor unit
1
1. When connecting a mounting type resistor or braking resistor unit, set system constant L3-04 to 0 (stall prevention disabled during deceleration). If op-
erating without changing the constant, motor does not stop at set deceleration time.
Inverter-mounted type
(3 %ED, 10 sec max)
2
2. When connecting mounting type braking resistor, set system constant L8-01 to 1 (braking resistor protection enabled).
Separately-installed type (10 %ED, 10 sec. max.)
3
3. Load factor during deceleration to stop a load with constant torque. With constant output or continuous regenerative braking, the load factor is smaller
than the specified value.
4. Resistance value per one braking unit. Select a resistance value that is larger than connectable minimum resistance value to obtain enough braking
torque.
5. For an application with large regenerative power such as hoisting, the braking torque or other items may exceed the capacity of a braking unit with a
braking resistor in a standard combination (an result in capacity overload). Contact your OMRON representatives when the braking torque or any other
item exceeds the values in the table.
Voltage
Max. applicable
motor output
kW
Model
CIMR-
F7Z_
Model
CDBR_
No. of
used
Model
ERF-150WJ_
Resis-
tance
No. of
used
Braking
torque %
Model
LKEB_
Specifications
of resistor
No. of
used
Braking
torque %
Connectable
min resistance
value Ω
200 V
class
0.4 20P4
Built-in
201 200 Ω 1 220 20P7 70 W 200 Ω 1 220 48
0.75 20P7 201 200 Ω 1 125 20P7 70 W 200 Ω 1 125 48
1.5 21P5 101 100 Ω 1 125 21P5 260 W 100 Ω 1 125 48
2.2 22P2 700 70 Ω 1 120 22P2 260 W 70 Ω 1 120 16
3.7 23P7 620 62 Ω 1 100 23P7 390 W 40 Ω 1 125 16
5.5 25P5
--- ---
25P5 520 W 30 Ω 1 115 16
7.5 27P5 27P5 780 W 20 Ω 1 125 9.6
11 2011 2011 2400 W 13.6 Ω 1 125 9.6
15 2015 2015 3000 W 10 Ω 1 125 9.6
18.5 2018 2015 3000 W 10 Ω 1 125 9.6
22 2022 2022B 1 2022 4800 W 6.8 Ω 1 125 6.4
30 2030 2015B 2 2015 3000 W 10 Ω 2 125 9.6
37 2037 2015B 2 2015 3000 W 10 Ω 2 100 9.6
45 2045 2022B 2 2022 4800 W 6.8 Ω 2 120 6.4
55 2055 2022B 2 2022 4800 W 6.8 Ω 2 100 6.4
75 2075 2110B 1 2022 4800 W 6.8 Ω 3 110 1.6
90 2090 2110B 1 2022 4800 W 6.8 Ω 4 120 1.6
110 2110 2110B 1 2018 4800 W 8 Ω 5 100 1.6
400 V
class
0.4 40P4
Built in
751 750 Ω 1 230 40P7 70 W 750 Ω 1 230 96
0.75 40P7 751 750 Ω 1 130 40P7 70 W 750 Ω 1 130 96
1.5 41P5 401 400 Ω 1 125 41P5 260 W 400 Ω 1 125 64
2.2 42P2 301 300 Ω 1 115 42P2 260 W 250 Ω 1 135 64
3.7 43P7
201 200 Ω 1 110 43P7 390 W 150 Ω 1 135 32
4.0 44P0
5.5 45P5
--- ---
45P5 520 W 100 Ω 1 135 32
7.5 47P5 47P5 780 W 75 Ω 1 130 32
11 4011 4011 1040 W 50 Ω 1 135 20
15 4015 4015 1560 W 40 Ω 1 125 20
18.5 4018 4018 4800 W 32 Ω 1 125 19.2
22 4022 4030B 1 4022 4800 W 27.2 Ω 1 125 19.2
30 4030 4030B 1 4030 6000 W 20 Ω 1 125 19.2
37 4037 4045B 1 4037 9600 W 16 Ω 1 125 12.8
45 4045 4045B 1 4045 9600 W 13.6 Ω 1 125 12.8
55 4055 4030B 2 4030 6000 W 20 Ω 2 135 19.2
75 4075 4045B 2 4045 9600 W 13.6 Ω 2 145 12.8
90 4090 4220B 1 4030 6000 W 20 Ω 3 100 3.2
110 4110 4220B 1 4030 6000 W 20 Ω 3 100 3.2
132 4132 4220B 1 4045 9600 W 13.6 Ω 4 140 3.2
160 4160 4220B 1 4045 9600 W 13.6 Ω 4 140 3.2
185 4185 4220B 1 4045 9600 W 13.6 Ω 4 120 3.2
220 4220 4220B 1 4037 9600 W 16 Ω 5 110 3.2
300 4300 4220B 2 4045 9600 W 13.6 Ω 6 110 3.2
Y203-EN2-02-Katalog.book Seite 287 Mittwoch, 24. Mai 2006 2:22 14
