Varispeed V7
215
Frequency Inverters

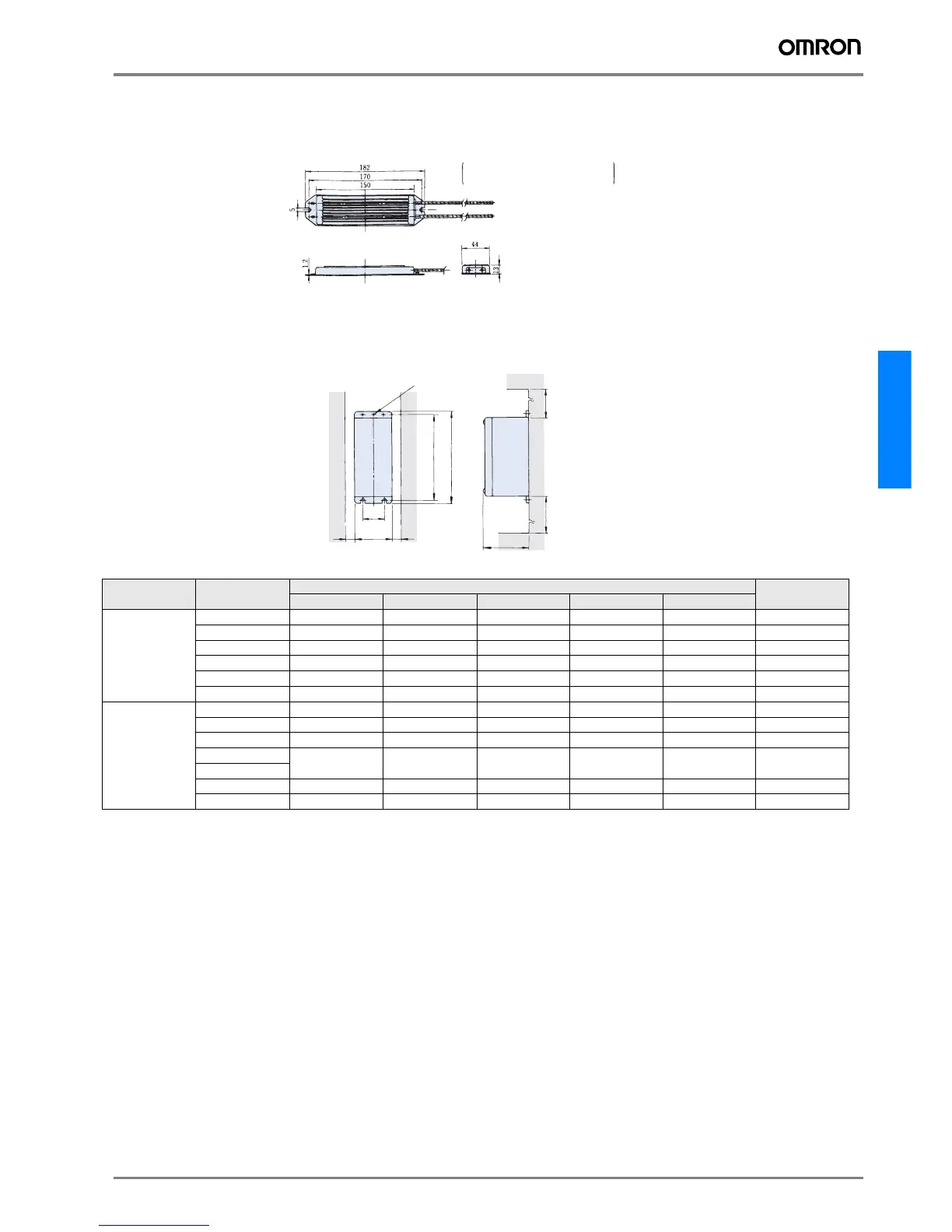

Braking Resistor Unit ERF-150WJ
Braking resistors unit
Note: Prepare mounting screws
(2-M4x8 tapped screws).
Screws 8mm or more and general
metric screws cannot be used.
Voltage Model LKEB-#
Dimensions in mm
Approx.
Mass kg
A B C D MTG.Screw
200V
Class
20P7 105 275 50 260 M5x3 3.0
21P5 130 350 75 335 M5x4 4.5
22P2 130 350 75 335 M5x4 4.5
40P7 130 350 75 350 M5x4 5.0
25P5 250 350 200 335 M6x4 7.5
27P5 350 350 200 335 M6x4 8.5
400V
Class
40P7 105 275 50 260 M5x3 3.0)
41P5 130 350 75) 335 M5x4 4.5
42P2 130 350 75) 335 M5x4 4.5
43P0
130 350 75 335 M5x4 5.0
43P7
45P5 250 350 200 335 M6x4 7.5
47P5 350 350 200 335 M6x4 8.5
MTG Screw
30 or more 30 or more
A
C
D B
150
150 or more 150 or more
