3.4.2. ARCADIA EXT COMBINE TO DENTAL UNITS WITH FLOOR WATER GROUP: LINEA
ESSE – LINEA PATAVIUM – TEMPO 9 ELX

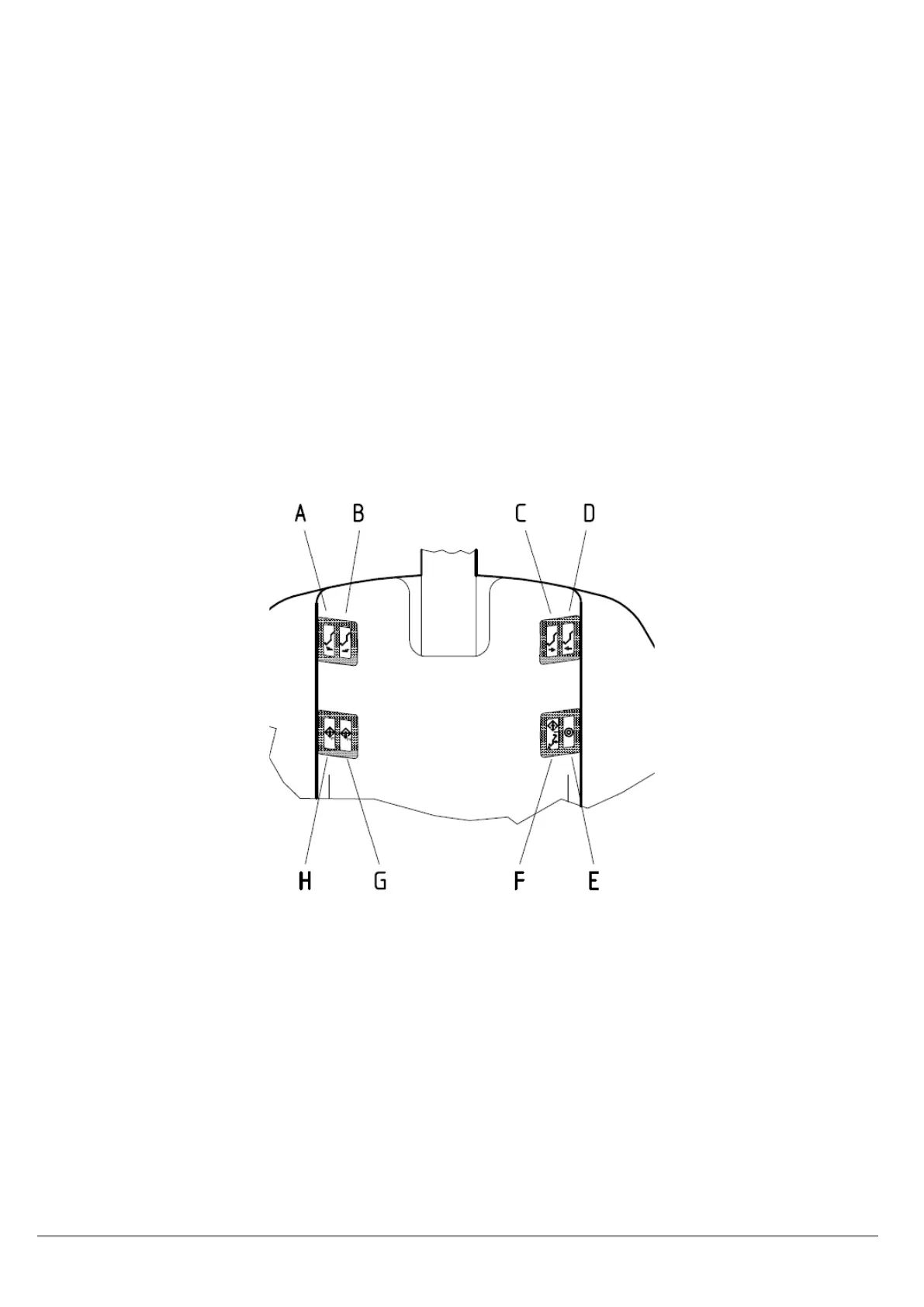

The operation of the controls is as follows:
E. Rinse command/last position (push the button towards the outside) starting from any position, this
command activates the ascent of backrest and seat to allow the patient to enter the glass rinsing; If
the command is pressed again the backrest returns to its previous position in the rinse cycle.
F. Reset command/ memory recall 1 (push the button towards the inside): starting from any position
other than the one reset, this command activates the descent of the patient chair pantograph in the
minimum position and simultaneously the backrest up to the maximum of its travel; When the chair is
to the zero position, pressing the button activates the memory recall 1 of the chair.
I. Memory recall 2 (push the button towards the inside): the pressure of the botton activates the recall
of memory 2 of the chair.
J. Memory recall 3 (push the button towards the outside) the pressure of the botton activates the recall
of memory 3 of the chair.
PROGRAM STORAGE
To store the channel position simply manually move the chair to the desired position (using the manual
controls) and then press and hold the button for the program that you want to memorize (F, G or H) until you
hear the beep confirming.
