ON Semiconductor MC14541B - Package Dimensions

MC14541B
www.onsemi.com
7

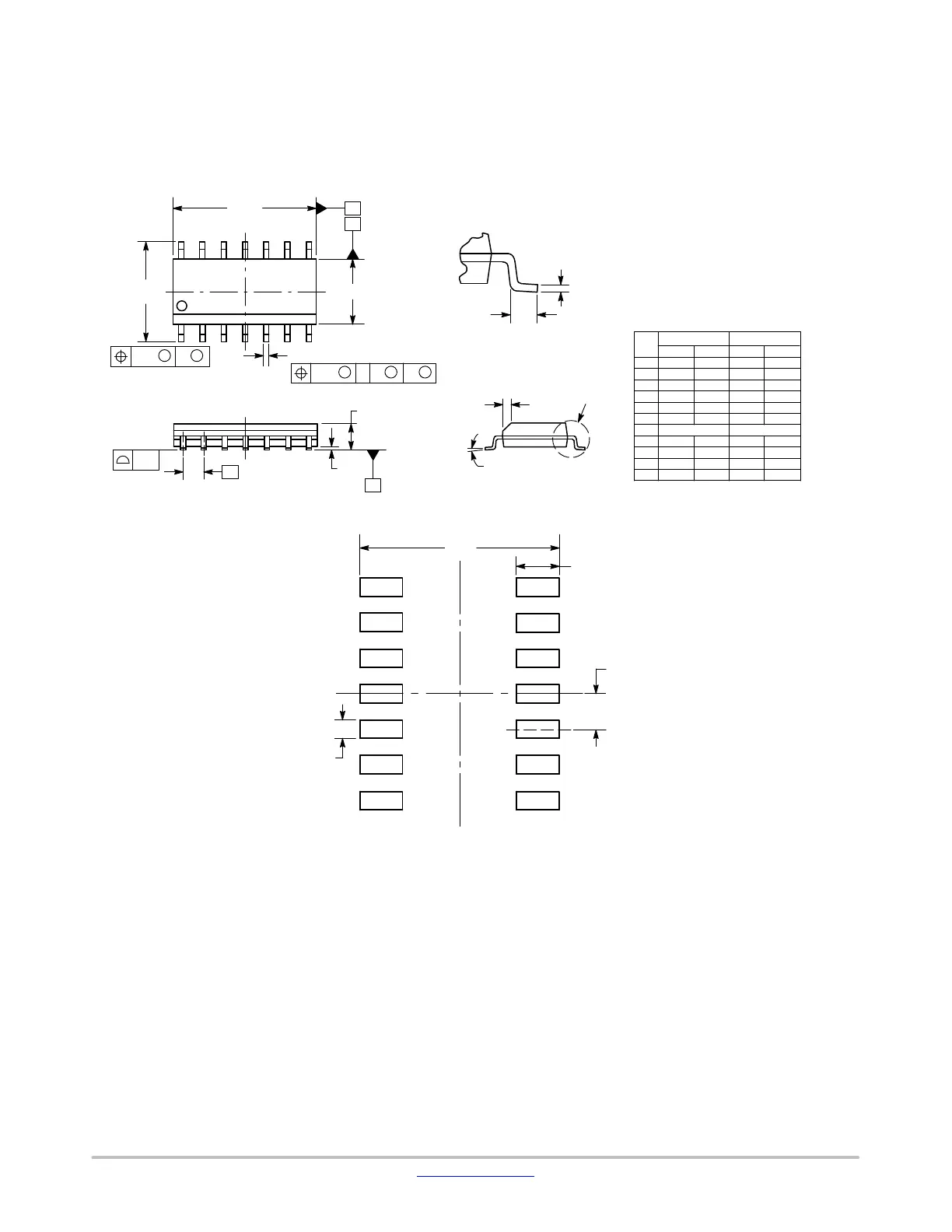

PACKAGE DIMENSIONS
SOIC−14 NB
CASE 751A−03
ISSUE L
6.50
14X
0.58
14X
1.18
1.27
DIMENSIONS: MILLIMETERS
1
PITCH
SOLDERING FOOTPRINT*
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. DIMENSION b DOES NOT INCLUDE DAMBAR
PROTRUSION. ALLOWABLE PROTRUSION
SHALL BE 0.13 TOTAL IN EXCESS OF AT
MAXIMUM MATERIAL CONDITION.
4. DIMENSIONS D AND E DO NOT INCLUDE
MOLD PROTRUSIONS.
5. MAXIMUM MOLD PROTRUSION 0.15 PER
SIDE.
H
14
8
71
M
0.25 B
M
C
h
X 45
SEATING
PLANE
A1
A
M
_
S
A
M
0.25 B
S
C
b
13X
B
A
E
D
e
DETAIL A
L
A3
DETAIL A
DIM MIN MAX MIN MAX
INCHESMILLIMETERS
D 8.55 8.75 0.337 0.344
E 3.80 4.00 0.150 0.157
A 1.35 1.75 0.054 0.068
b 0.35 0.49 0.014 0.019
L 0.40 1.25 0.016 0.049
e 1.27 BSC 0.050 BSC
A3 0.19 0.25 0.008 0.010
A1 0.10 0.25 0.004 0.010
M 0 7 0 7
H 5.80 6.20 0.228 0.244
h 0.25 0.50 0.010 0.019
__ __
0.10
