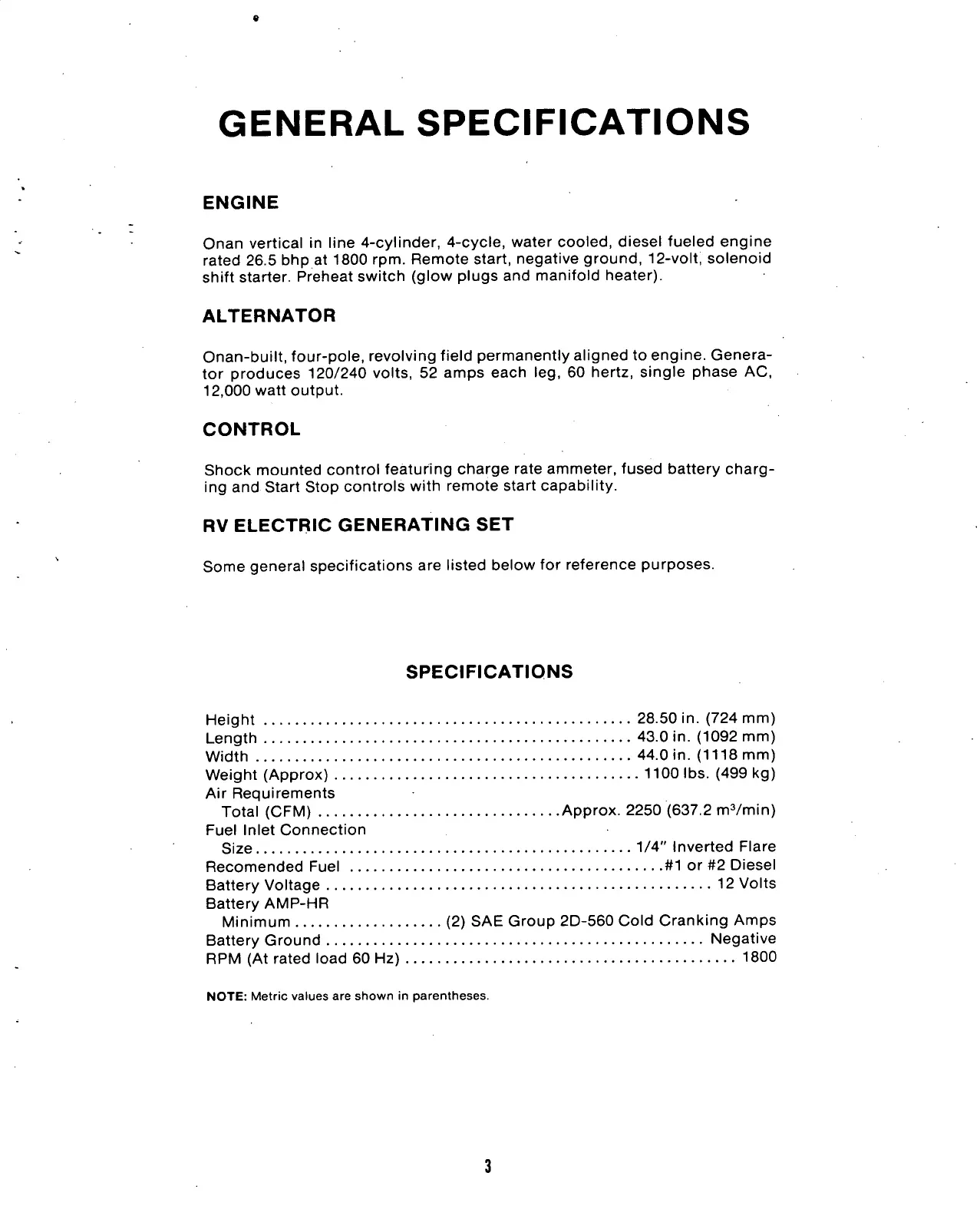

GENERAL
SPECIFICATIONS
ENGINE
Onan vertical in line 4-cylinder, 4-cycle, water cooled, diesel fueled engine
rated 26.5 bhp at 1800 rpm. Remote start, negative ground, 12-volt, solenoid
shift starter. Preheat switch (glow plugs and manifold heater).
ALTERNATOR
Onan-built, four-pole, revolving field permanently aligned to engine. Genera-
tor produces 120/240 volts, 52 amps each leg, 60 hertz, single phase AC,
12,000 watt output.
CONTROL
Shock mounted control featuring charge rate ammeter, fused battery charg-
ing and Start Stop controls with remote start capability.
RV
ELECTRIC
GENERATING
SET
Some general specifications are listed below for reference purposes.
SPECIFICATIONS
Height 28.50 in. (724 mm)
Length 43.0 in. (1092 mm)
Width 44.0 in. (1118 mm)
Weight (Approx) 1100 lbs. (499 kg)
Air Requirements
Total (CFM) Approx. 2250 (637.2 m
3
/min)
Fuel Inlet Connection
Size 1/4" Inverted Flare
Recomended Fuel #1 or #2 Diesel
Battery Voltage 12 Volts
Battery AMP-HR
Minimum (2) SAE Group 2D-560 Cold Cranking Amps
Battery Ground Negative
RPM (At rated load 60 Hz) 1800
NOTE:
Metric values are shown in parentheses.
