MAINTAIN
THE FOLLOWING
MINIMUM
INSTALLATION
CLEARANCES:
1. Exhaust Pipe
to
Top
of
Compartment
- 2"
2.
Exhaust Pipe
to
Side
of
Compartment
-
3-1/2"
3. Top
of
Generator End
of
Set
to
Top
of
Compart-
'
ment
- 2"
4. Radiator Cap
to
Top
of
Compartment
-
2-1/2"
5. Drive Belt Guide
to
Compartment Door
- 0"
6.
Muffler
To
Side
of
Compartment
-
2-1/4"
7.
Muffler
To
Top
of
Compartment
- 1/4"
8. Rear
of
Engine (Above Generator)
To
Back
of
Compartment -1/2"
LOUVERED
METAL DOOR
• 264 SQ. IN.
MINIMUM
ENGINE COOLING
AIR
IN
GENERATOR COOLING
AIR
IN
ENTIRE SURFACE
MUST
BE
METAL

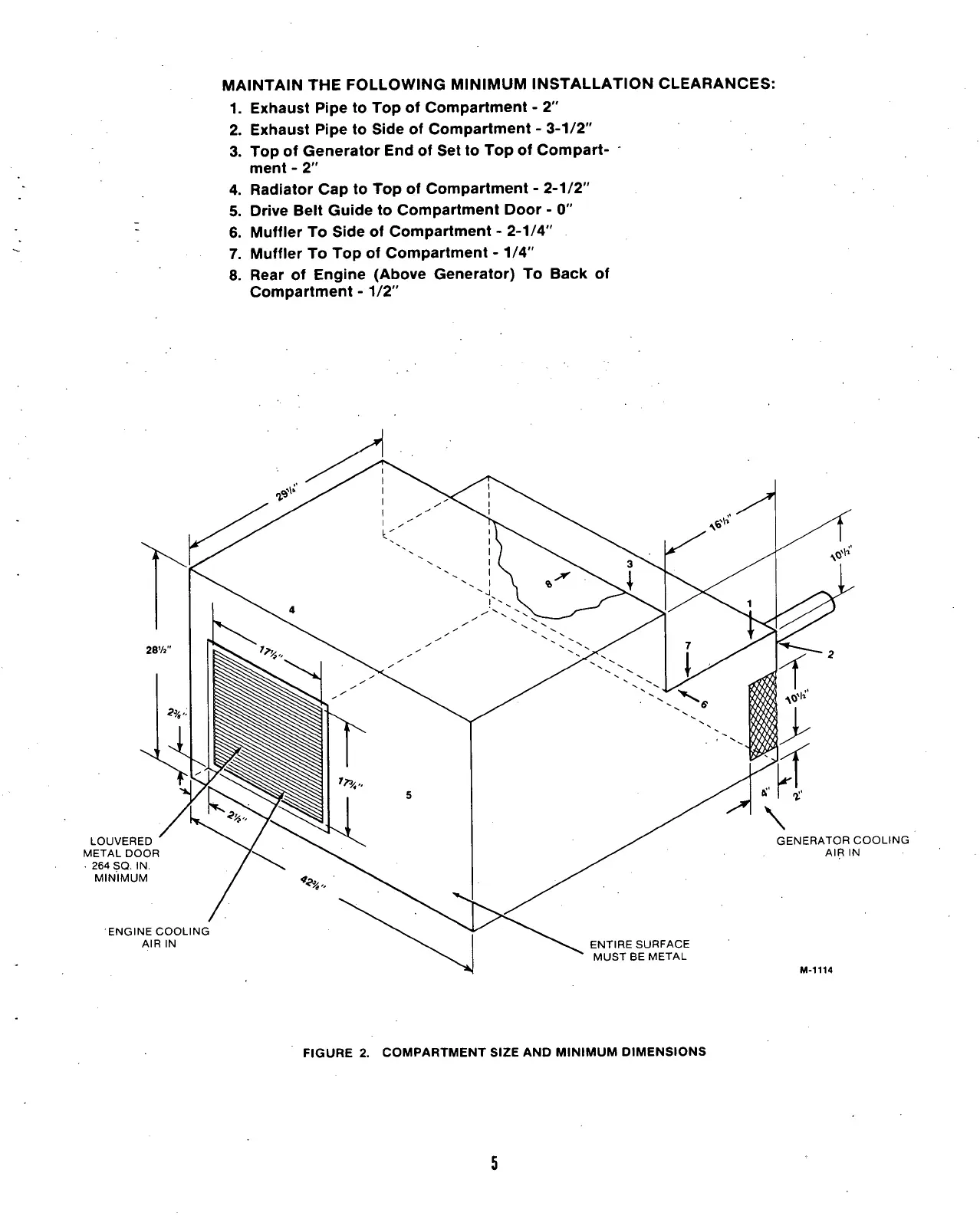

FIGURE
2. COMPARTMENT
SIZE
AND
MINIMUM
DIMENSIONS
