Onan 30.0 DEH-15R Series - Page 10

RUNNING TIME
METER
INDICATOR LAMPS
INDICATE UPPER AND LOWER SCALE
ON VOLTMETER AND AMMETER
DUAL RANGE
AC VOLTMETER
VOLTAGE
ADJUSTING
RHEOSTAT
PHASE SELECTOR SWITCH-
% TURN FASTENERS- TURN BOTH
SCREWS TO OPEN HINGED CONTROL
PANEL DOORS
PANEL LIGHT AND SWITCH
OIL PRESSURE
GAUGE
WATER TEMPERATURE
GAUGE
DC AMMETER
«UN-STOP-REMOTE SWITCH
(ALSO A RESET SWITCH FOR
ENGINE MONITOR)
FIELD CIRCUIT BREAKER FAULT LAMP

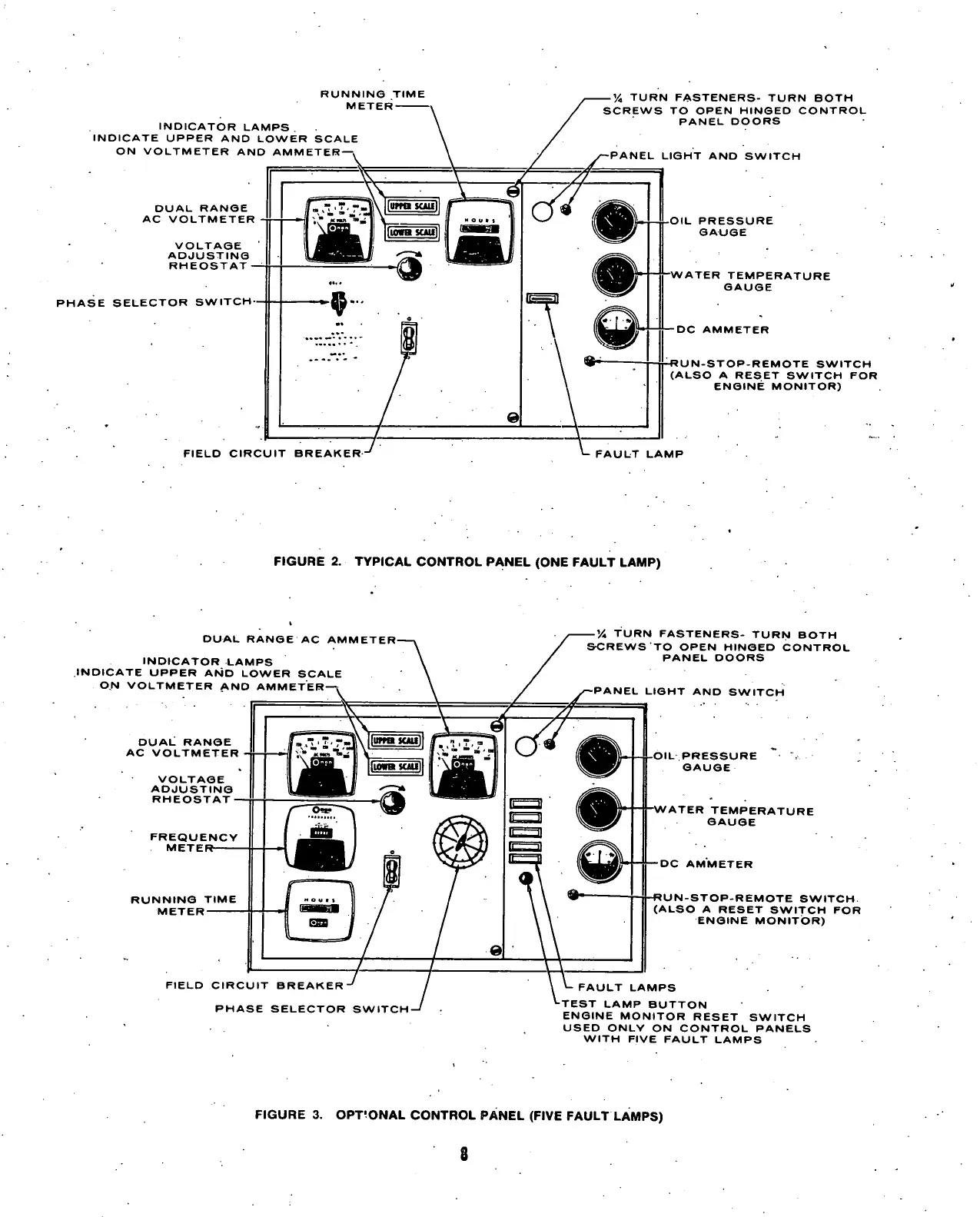

FIGURE 2. TYPICAL CONTROL PANEL (ONE FAULT LAMP)
DUAL RANGE AC AMMETER
INDICATOR LAMPS
INDICATE UPPER AND LOWER SCALE
O.N VOLTMETER AND AMMETER—.
DUAL RANGE
AC VOLTMETER
VOLTAGE
ADJUSTING
RHEOSTAT
FREQUENCY
METER
RUNNING TIME
METER
% TURN FASTENERS- TURN BOTH
SCREWS TO OPEN HINGED CONTROL
PANEL DOORS
PANEL LIGHT AND SWITCH
FIELD CIRCUIT BREAKER
PHASE SELECTOR SWITCH
OIL PRESSURE
GAUGE
ATER TEMPERATURE
GAUGE
DC AMMETER
UN-STOP-REMOTE SWITCH
(ALSO A RESET SWITCH FOR
ENGINE MONITOR)
FAULT LAMPS
TEST LAMP BUTTON
ENGINE MONITOR RESET SWITCH
USED ONLY ON CONTROL PANELS
WITH FIVE FAULT LAMPS
FIGURE 3. OPTIONAL CONTROL PANEL (FIVE FAULT LAMPS)
