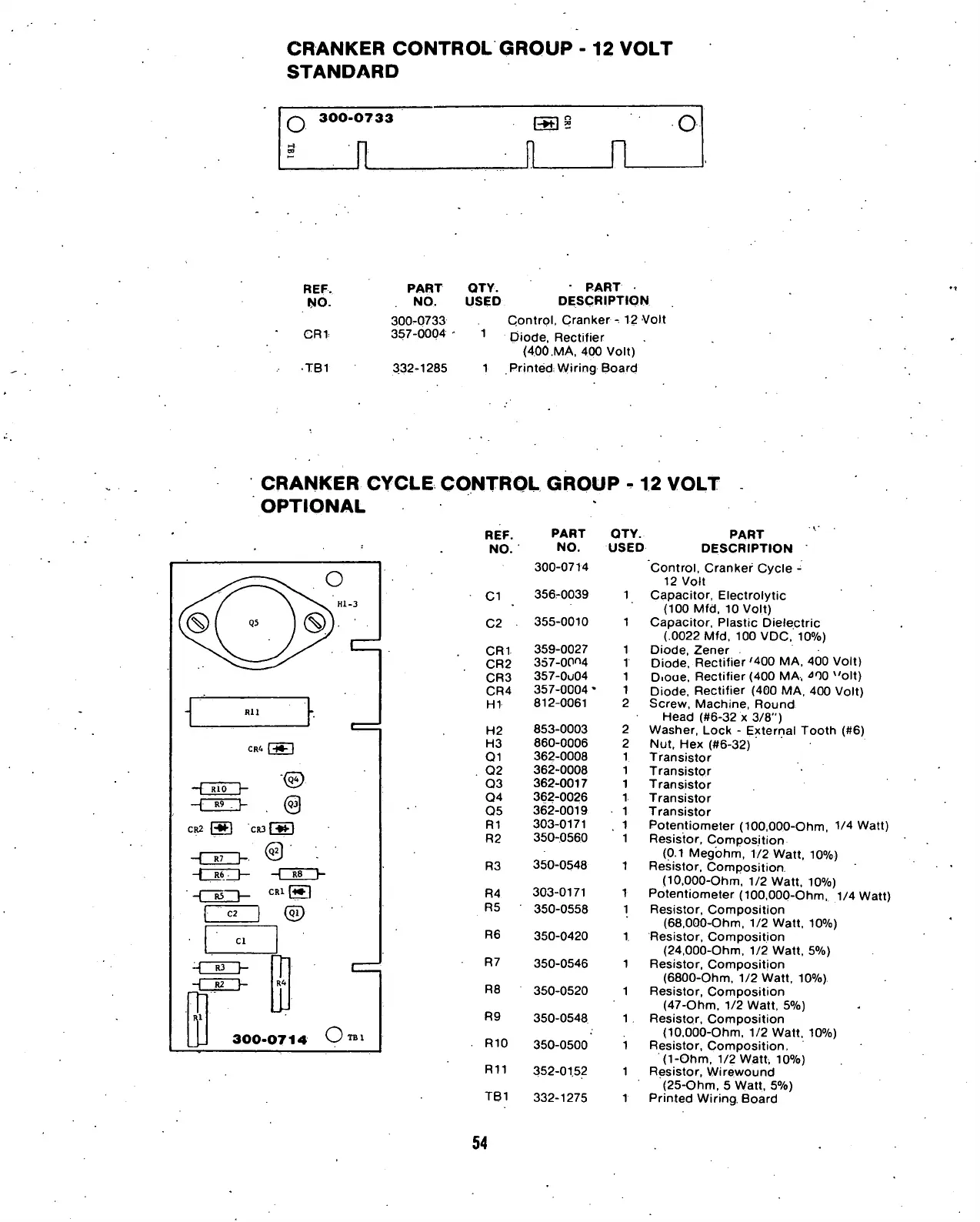

CRANKER CONTROL GROUP - 12 VOLT
STANDARD
o
300-0733
O
REF. PART QTY. • PART
NO. NO. USED DESCRIPTION
300-0733 Control, Cranker•-. 12 Volt
CRI 357-0004 - 1 Di
0de
Rectifier
(400.MA, 400 Volt)
•TBI 332-1285 1 . Printed Wiring Board
CRANKER CYCLE CONTROL GROUP - 12 VOLT
OPTIONAL
Hl-3
-onr>
CR2
CR3
HZIO-
-tZiO
-nr-v
Iv—
300-071
4 O TBI
REF.
PART
NO.
NO.
300-0714
Cl
356-0039
C2
355-0010
CRI
359-0027
CR2
357-0014
CR3
357-OU04
CR4
357-0004
HI
812-0061
H2
853-0003
H3
860-0006
Ql
362-0008
Q2
362-0008
Q3
362-0017
Q4
362-0026
Q5
362-0019
Rl
303-0171
R2
350-0560
R3
350-0548
R4
303-0171
R5
350-0558
R6
350-0420
R7
350-0546
R8
350-0520
R9
350-0548
R10
350-0500
Rll
352-01.52
TBI
332-1275
QTY. PART
USED DESCRIPTION
Control, Cranker Cycle -
12 Volt
1 Capacitor, Electrolytic
(100 Mfd, 10 Volt)
1 Capacitor, Plastic Dielectric
(.0022 Mfd, 100 VDC, 10%)
1 Diode, Zener .
1 Diode, Rectifier '400 MA, 400 Volt)
1 D.oae, Rectifier (400 MA, <!00
u
olt)
1 Diode, Rectifier (400 MA, 400 Volt)
2 Screw, Machine, Round
Head (#6-32 x 3/8")
2 Washer, Lock - External Tooth (#6)
2 Nut, Hex (#6-32)
Transistor
Transistor
Transistor
Transistor
Transistor
Potentiometer (100,000-Ohm, 1/4 Watt)
Resistor, Composition
(0.1 Megohm, 1/2 Watt, 10%)
Resistor, Composition
(10,000-Ohm, 1/2 Watt, 10%)
Potentiometer (100,000-Ohm, 1/4 Watt)
Resistor, Composition
(68,000-Ohm, 1/2 Watt, 10%)
Resistor, Composition
(24,000-Ohm, 1/2 Watt, 5%)
Resistor, Composition
(6800-Ohm, 1/2 Watt, 10%)
Resistor, Composition
(47-Ohm, 1/2 Watt, 5%)
Resistor, Composition
(10,000-Ohm, 1/2 Watt, 10%)
Resistor, Composition,
(1-Ohm, 1/2 Watt, 10%)
Resistor, Wirewound
(25-Ohm, 5 Watt, 5%)
Printed Wiring. Board
