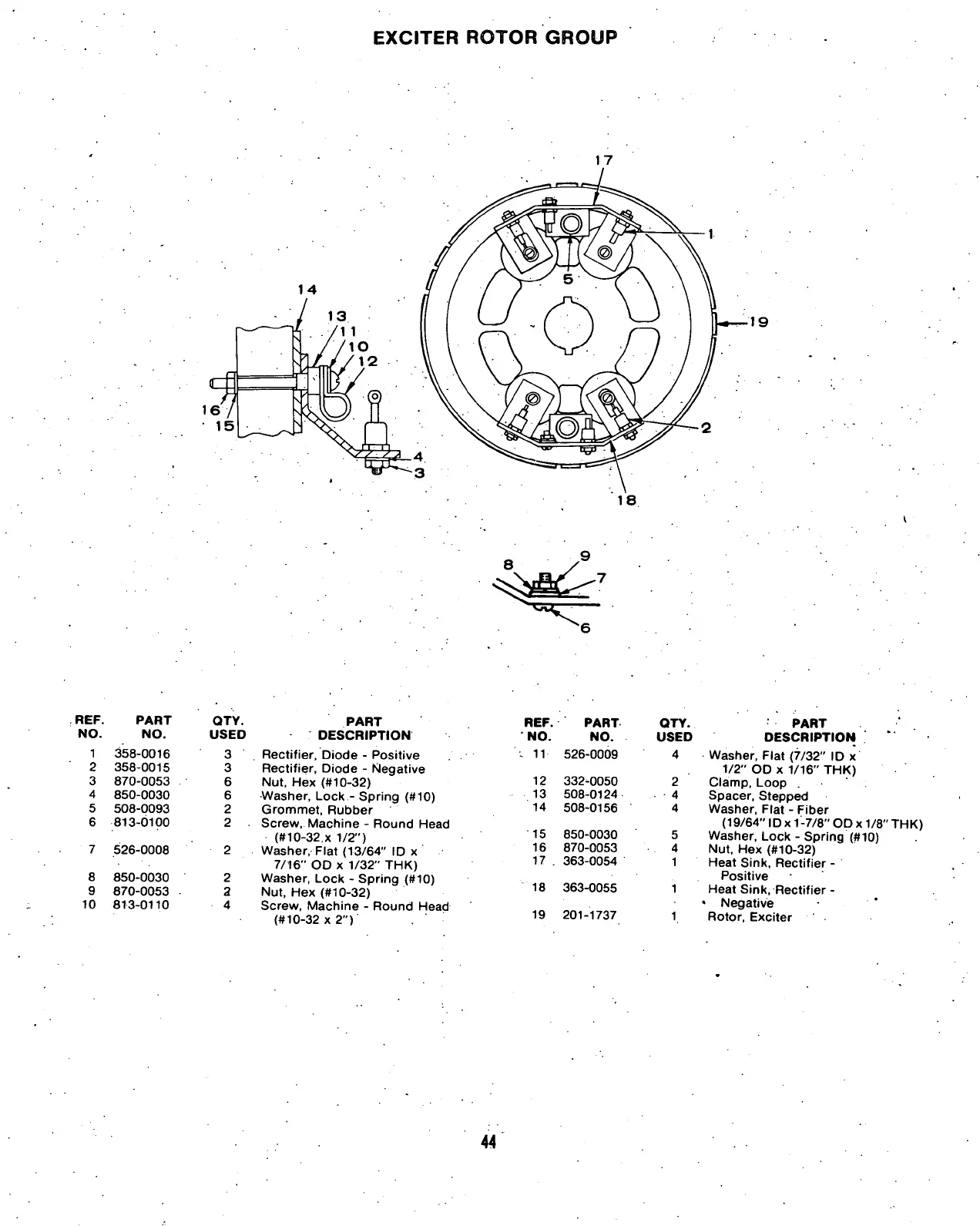

EXCITER ROTOR GROUP
-19
REF.
PART
QTY.
NO.
NO.
USED
1
358-0016
3
2
358-0015 3
3 870-0053
6
4
850-0030 6
5
508-0093 2
6
813-0100 2
7
526-0008
2
8
850-0030 2
9
870-0053 • 2
10
813-0110 4
PART
DESCRIPTION
Rectifier, Diode - Positive
Rectifier, Diode - Negative
Nut, Hex (#10-32)
•Washer, Lock - Spring (#10)
Grommet, Rubber
Screw, Machine - Round Head
(#10-32.x 1/2")
Washer, Flat (13/64" ID x
7/16" OD x 1/32" THK)
Washer, Lock - Spring (#10)
Nut, Hex (#10-32)
Screw, Machine - Round Head
(#10-32 x 2")
REF.
PART
QTY.
NO.
NO. USED
•.. 11
526-0009
4
12
332-0050 2
13 508-0124
• 4
14
508-0156
4
15
850-0030 5
16
870-0053 4
17 .
363-0054
1
18
363-0055 1
19
201-1737
1
PART
DESCRIPTION ' "
Washer, Flat (7/32" ID x
1/2" OD x 1/16" THK)
Clamp, Loop .
Spacer, Stepped
Washer, Flat - Fiber
(19/64" IDx 1-7/8" ODx 1/8"THK)
Washer, Lock - Spring (#10)
Nut, Hex (#10-32)
Heat Sink, Rectifier -
Positive
Heat Sink, Rectifier -
• Negative
Rotor, Exciter
44
