Onan 30.0 DEH-15R Series User Manual

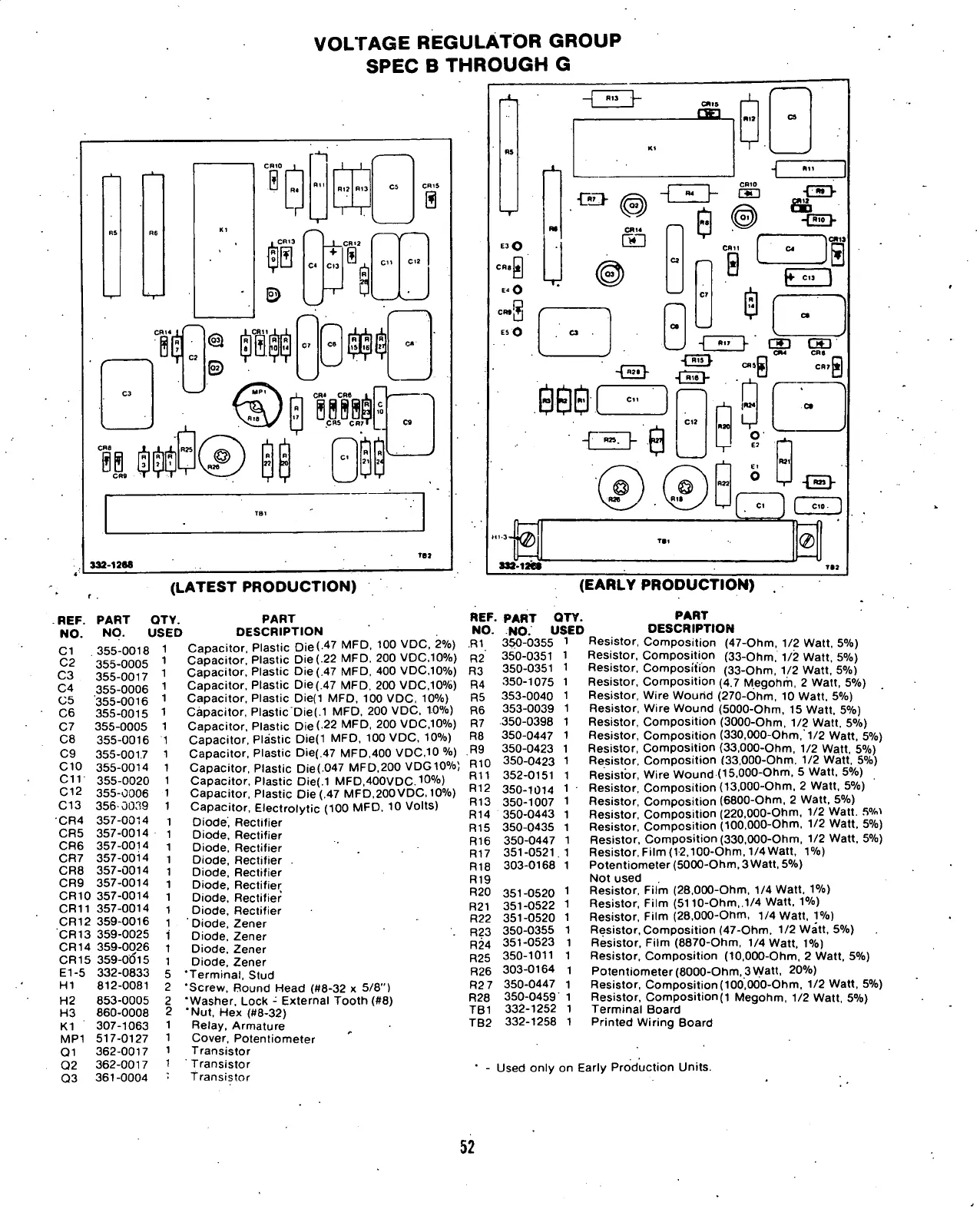

VOLTAGE REGULATOR GROUP
SPEC B THROUGH G
ffl
cms
1 1
C5
R12
C5
1 1.
C5
a
a
cna
f
332-1268
REF.
PART QTY.
NO.
NO. USED
Cl
355-0018
1
C2
355-0005
1
C3
355-0017
1
C4
355-0006
1
C5
355-0016
1
C6
355-0015
1
C7
355-0005
1
C8
355-0016
1
C9
355-0017
1
CIO
355-0014
1
Cll
355-0020
1
C12
355-0006
1
C13
356-0039
1
'CR4 357-0014
1
CRS
357-0014
1
CR6
357-0014
1
CR7
357-0014
1
CRS
357-0014
1
CR9
357-0014
1
CR10 357-0014
1
CR11
357-0014
1
CRI2 359-0016
1
CRI3 359-0025
i
CRI4 359-0026
i
CRI5 359-0015
i
El-5 332-0833
5
HI 812-0081
2
H2 853-0005
2
H3
860-0008
2
Kl 307-1063
1
MPI
517-0127
1
Ql
362-0017
1
Q2
362-0017
1
Q3
361-0004
•
-CE3- c^r
[_^_J [
c
'° 1
332-12e*
(LATEST PRODUCTION)
PART
DESCRIPTION
Capacitor, Plastic Die (.47 MFD, 100 VDC, 2%)
Capacitor, Plastic Die (.22 MFD, 200 VDC,10%)
Capacitor, Plastic Die (.47 MFD, 400 VDC,10%)
Capacitor, Plastic Die (.47 MFD, 200 VDC,10%)
Capacitor, Plastic Die(1 MFD, 100 VDC, 10%)
Capacitor, Plastic'Die(.1 MFD, 200 VDC, 1.0%)
Capacitor, Plastic Die ( 22 MFD, 200 VDC,10%)
Capacitor, Plastic Die(1 MFD, 100 VDC, 10%)
Capacitor, Plastic Die(.47 MFD,400 VDC.IO %)
Capacitor, Plastic Die(.047 MFD.200 VDG10%!
Capacitor, Plastic Die(.1 MFD,400VDC.10%)
Capacitor, Plastic Die (.47 MFD,200VDC, 10%)
Capacitor, Electrolytic (100 MFD, 10 Volts)
Diode, Rectifier
Diode, Rectifier
Diode, Rectifier .
Diode, Rectifier .
Diode, Rectifier
Diode, Rectifier
Diode, Rectifier
Diode, Rectifier
' Diode, Zener
Diode, Zener
Diode, Zener
Diode, Zener
'Terminal, Stud
•Screw, Round Head (#8-32 x 5/8")
'Washer, Lock - External Tooth (#8)
*Nut, Hex (#8-32)
Relay, Armature
Cover, Potentiometer
Transistor
Transistor
Transistor
REF.
PART QTY.
NO.
NO USED
Rl
350-0355
1
R2
350-0351
1
R3
350-0351
1
R4
350-1075
1
R5
353-0040
1
R6
353-0039
1
R7
350-0398
1
R8 350-0447
1
R9
350-0423
1
R10
350-0423
1
Rll 352-0151
1
R12
350-1014
1
R13
350-1007
1
R14
350-0443
1
R15
350-0435
1
R16
350-0447
1
R17
351-0521
1
R18
303-0168 1
R19
R20
351-0520
1
R21
351-0522
1
R22
351-0520
1
R23
350-0355 1
R24
351-0523
1
R25
350-1011
1
R26
303-0164
1
R2 7
350-0447
1
R28
350-0459 1
TBI
332-1252 1
TB2
332-1258
1
(EARLY PRODUCTION)
PART
DESCRIPTION
Resistor, Composition (47-Ohm, 1/2 Watt, 5%)
Resistor, Composition (33-Ohm, 1/2 Watt, 5%)
Resistor, Composition (33-Ohm, 1/2 Watt, 5%)
Resistor, Composition (4.7 Megohm, 2 Watt, 5%)
Resistor, Wire Wound (270-6hm, 10 Watt. 5%)
Resistor, Wire Wound (5000-Ohm, 15 Watt, 5%)
Resistor, Composition (3000-Ohm, 1/2 Watt, 5%)
Resistor, Composition (330,000-Ohm," 1/2 Watt, 5%)
Resistor, Composition (33,000-Ohm, 1/2 Watt, 5%)
Resistor, Composition (33,000-Ohm, 1/2 Watt, 5%)
Resistor, Wire Wound (15,000-Ohm. 5 Watt, 5%)
Resistor. Composition (13,000-Ohm, 2 Watt, 5%)
Resistor, Composition (6800-Ohm, 2 Watt, 5%)
Resistor, Composition (220,000-Ohm, 1/2 Watt. 5%i
Resistor, Composition (100,000-Ohm, 1/2 Watt, 5%)
Resistor, Composition (330,000-Ohm, 1/2 Watt, 5%)
Resistor, Film (12,100-Ohm, 1/4 Watt, 1%)
Potentiometer (5000-Ohm, 3 Watt, 5%)
Not used
Resistor, Film (28,000-Ohm, 1/4 Watt, 1%)
Resistor, Film (5110-Ohm,.1/4 Watt, 1%)
Resistor, Film (28,000-Ohm, 1/4 Watt, 1%)
Resistor, Composition (47-Ohm. 1/2 Watt, 5%)
Resistor, Film (8870-Ohm, 1/4 Watt, 1%)
Resistor, Composition (10,000-Ohm, 2 Watt, 5%)
Potentiometer (8000-Ohm, 3Watt, 20%)
Resistor, Composition(100,00b-Ohm, 1/2 Watt, 5%)
Resistor, Compositionji Megohm, 1/2 Watt, 5%)
Terminal Board
Printed Wiring Board
- Used only on Early Production Units.
52
