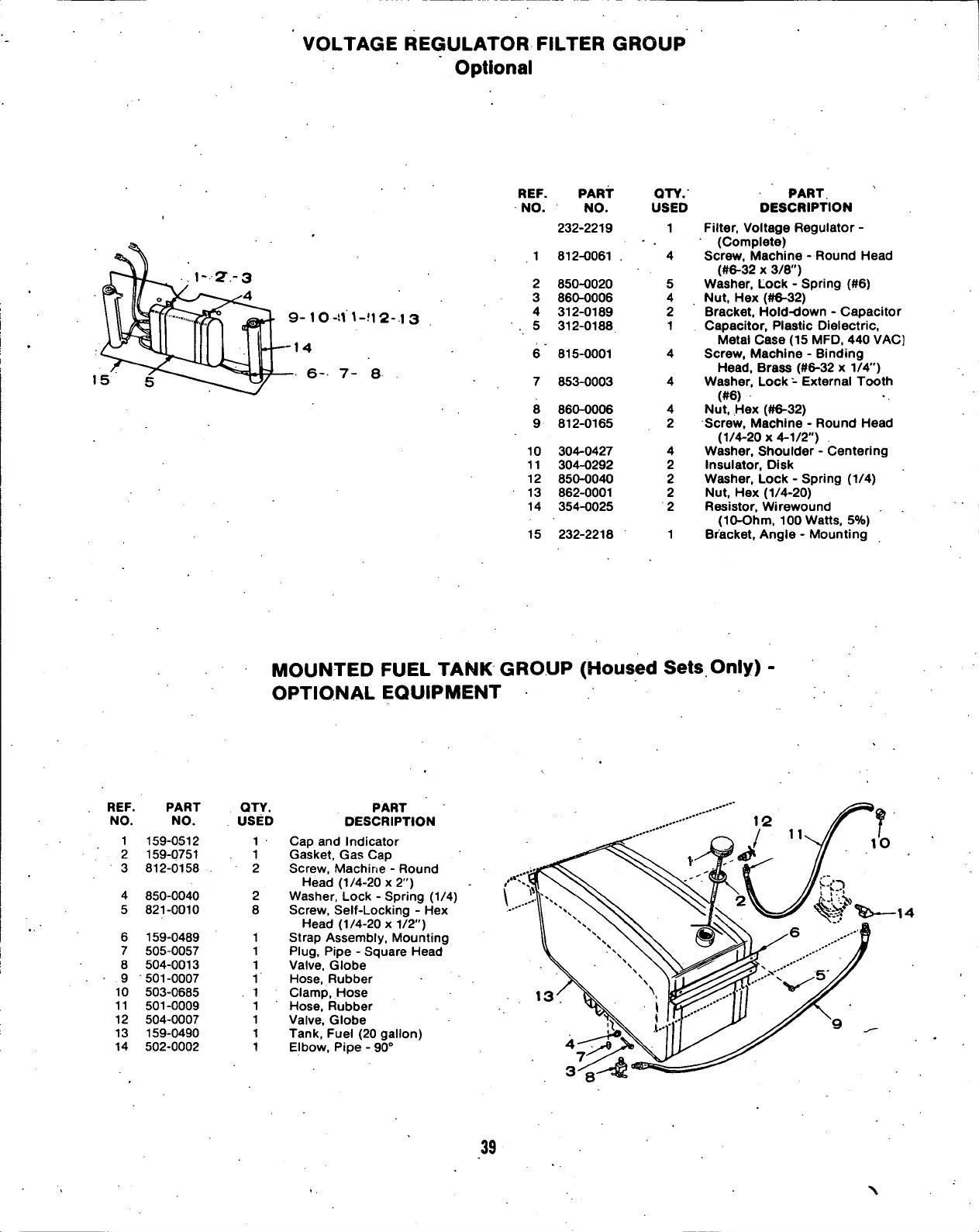

Onan 30.0 DEH-15R Series - Voltage Regulator Filter Group - Optional; Mounted Fuel Tank Group - Optional

VOLTAGE REGULATOR FILTER GROUP
Optional
REF. PART QTY.
PART
NO.
NO.
USED
DESCRIPTION
232-2219
1
Filter, Voltage Regulator -
- .
(Complete)
1
812-0061 .
4
Screw, Machine - Round Head
(#6-32 x 3/8")
2
850-0020
5 Washer, Lock - Spring (#6)
3
860-0006
4 Nut, Hex (#6-32)
4
312-0189
2
Bracket, Hold-down - Capacitor
. 5 312-0188
1
Capacitor, Plastic Dielectric,
Metal Case (15 MFD, 440 VAC)
6"
815-0001
4 Screw, Machine - Binding
Head, Brass (#6-32 x 1/4")
7
853-0003
4 Washer, Lock - External Tooth
(#6)
8 860-0006 4 Nut, Hex (#6-32)
9
812-0165 2 Screw, Machine - Round Head
(1/4-20x4-1/2")
10 304-0427 4 Washer, Shoulder - Centering
11
304-0292
2
Insulator, Disk
12
850-0040 2 Washer, Lock - Spring (1/4)
13 862-0001 2 Nut, Hex (1/4-20)
14 354-0025 2 Resistor, Wirewound
(10-Ohm, 100 Watts, 5%)
15 232-2218 1 Bracket, Angle - Mounting
MOUNTED FUEL TANK GROUP (Housed Sets Only) -
OPTIONAL EQUIPMENT
REF. PART QTY.
PART
NO.
NO. USED
DESCRIPTION
1
159-0512
1 Cap and Indicator
2
159-0751
1
Gasket, Gas Cap
3 812-0158 . 2
Screw, Machine - Round
Head (1/4-20 x 2")
4 850-0040 2 Washer, Lock - Spring (1/4)
5 821-0010 8
Screw, Self-Locking - Hex
Head (1/4-20 x 1/2")
6 159-0489 1
Strap Assembly, Mounting
7 505-0057 1
Plug, Pipe - Square Head
8 504-0013 1
Valve, Globe
9 501-0007 1
Hose, Rubber
10
503-0685
. 1
Clamp, Hose
11 501-0009 1
Hose, Rubber
12 504-0007 1
Valve, Globe
13 159-0490 1
Tank, Fuel (20 gallon)
14 502-0002 1 Elbow, Pipe - 90°
