DAY
TANK
Generator set installations may be equipped
with
an
optional separate fuel day tank. A
float
operated valve
controls
fuel flow into the fuel tank. The correct level
is
maintained to
assure
a constant
source
of fuel! It is
necessary
to install an overflow line between the day
tank and the main fuel tank. Refertothe installations
included
with
the tank. See Figure 14 for an example
of a day tank installation. Tank and
lines
must be
below level of injector pump return outlet.
FUEL PUMP
RETURN LINE
FUEL
PUMP
'DAY' TANK:
5 GAL. (20 litre)
MINIMUM CAPACITY
FUEL TRANSFER
PUMP - ELECTRIC
MOTOR DRIVE
LARGER *n
OVERFLOW"^
LINE
i|
ll
11
11
11
M
11
H
11
11
11
11
U
UNDERGROUND
FUEL TANK

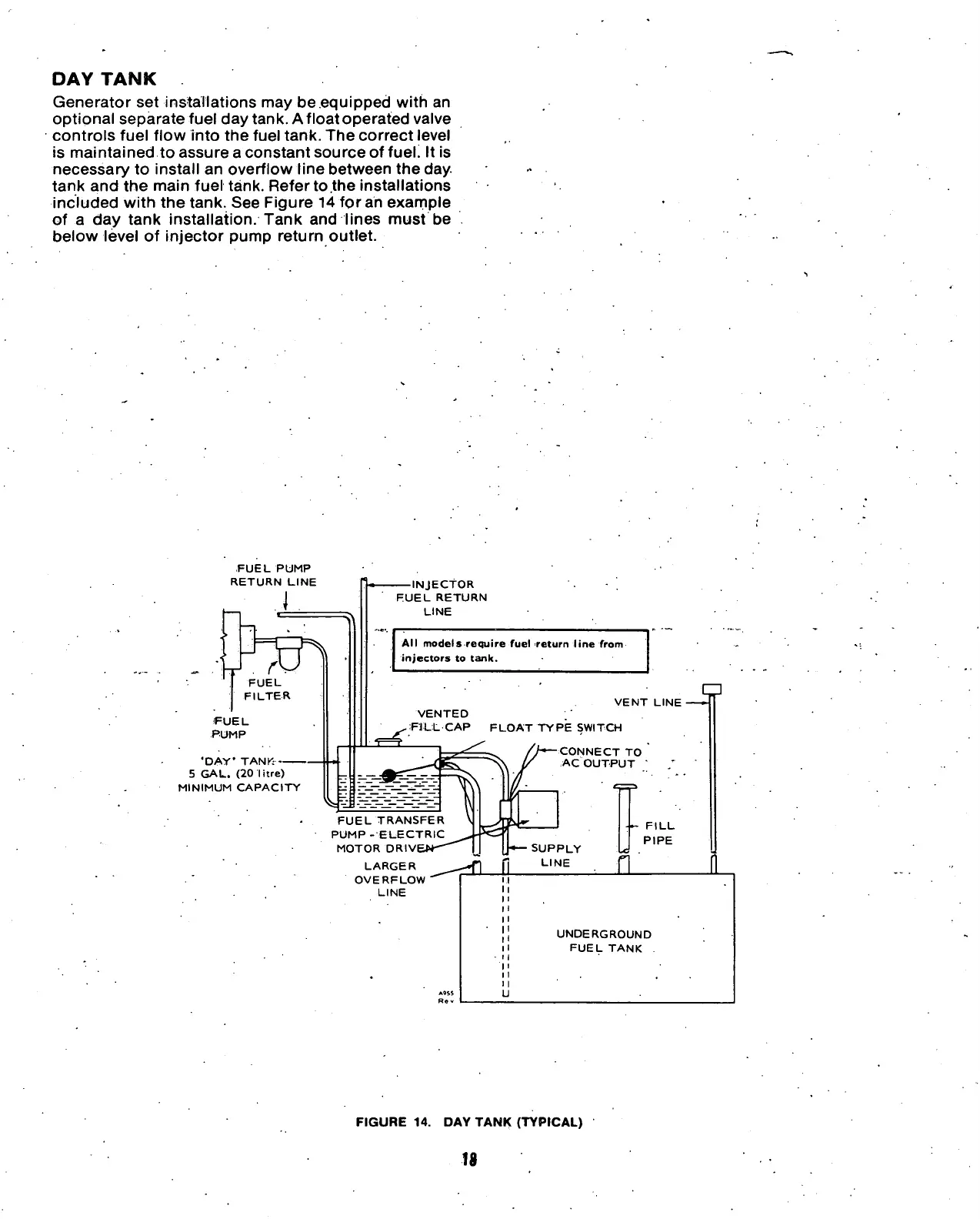

FIGURE
14. DAY TANK
(TYPICAL)
18
