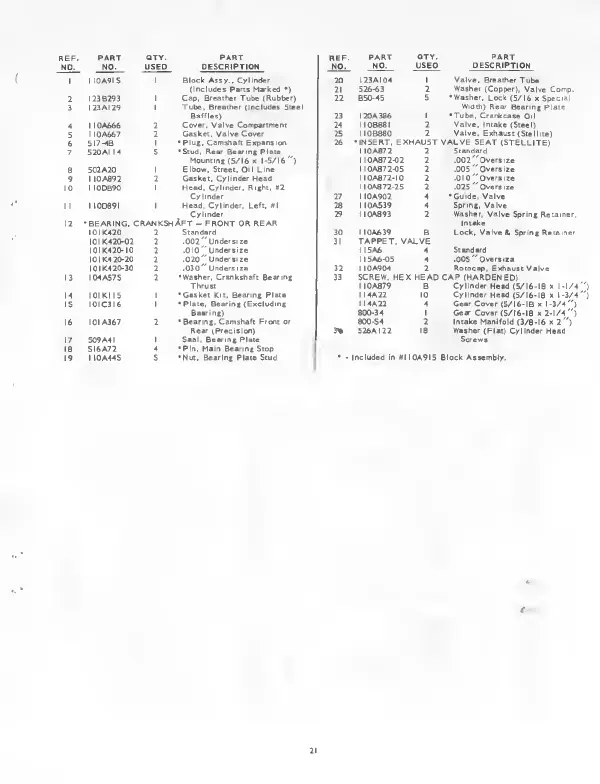

Onan CCK Series Operator's Manual And Parts Catalog

REF. PART QTY. PART
NO. NO. USED DESCRIPTION
1 II0A9I5 I Block Assy., Cylinder
(Includes Parts Marked ■ )
2 1236293 I Cap, Breather Tube (Rubber)
3 I23AI29 I Tube. Breather (Includes Steel
Baffles)
4 II0A666 2 Cover, Valve Compartment
5 II0A667 2 Gasket, Valve Cover
6 517-48 I *Plus. Camshaft Expansion
7 520AII4 S *Stud, Rear Bearing Plate
Mounting (5/16 X 1-5/16*')
8 502A20 I Elbow, Street. Oil Line
9 M0Ae92 2 Gasket. Cylinder Head
10 II0D890 I Head. Cylinder. Right. <f2
Cylinder
11 1100891 I Head. Cylinder. Left. #1
Cylinder
12 'BEARING. CRANKShAfT - FRONT OR REAR
IOIK420 2 Standard
I0IK420-02 2 .002 "undersize
IOIK420-iO 2 .010"Undersize
I0IK420-20 2 .020"Under$ize
I0IK420-30 2 .030"Undersize
13 I04A575 2 'Washer, Crankshaft Bearing
Thrust
14 lOIKIIS I 'Gasket Kit, Bearing Place
15 I0IC3I6 I 'Plate, Bearing (Excluding
Bearing)
16 I0IA367 2 'Bearing, Camshaft Front or
Rear ^precision)
17 S09A4I I Seal. Bearing Plate
18 SI6A72 4 'Pm. Main Bearing Stop
19 II0A445 S 'Nut. Bearing Place Stud
REF. PART OTY. PART
NO. NO. USED DESCRIPTION
20 123AI04 I Valve, Breather Tube
21 526-63 2 Washer (Copper). Valve Comp.
22 850-45 5 'Washer. Lock (5/16 x Special
Width) Rear Bearing Plate
23 I20A386 I 'Tube, Crankcase Oil
24 1108881 2 Valve, Intake (Steel)
25 II0B880 2 Valve, Exhaust (Stell ite)
26 'INSERT. EXHAUST VALVE SEAT (STELLITE)
II0AS72 2 Standard
IIOAa72-02 2 .002"0versize
IIOA872-OS 2 .005 "0versize
II0A872-I0 2 .OIO"Oversize
II0AB72-2S 2 .025" Overs Ize
27 nOA902 4 'Guide, Valve
28 II0A539 4 Spring, Valve
29 II0A893 2 Washer, Valve Spring Retainer.
30 II0A639 8 Lock. Valve & Spring Reca Iner
31 TAPPET. VALVE
I I5A6 4 Standard
II5A6-0S 4 .OOS"Oversize
32 II0A9O4 2 Rococap. Exhaust Valve
33 SCREW. HEX HEAD CAP (HARDENED)
II0A879 B Cylinder Head (5/16-18 x 1-1/4")
II4A22 10 Cylinder Head (5/16-18 x 1-3/4")
II4A22 4 Gear Cover (S/16-18 X 1-3/4")
800-34 I Geer Cover (5/16-18 X 2-1/4")
800-54 2 Intake Manifold (3/8-16 X 2")
3% 526AI22 18 Washer (Flat) Cylinder Head
Screws
* • Included In ffl 10A9I5 Block Assembly.
i
21

Onan CCK Series Specifications

General

Fuel Type	Gasoline
Fuel System	Carburetor
Frequency	60 Hz
RPM	1800 RPM
Starting System	Electric or Recoil
Starting Method	Electric or Recoil Start
Voltage	120/240V
Compression Ratio	6.5:1
Ignition System	Battery Ignition
Phase	Single-phase
