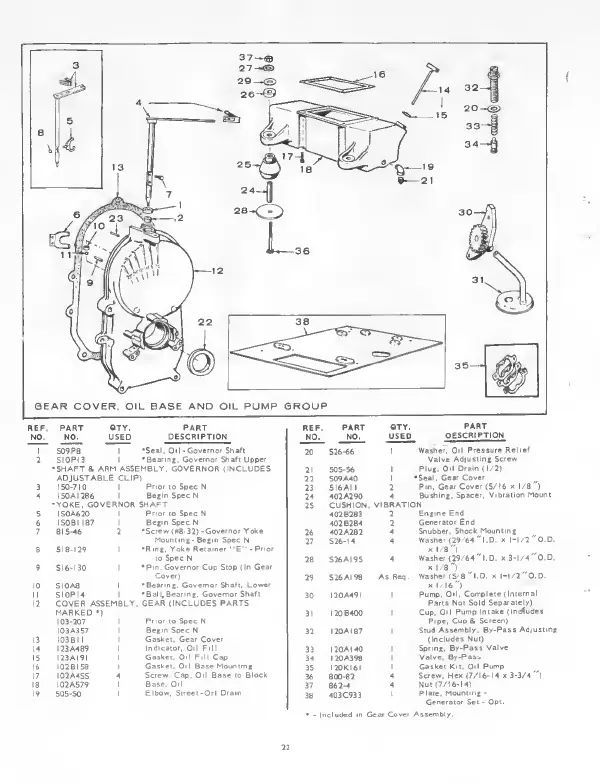

Onan CCK Series Operator's Manual And Parts Catalog

REF. PART STY. PART
NO, NO. USED DESCRIPTION
1 S09Pe I ‘Seal, Oil-Governor Shaft
2 5IOPI3 I ‘Bearing, Governor Shaft Upper
•SHAFT & ARM ASSEMBLY, GOVERNOR (INCLUDES
ADJUSTABLE CLIP)
3 150-710 I Prior to Spec N
4 I50AI286 I Begin Spec N
•YOKE, GOVERNOR SHAFT
5 I50A620 I prior to Spec N
6 I50BIIB7 I Begin Spec N
7 815-46 2 ‘Screvr (H8.32)-Governor Yoke
Mounting- Begin Spec N
S 516-129 I ’Ring, Yoke Retainer "E" - Prior
to Spec N
9 516-130 I * Pm, Governor Cup Stop < In Gear
Cover)
lO 5I0A8 I 'Bearing. Governor Shaft. Lower
M 5I0PI4 I *BalI,Bearing, Governor Shaft
12 COVER ASSEMBLY, GEAR (INCLUDES PARTS
MARKED •)
103-207 I Prior to Spec N
I03A357 I Begin Spec N
13 I03BII I Gasket. Gear Cover
14 I23A489 I Indicator. Oil Fill
15 I23AI9I I Gasket. O’l Fill Cap
16 I02BI58 I Gasket, Oil Base Mounting
17 I02A455 4 Screw. Cap, Oil Base to Block
18 I02A579 I Base. Oil
19 505-50 I Elbow. Street-Oil Dram
REF. PART QTY. PART
HO. NO. USED DESCRIPTION
20 526-66 I Washer. Oil Pressure Relief
Valve Adjusting Screw
21 505-56 I Plug. Oil Drain (1/2)
22 509A40 I ‘Seal, Gear Cover
23 5I6AII 2 Pin, Gear Cover (5/)6 X 1/8")
24 402A290 4 Bushing, Spacer, Vibration Mount
25 CUSHION, VIBRATION
4028283 2 Engine End
402B284 2 Generator End
26 402A282 4 Snubber. Shock Mounting
27 526-14 4 Washer (29'64 "l,D. X l-l/2'O.D.
X 1/8")
28 526AI95 4 Washer(29/64 l.D. x 3-1/4 O.D.
xl/8">
29 526AI99 AsReq. Washer (S/B l.D. x 1-1/2 O.D.
X 1/16")
30 I20A49I I Pump, Oil, Complete (Internal
Parts Not Sold Separate!/)
31 I20B400 I Cup. Oil Pump Intake (Ini^udes
Pipe, Cup & Screen)
32 I20AI87 I Stud AssembI/, By-Pass Adjusting
(Includes Nut)
33 I20AI40 I Spring. By-Pass Valve
34 i20A398 I Valve. By-Pasu
35 I20KI6I I Gasket Kit. Oil Pump
36 800-82 4 Screw, Hex (7/16-14 x 3-3/4 ")
37 862-4 4 Nut(7/I6-I4)
38 403C933 I Plate, Mounting-
Generator Set - Opt-
• - Included in Gear Cover Assembly.
22

Onan CCK Series Specifications

General

Fuel Type	Gasoline
Fuel System	Carburetor
Frequency	60 Hz
RPM	1800 RPM
Starting System	Electric or Recoil
Starting Method	Electric or Recoil Start
Voltage	120/240V
Compression Ratio	6.5:1
Ignition System	Battery Ignition
Phase	Single-phase
