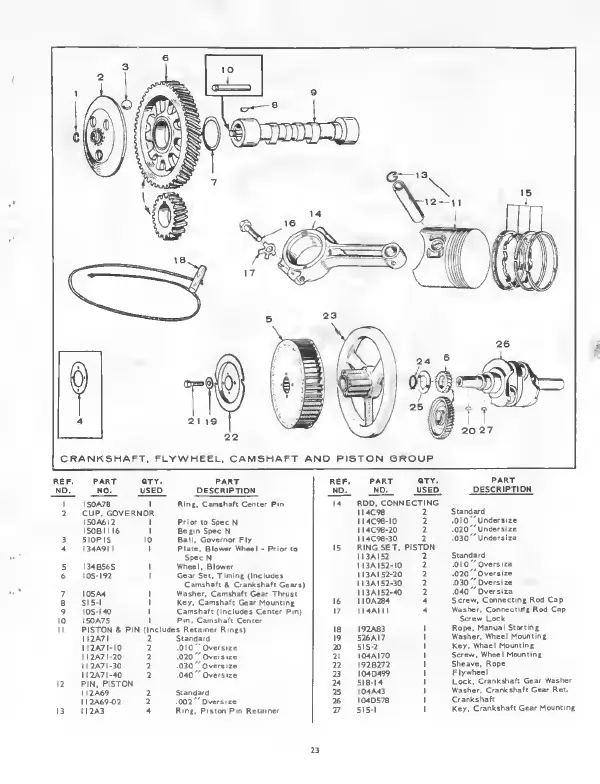

Onan CCK Series Operator's Manual And Parts Catalog

REF. PART QTY. PART
NO. NO. USED DESCRIPTION
1 IS0A78 I Rin|, Camshaft Center Pin
2 CUP. GOVERNOR
I50A6I2 I Prior to Spec N
IS0BIII6 I BetinSpecN
3 5I0PI5 10 Ball. Governor Fly
4 I34A9I I I Plate. Blower Wheel - Prior to
Spec N
5 I34B565 I Wheel. Blower
6 105-192 I Gear Set, Timint (Includes
Camshaft & Crankshaft Gears)
7 I05A4 I Washer, Camshaft Gear Thrust
8 515-1 I Key. Camshaft Gear Mounting
9 105-140 I Camshaft (Includes Center pin)
10 I50A75 I Pin, Camshaft Center
I I PISTON & PIN (Includes Retainer Rings)
I I2A7I 2 Standard
II2A7I-I0 2 .OIO"Oversize
II2A7I-20 2 .020"Over$ize
II2A7I-30 2 .030"Oversize
M2A7I-40 2 .040 ^’’Oversize
12 PIN, PISTON
II2A69 2 Standard
II2A69-02 2 .002"0verslze
13 II2A3 4 Ring, piston Pin Retainer
REF. PART QTV. PART
NO. NO. USED DESCRIPTION
14 ROD, CONNECTING
M4C98 2 Standard
ll4C9e-IO 2 .010 "undersize
ll4C9e-20 2 .020"Underslze
ll4C9e-30 2 .030"underslze
15 RING SET. PISTON
II3AIS2 2 Standard
II3AI52-I0 2 .OlO"Oversize
II3AI52-20 2 .020"Oversize
H3AI52-30 2 .030" Oversi ze
II3AIS2-40 2 .040"Oversize
16 II0A284 4 Screw, Connecting Rod Cap
17 ll4AHt 4 Washer. Connecting Rod Cap
Screw Lock
IB I92A83 I Rope. Manual Starting
19 526AI7 I Washer. Wheel Mounting
20 515-2 I Key, Wheel Mounting
21 I04AI70 I Screw, Wheel Mounting
22 I92B272 I Sheave, Rope
23 1040499 I Flywheel
24 518-14 I Lock, Crankshaft Gear Washer
25 I04A43 I Washer, Crankshaft Gear Ret.
26 I04DS78 I Crankshaft
27 515-1 I Key. Crankshaft Gear Mounting
i
23

Onan CCK Series Specifications

General

Fuel Type	Gasoline
Fuel System	Carburetor
Frequency	60 Hz
RPM	1800 RPM
Starting System	Electric or Recoil
Starting Method	Electric or Recoil Start
Voltage	120/240V
Compression Ratio	6.5:1
Ignition System	Battery Ignition
Phase	Single-phase
