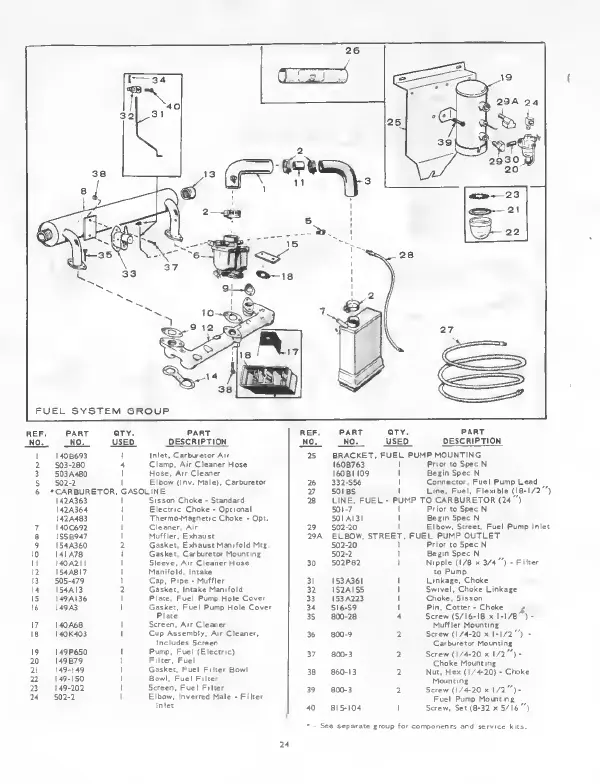

Onan CCK Series Operator's Manual And Parts Catalog

REF. PART QTY. PART
NO. NO. USED DESCRIPTION
1 1^8693 I inlet, Carburetor Air
2 503-280 4 Clamp. Air Cleaner Hose
3 503A480 I Hose, Air Cleaner
5 502-2 I Elbow (Inv. Male), Carburetor
6 ‘CARBUReTOR. GASOLINE
I42A363 I Sisson Choke - Standard
I42A364 I Electric Choke • Optional
I42A483 I Thermo-Magnetic Choke - Opt.
7 I40C692 I Cleaner, Air
8 I55B947 I Muffler, Exhaust
9 I54A360 2 Gasket. Exhaust Manifold Mtg.
10 I4IA78 I Gasket. Carburetor Mounting
11 I40A2II I Sleeve, Air Cleaner Hose
12 I54A8I7 I Manifold, Intake
13 505-479 I Cap, Pipe - Muffler
14 I54AI3 2 Gasket, Intake Manifold
15 l49Ai36 I Plate. Fuel Pump Hole Cover
16 I49A3 I Gasket, Fuel Pump Hole Cover
Plate
17 I40A68 I Screen, Air Cleaner
18 I40K403 I Cup Assembly, Air Cleaner.
Includes Screen
19 I49P650 I Pump. Fuel (Electric)
20 I49B79 I Filter, Fuel
21 149-149 I Gasket, Fuel Filler Bowl
22 149-150 I Bowl, Fuel Filter
23 1 49-202 I Screen, Fuel Filter
24 502-2 I Elbow. Inverted Male - Filter
REF. PART OTY. PART
NO. NO. USED DESCRIPTION
25 BRACKET. FUEL PUMP MOUNTING
I60B763 I Prior to Spec N
l60Bn09 I Begin Spec N
26 332-556 I Connector, Fuel Pump Lead
27 50IBS I Line, Fuel. Flexible (18-1/2")
28 LINE. FUEL • PUMP TO CARBURETOR (24 ")
501- 7 I Prior to Spec N
50IAI3I I BeginSpecN
29 502-20 I Elbow. Street. Fuel Pump Inlet
29A ELBOW, STREET, FUEL PUMP OUTLET
502- 20 I Prior to Spec N
502-2 I Begin Spec N
30 S02Pe2 I Nipple (1/8 X 3/4") ■ Filter
to Pump
31 IS3A36I I Linkage. Choke
32 I52AI5S I Swivel, Choke Linkage
33 I53A223 I Choke. Sisson
34 516-59 I Pin. Cotter - Choke t
35 800-28 4 Screw (5/16-18 X l-l/e )-
Muffler Mounting
36 800-9 2 Screw (1/4-20 X 1-1/2") -
Carburetor Mounting
37 800-3 2 Screw (I /4-20 x t /2 ") -
Choke Mounting
38 860-13 2 Nut. Hex (1/4-20) - Choke
Mounting
39 800-3 2 Screw(i/4-20 X 1/2")-
Fuel Pump Moulting
40 815-104 I Screw. Set (8-32 X 5/16")
* - See separate group for components and service kits.
24

Onan CCK Series Specifications

General

Fuel Type	Gasoline
Fuel System	Carburetor
Frequency	60 Hz
RPM	1800 RPM
Starting System	Electric or Recoil
Starting Method	Electric or Recoil Start
Voltage	120/240V
Compression Ratio	6.5:1
Ignition System	Battery Ignition
Phase	Single-phase
