Onan CCK Series Operator's Manual And Parts Catalog

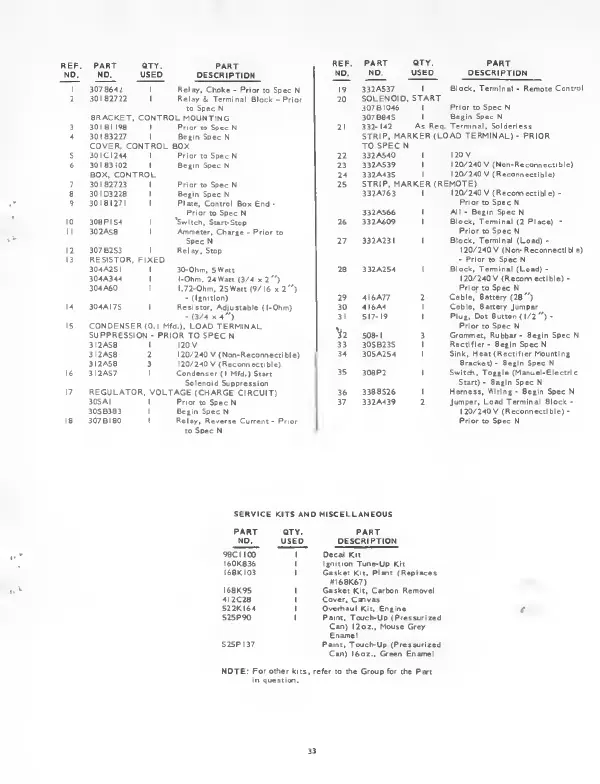

REF. PART QTY. PART
NO. NO. USED OESCRIPTIOH
1 307B64'2 I Relay. Chske - Prior to Spec N
2 30IB2722 I Relay & Terminal Block-Prior
to Spec N
BRACKET, CONTROL MOUNTING
3 30IBII98 I Prior to Spec N
4 30IB3227 I Begin Spec N
COVER. CONTROL BOX
5 30ICI244 I Prior to Spec N
6 30IB3I02 I Begin Spec N
BOX. CONTROL
7 30IB2723 I Prior to Spec N
8 30103228 1 Begin Spec N
9 30IBI27I I Plate. Control Box End-
Prior to Spec N
10 30aPIS4 I ’Switch. Start-Stop
I I 302A58 I Ammeter. Charge - Prior to
Spec N
12 307B2S3 I Relay. Stop
13 RESISTOR. FIXED
304A2SI I 30-0hm. SWatt
304A344 I l-Ohm. 24Watt (3/4 X 2")
304A60 I 1.72-Ohm. 25 Watt (9/16 X 2")
• (Ignition)
14 304AI75 t Resistor, Adjustable (l-Ohm)
• (3/4 X 4")
15 CONDENSER (0.1 Mfd.). LOAD TERMINAL
SUPPRESSION - PRIOR TO SPEC N
3I2A58 I 120V
3 I2A58 2 120/240 V (Non-Reconnectible)
3I2A5B 3 i 20/240V (Reconnectible)
16 3I2A57 I Condenser (I Mfd.) Start
Solenoid Suppression
17 REGULATOR. VOLTAGE (CHARGE CIRCUIT)
305AI I Prior to Spec N
30SB383 I Begin Spec N
18 307 6180 I Relay, Reverse Current* Prior
to Spec N
REF.
NO.
20
22
23
24
25
26
27
28
29
30
33
34
35
36
37
PART QTY. PART
MO. USED DESCRIPTION
332A537 I Block. Terminal - Remote Control
SOLENOID. START
307BI046 I Prior to Spec N
307B845 I Begin Spec N
332-142 As Req. Terminal, Solderless
STRIP. MARKER (LOAD TERMINAL) - PRIOR
TO SPEC N
332A540 I 120 V
332AS39 I I20/240V (Non-Reconnectible)
332A435 I 120/240 V (Reconnectible)
STRIP. MARKER (REMOTE)
333A763 I 120/240 V (Reconnectibl e)-
Prior to Spec N
332AS66 I All - Begin Spec N
332A609 I Block. Terminal (2 Place) ■
Prior to Spec N
332A23I I Block. Terminal (Lead)-
120/240V (Non-Reconnectible)
- Prior to Spec N
332A254 I 6lock,Terminal(Load)-
I20/240V (Reconnectible) -
Prior to Spec N
4I6A77 2 Cable. Battery (28")
4I6A4 I Cable, Battery Jumper
517-19 I Plug, Dot Bottan (1/2")-
Prior to Spec N
508-1 3 Grommet, Rubber - Begin Spec N
30SB23S I Rectifier - Begin Spec N
30SA254 I Sink, Heat (Rectifier Mounting
Bracket) - Begin Spec N
308P2 1 Swltdt, Toggle (Manual-Electric
Start) - Begin Spec N
338BS26 I Harness, Wiring • Begin Spec N
332A439 2 Jumper, Load Terminal Block -
I20/240V (Reconnectible) •
Prior to Spec N
SERVICE KITS AND MISCELLANEOUS
PART QTY. PART
NO. USED DESCRIPTION
98CIIOO I Decal Kit
I60K836 I Ignition Tune-Up Kit
I68KI03 I Gasket Kit. Plant (Replaces
#I68K:67)
I68K95 I Gasket Kit. Carbon Removal
4I2C28 I Cover. Caivaa
S22KI64 I Overhaul Kit. Engine
S25P90 I Paint. Touch-Up (Pressurized
Can) l2oz.. Mouse Grey
Enamel
525PI37 Paint. Toucl^Up (Pressurized
Can) l6oz., Green Enamel
NOTE: For other kits, refer to the Group for the Part
(
33

Onan CCK Series Specifications

General

Fuel Type	Gasoline
Fuel System	Carburetor
Frequency	60 Hz
RPM	1800 RPM
Starting System	Electric or Recoil
Starting Method	Electric or Recoil Start
Voltage	120/240V
Compression Ratio	6.5:1
Ignition System	Battery Ignition
Phase	Single-phase
