4. Back off from “fast*’ position on throttle control
arm until inner cables moves forward about 1/16
inch (1.59 mm).
5. Hold the swivel plate against the stop edge and
tighten the swivel screw. Recheck to see if control
pulls swivel plate against the base plate.
6. With engine running, loosen stud adjusting nuts
and turn toward spring (left) to increase or away
from spring (right) to decrease the high speed.
Tighten nuts and check speed.
7. Top speed atno load should be3850 (± 100) rpm.
THESE TWO SURFACES SHOULD
TOUCH WHEN THROTTLE IS IN
FULL SPEED POSITION
^ LOW SPEED
ft^ADJUSTMENT
Use 90° pliers io avoid
bending plate when rein - |
stalling cable clip.
SWIVEL PLATE
GOVERNOR
SPRING
NOTE: HOLE IN STUD
SHOULD BE HORIZONTAL

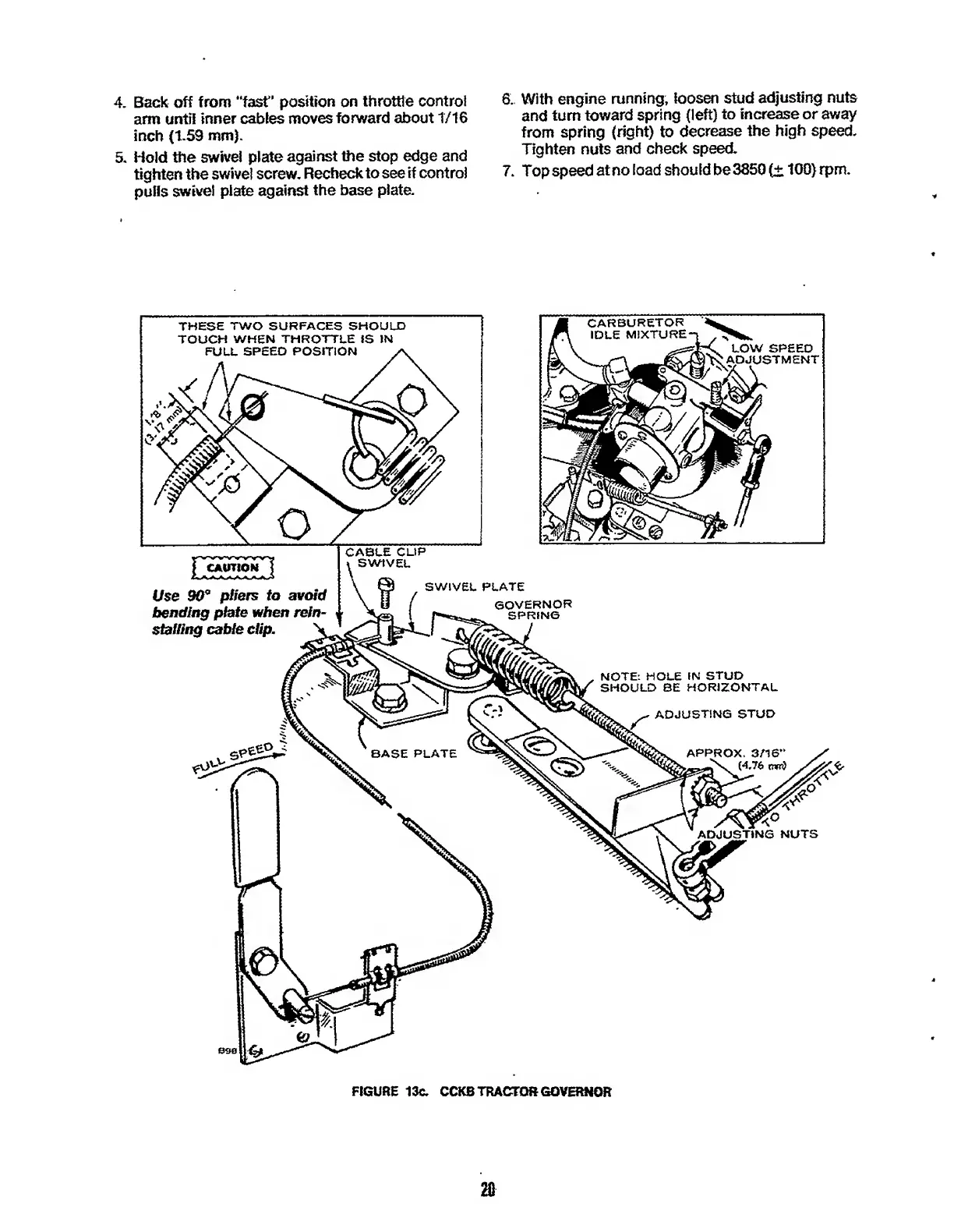

FIGURE 13c. CCK3 TRACTOR GOVERNOR
28

Onan CCK Specifications

General

Cylinders	2
Ignition System	Battery ignition
Fuel Type	Gasoline
Cooling System	Air-cooled
Fuel System	Carburetor
Starter	Electric
Governor	Mechanical
Max RPM	1800 RPM
Engine Type	4-cycle
Bore and Stroke	3.25 x 3.625 inches (82.55 x 92.08 mm)
