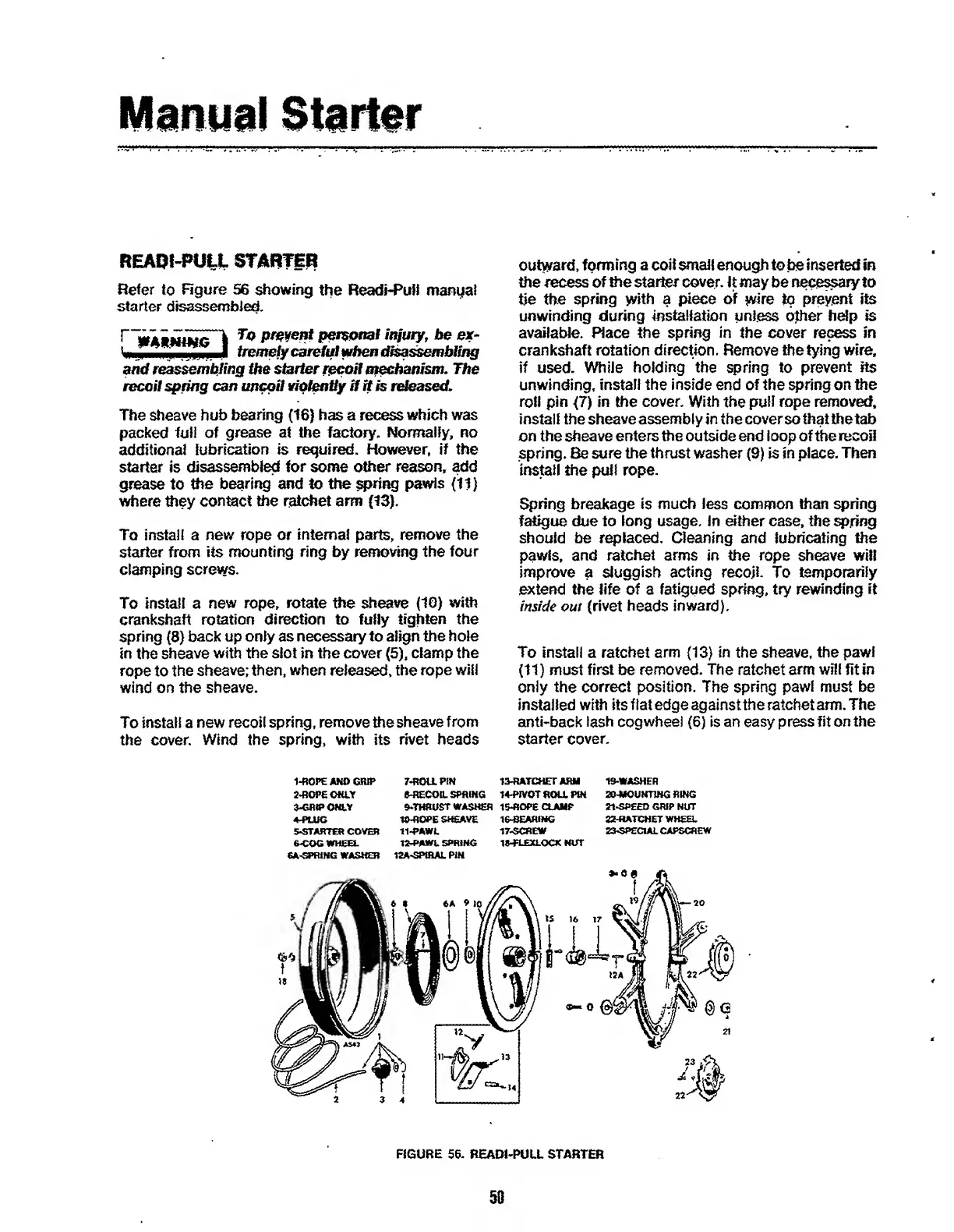

Manual
Starter
REAQi-PULL
STARTER
Refer
to
figure
56
showing
the
Readi-Pufl
manga!
starter
disassembled.
f
I
70
prevent
personal
injury,
be
ex~
WpmmmpwpihmJ
tremeiy
careful
when
disassembling
and
reassembling
the
starter
recoil
mechanism.
The
recoil
spring
can
uncoil
violently
if
it
is
released.
The
sheave
hub
bearing
(16)
has
a
recess
which
was
packed
full
of
grease
at
the
factory.
Normally,
no
additional
lubrication
is
required.
However,
if
the
starter
is
disassembled
for
some
other
reason,
add
grease
to
the
bearing
and
to
the
spring
pawls
(11)
where
they
contact
die
ratchet
arm
(13).
To
install
a
new
rope
or
internal
parts,
remove
the
starter
from
its
mounting
ring
by
removing
the
four
clamping
screws.
To
install
a
new
rope,
rotate
the
sheave
(10)
with
crankshaft
rotation
direction
to
fully
tighten
the
spring
(8)
back
up
only
as
necessary
to
align
the
hole
in
the
sheave
with
the
slot
in
the
cover
(5),
clamp
the
rope
to
the
sheave;
then,
when
released,
the
rope
will
wind
on
the
sheave.
To
install
a
new
recoil
spring,
remove
the
sheave
from
the
cover.
Wind
the
spring,
with
its
rivet
heads
outward,
forming
a
coil
small
enough
to
be
inserted
in
the
recess
of
the
starter
cover.
It
may
be
necessary
to
tie
the
spring
with
a
piece
of
wire
to
prevent
its
unwinding
during
installation
unless
other
help
is
available.
Race
the
spring
in
the
cover
recess
in
crankshaft
rotation
direction.
Remove
the
tying
wire,
if
used.
While
holding
the
spring
to
prevent
its
unwinding,
install
the
inside
end
of
the
spring
on
the
roll
pin
(7)
in
the
cover.
With
the
pull
rope
removed,
install
the
sheave
assembly
in
the
cover
so
that
the
tab
on
the
sheave
enters
the
outside
end
loop
of
the
recoil
spring.
Be
sure
the
thrust
washer
(9)
is
in
place.
Then
install
the
pull
rope.
Spring
breakage
is
much
less
common
than
spring
fatigue
due
to
long
usage.
In
either
case,
the
spring
should
be
replaced.
Cleaning
and
lubricating
the
pawls,
and
ratchet
arms
in
the
rope
sheave
will
improve
a
sluggish
acting
recoil.
To
temporarily
.extend
the
life
of
a
fatigued
spring,
try
rewinding
it
inside
out
(rivet
heads
inward).
To
install
a
ratchet
arm
(13)
in
the
sheave,
the
pawl
(11)
must
first
be
removed.
The
ratchet
arm
will
fit
in
only
the
correct
position.
The
spring
pawl
must
be
installed
with
its
fiat
edge
against
the
ratchet
arm.
The
anti-back
lash
cogwheel
(6)
is
an
easy
press
fit
on
the
starter
cover.
1-
ROPE
AND
GRIP
2-
ROPE
ORLY
3-
GRIP
ONLY
4-
PLUG
5-
STARTER
COVER
6-
COGWHEEL
GA-SPRfNG
WASHER
7-
ROLL
PIN
8-
RECOIL
SPRING
9-
THRUST
WASHER
10-
ROPE
SHEAVE
11-
PAWL
12-
PAWL
SPRING
12A-SPIRAL
PIN
13-
RATCHET
ARK
14-
PIVOT
ROLL
PIN
15-
ROPE
CLAMP
16-
BEARING
17-
SCREW
18-
FLEXLOCK
NUT
19-WASHER
SO-MOUNTING
RING
21-
SPEED
GRIP
NUT
22-
RATCHET
WHEEL
23-
SPECIAL
CAPSCREW
FIGURE
56.
READI-PULL
STARTER
50
