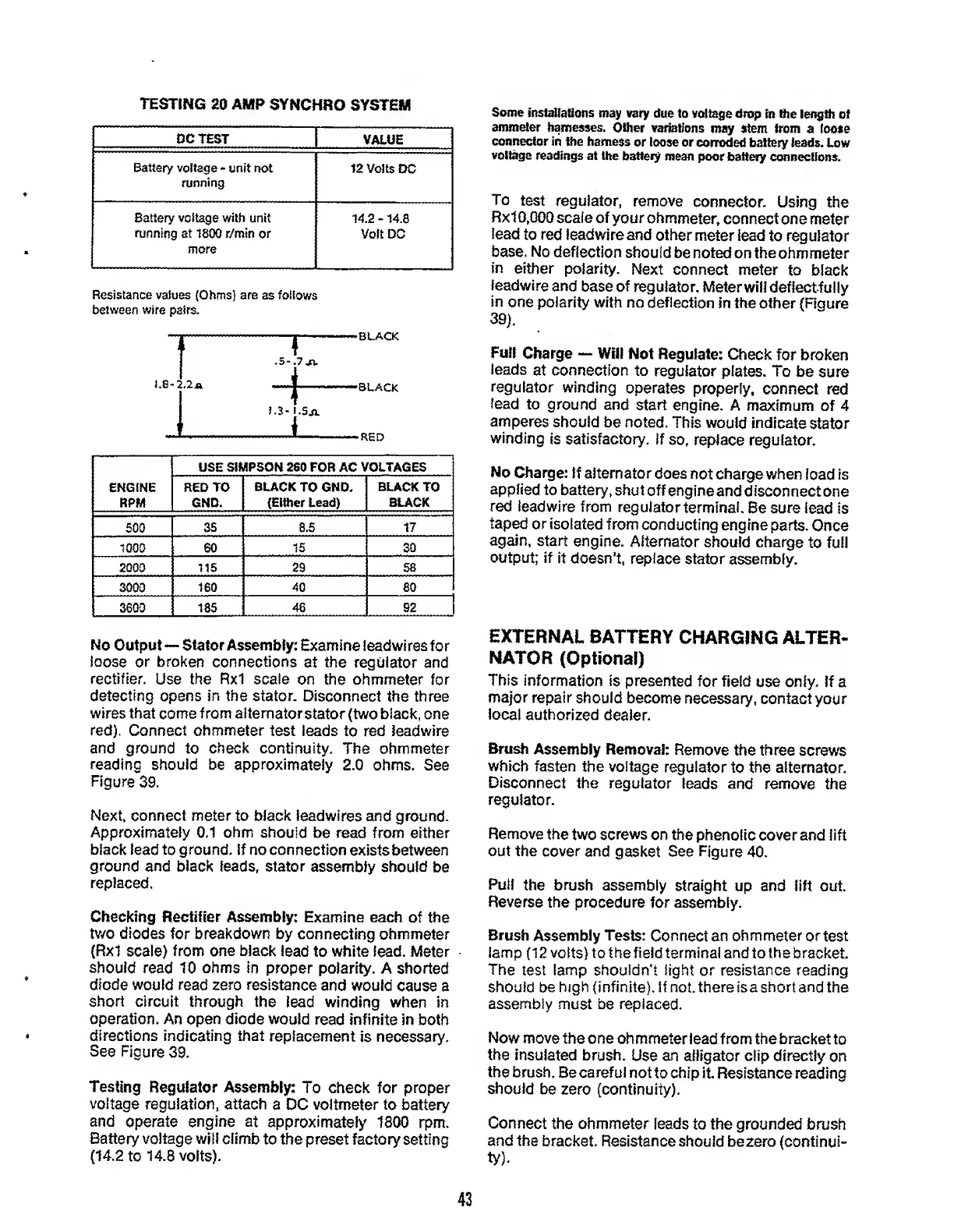

TESTING
20
AMP
SYNCHRO
SYSTEM
DC
TEST
VALUE
Battery
voltage
-
unit
not
running
12
Volts
DC
Battery
voltage
with
unit
running
at
1800
r/min
or
more
14.2
-14.8
Volt
DC
Resistance
values
{Ohms}
are
as
follows
between
wire
pairs.
•BLACK
.5-
.7
sl
J.
8
-
2.2*
L3-
L5jy
'BLACK
R
ED
ENGINE
RPM
USE
SIMPSON
260
FOR
AC
VOLTAGES
RED
TO
GND.
BLACK
TO
GND.
(Elmer
Lead)
BLACK
TO
BLACK
500
35
8.5
17
1000
60
15
30
2000
115
29
58
3000
160
40
80
3600
185
46
92
No
Output—Stator
Assembly:
Examine
lead
wires
for
loose
or
broken
connections
at
the
regulator
and
rectifier.
Use
the
Rxl
scale
on
the
ohmmeter
for
detecting
opens
in
the
stator.
Disconnect
the
three
wires
that
come
from
alternator
stator
(two
black,
one
red).
Connect
ohmmeter
test
leads
to
red
Jeadwire
and
ground
to
check
continuity.
The
ohmmeter
reading
should
be
approximately
2.0
ohms.
See
Figure
39.
Next,
connect
meter
to
black
leadwires
and
ground.
Approximately
0.1
ohm
should
be
read
from
either
black
lead
to
ground.
If
no
connection
exists
between
ground
and
black
leads,
stator
assembly
should
be
replaced.
Checking
Rectifier
Assembly:
Examine
each
of
the
two
diodes
for
breakdown
by
connecting
ohmmeter
{Rxl
scale)
from
one
black
lead
to
white
lead.
Meter
should
read
10
ohms
in
proper
polarity.
A
shorted
diode
would
read
zero
resistance
and
would
cause
a
short
circuit
through
the
lead
winding
when
in
operation.
An
open
diode
would
read
infinite
in
both
directions
indicating
that
replacement
is
necessary.
See
Figure
39.
Testing
Regulator
Assembly:
To
check
for
proper
voltage
regulation,
attach
a
DC
voltmeter
to
battery
and
operate
engine
at
approximately
1800
rpm.
Battery
voltage
will
climb
to
the
preset
factory
setting
(14.2
to
14.8
volts).
Some
Installations
may
vary
due
to
voltage
drop
In
the
length
of
ammeter
harnesses.
Other
variations
may
stem
from
a
loose
connector
in
the
harness
or
loose
or
corroded
battery
leads.
Low
voltage
readings
at
the
battery
mean
poor
battery
connections.
To
test
regulator,
remove
connector.
Using
the
Rxl0,000
scale
of
your
ohmmeter,
connect
one
meter
lead
to
red
leadwireand
other
meter
lead
to
regulator
base.
No
deflection
should
be
noted
on
the
ohmmeter
in
either
polarity.
Next
connect
meter
to
black
ieadwire
and
base
of
regulator.
Meter
will
defiectfu
I
ly
in
one
polarity
with
no
deflection
in
the
other
(Figure
39).
Full
Charge
Will
Not
Regulate:
Check
for
broken
leads
at
connection
to
regulator
plates.
To
be
sure
regulator
winding
operates
properly,
connect
red
lead
to
ground
and
start
engine.
A
maximum
of
4
amperes
should
be
noted.
This
would
indicate
stator
winding
is
satisfactory.
If
so,
replace
regulator.
No
Charge:
If
alternator
does
not
charge
when
load
is
applied
to
battery,
shut
off
engine
and
disconnect
one
red
Ieadwire
from
regulator
terminal.
Be
sure
lead
is
taped
or
isolated
from
conducting
engine
parts.
Once
again,
start
engine.
Alternator
should
charge
to
full
output;
if
it
doesn’t,
replace
stator
assembly.
EXTERNAL
BATTERY
CHARGING
ALTER¬
NATOR
(Optional)
This
information
is
presented
for
field
use
only.
If
a
major
repair
should
become
necessary,
contact
your
local
authorized
dealer.
Brush
Assembly
Removal:
Remove
the
three
screws
which
fasten
the
voltage
regulator
to
the
alternator.
Disconnect
the
regulator
leads
and
remove
the
regulator.
Remove
the
two
screws
on
the
phenolic
cover
and
lift
out
the
cover
and
gasket
See
Figure
40.
Pull
the
brush
assembly
straight
up
and
lift
out.
Reverse
the
procedure
for
assembly.
Brush
Assembly
Tests:
Connect
an
ohmmeter
or
test
lamp
(12
volts)
to
the
field
terminal
and
to
the
bracket
The
test
lamp
shouldn't
light
or
resistance
reading
should
be
high
(infinite).
If
not.
there
is
a
short
and
the
assembly
must
be
replaced.
Now
move
the
one
ohmmeter
lead
from
the
bracket
to
the
insulated
brush.
Use
an
alligator
clip
directly
on
the
brush.
Be
careful
not
to
chip
it.
Resistance
reading
should
be
zero
(continuity).
43
Connect
the
ohmmeter
leads
to
the
grounded
brush
and
the
bracket.
Resistance
should
be
zero
(continui¬
ty).
