Onan CCK Service Manual

w
Use heavy fiber or
cup grease m space
between seals to
improve seal.
REAR BEARING PLATE
gear cover
MOUNTING FACE
OF GEAR COVER
l-f/32 (26.2 mm)
Y~i
this surface should be
CLEANEO OF ALL OLD
SEALING COMPOUND BE¬
FORE INSTALLING SEAL.
GEAR COVER OIL SEAL
THIS SURFACE SHOULD BE
CLEANED OF ALL OLD
SEALING COMPOUND BE¬
FORE INSTALLING SEAL.
DRIVE OR PRESS OIL
SEAL TO SHOULDER
OF THE PLATE BORE
REAR BEARING PLATE
OIL SEAL

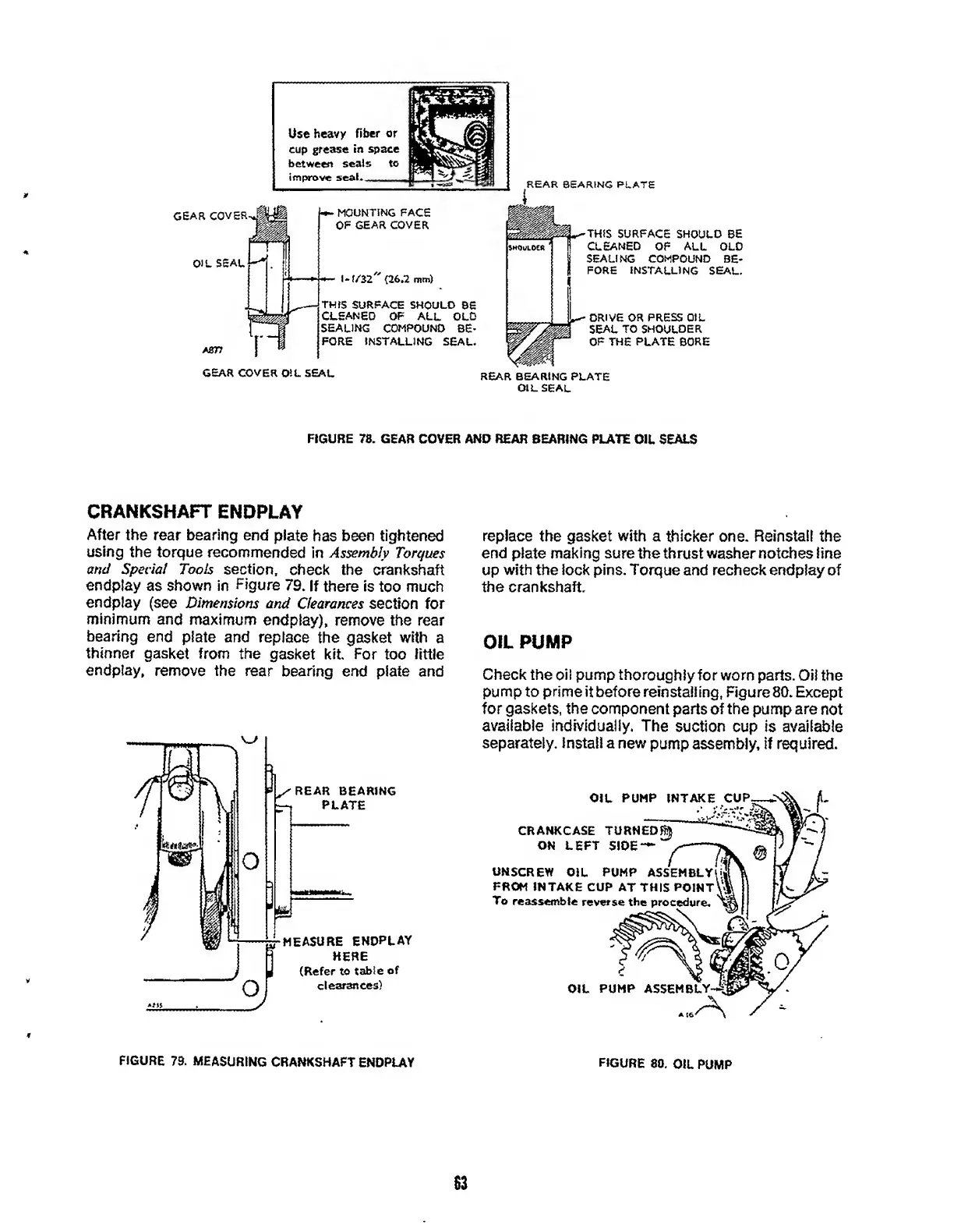

FIGURE 78. GEAR COVER AND REAR BEARING PLATE OIL SEALS
V
CRANKSHAFT ENDFLAY
After the rear bearing end plate has been tightened
using the torque recommended in Assembly Torques
and Special Tools section, check the crankshaft
endplay as shown in Figure 79. If there is too much
endplay (see Dimensions and Clearances section for
minimum and maximum endplay), remove the rear
bearing end plate and replace the gasket with a
thinner gasket from the gasket kit. For too little
endplay, remove the rear bearing end plate and
replace the gasket with a thicker one. Reinstall the
end plate making sure the thrust washer notches line
up with the lock pins. Torque and recheck endplay of
the crankshaft.
OIL PUMP
Check the oil pump thoroughly for worn parts. Oil the
pump to prime it before reinstalling, Figure 80. Except
for gaskets, the component parts of the pump are not
available individually. The suction cup is available
separately. Install a new pump assembly. If required.
OIL PUMP INTAKE CUP
CRANKCASE TURNED^
ON LEFT SIDE***-
r
UNSCREW OIL PUMP ASSEMBLY! jit
FROM INTAKE CUP AT THIS P01 N t \ ‘$
To reassemble reverse the procedure.
OIL PUMP ASSEMBLY
FIGURE 79. MEASURING CRANKSHAFT ENDPLAY
FIGURE 80. OIL PUMP
63

Onan CCK Specifications

General

Cylinders	2
Ignition System	Battery ignition
Fuel Type	Gasoline
Cooling System	Air-cooled
Fuel System	Carburetor
Starter	Electric
Governor	Mechanical
Max RPM	1800 RPM
Engine Type	4-cycle
Bore and Stroke	3.25 x 3.625 inches (82.55 x 92.08 mm)
