Genset Status Screens
Genset status is displayed on 3 screen pages (Fig-
ure 2-3). GEN STATUS PG1 appears when the Dis-
play is turned on. Press the double arrows [
] to
toggle between the 3 screen pages.
The Status line on PG1 will display the word Prim-
ing, Starting, Running, Stopped or Volt Adj. The rest
of the lines on the 3 status screen pages display AC
output voltage, AC frequency, engine coolant tem-
perature, engine oil pressure, starting battery volt-
age and total genset running time.
Note: The total time on the control panel hour meter
(Page 2-1) prevails if the total time on the e-Series
Digital Display is different. See Configuring Replace-
ment Genset Controller (p. 2-7) to reset the Digital
Display to match the control panel hour meter.
TO
FIG. 2-7
TO
FIG. 2-5
TO
FIG. 2-8

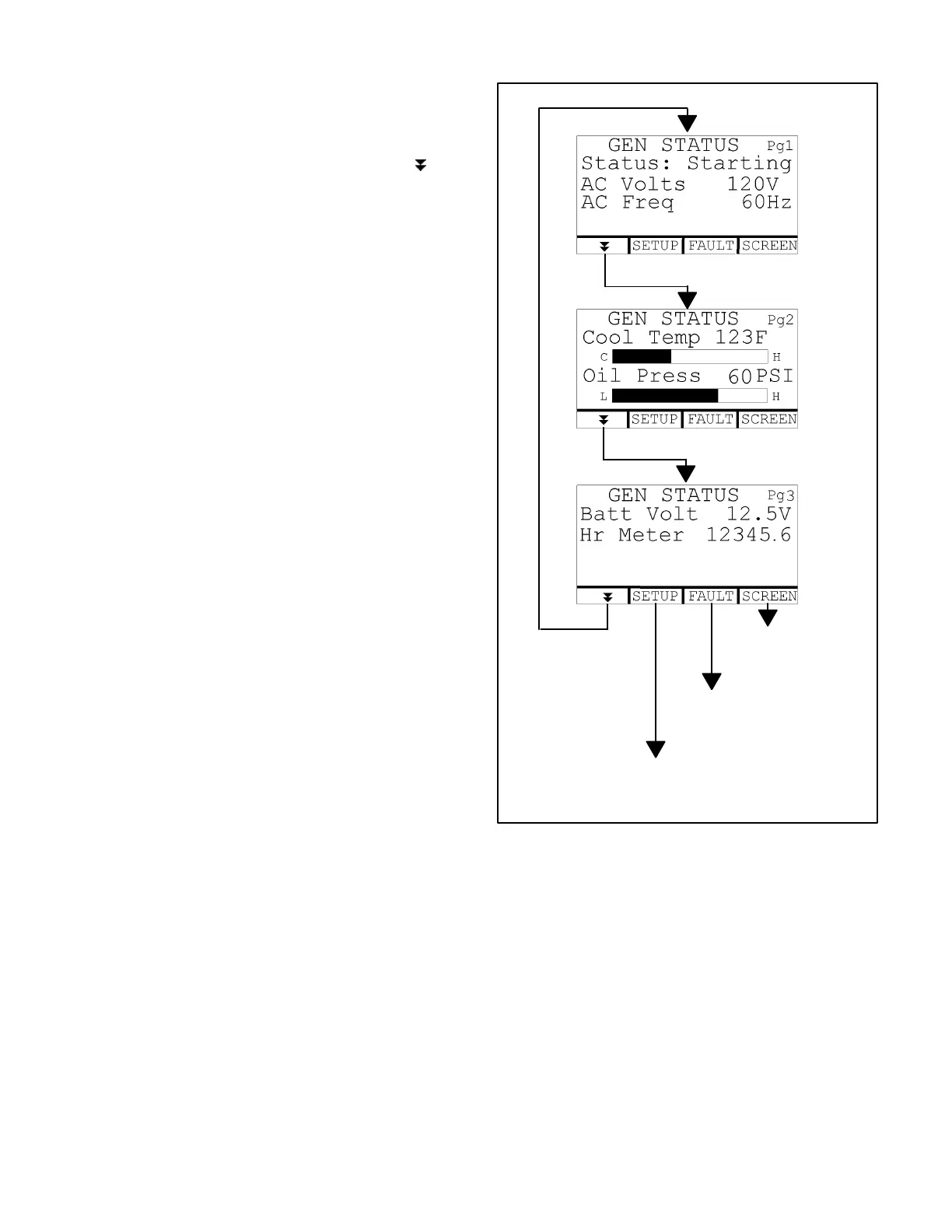

FIGURE 2-3. TYPICAL GENSET STATUS SCREENS
