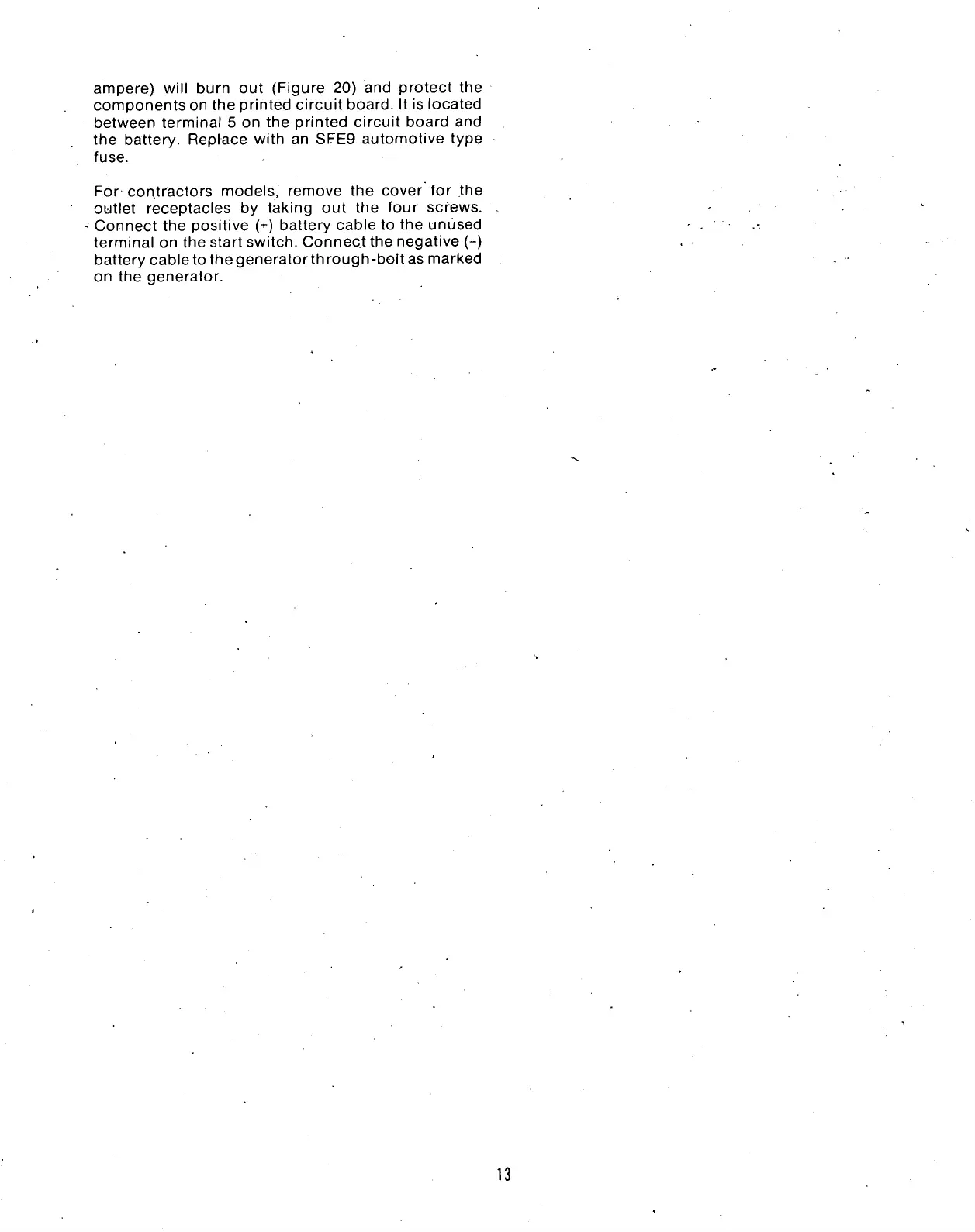

ampere) will burn out (Figure 20) and protect the
components on the printed circuit board. It is located
between terminal 5 on the printed circuit board and
the battery. Replace with an SFE9 automotive type
fuse.
For contractors models, remove the cover for the
outlet receptacles by taking out the four screws.
Connect the positive (+) battery cable to the unused
terminal on the start switch. Connect the negative (-)
battery cabletothegeneratorthrough-boltas marked
on the generator.
13

Onan NH Series Specifications

General

Frequency	60 Hz
Engine Type	4-Cycle
Fuel Type	Gasoline
Starting System	Electric
Voltage	120/240V
Noise Level	72 dB(A) at 7 meters
Fuel Consumption	0.5-1.0 gal/hr (gasoline)
