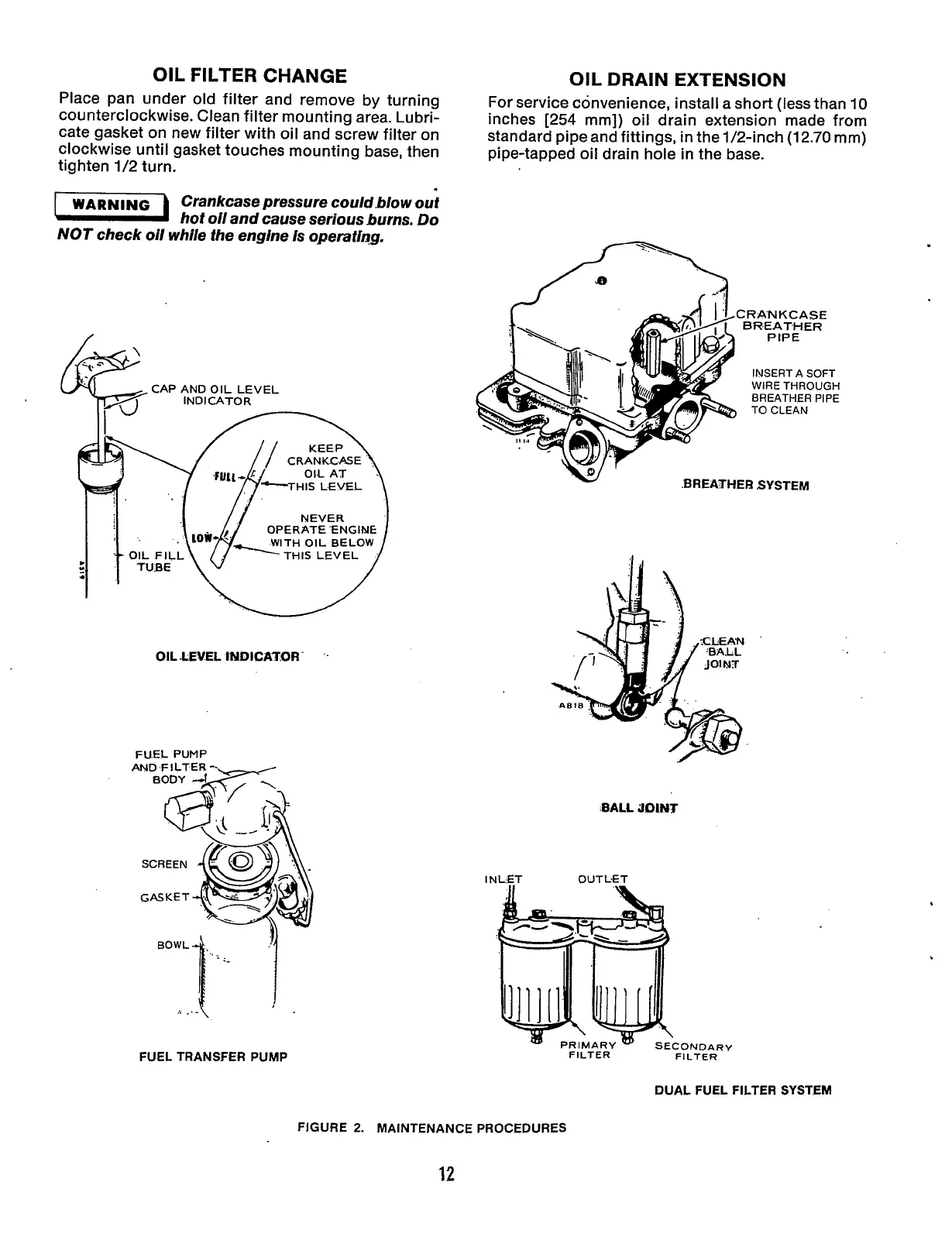

OIL
FILTER
CHANGE
Place pan under old filter and remove by turning
counterclockwise. Clean filter mounting area. Lubri-
cate gasket on new filter with oil and screw filter on
clockwise until gasket touches mounting base, then
tighten 1/2 turn.
OIL
DRAIN
EXTENSION
For service convenience, install a short (less than
10
inches [254 mm]) oil drain extension made from
standard pipe and fittings,
in
the1/2-inch (12.70 mm)
pipe-tapped oil drain hole
in
the base.
Crankcase pressure couid.biow
out
hot oil and cause serious
burns.
Do
NOT
check oil while the engine is operating.
CAP AND OIL LEVEL
HIS
LEVEL
OPERATE ENGINE
ITH OIL BELOW
THIS LEVEL
OILLEVEL
INDICA'TOR'
FUEL PUMP
i.
,.-\
FUEL TRANSFER PUMP
CRANKCASE
BREATHER
PIPE
INSERT A
SOFT
WIRE
THROUGH
BREATHER PIPE
TO CLEAN
W
.BREATHER SYSTEM
BALL
JOINT
I
NL.ET OUTL.ET
ONDARY
FILTER FILTER
DUAL FUEL FILTER SYSTEM
FIGURE
2.
MAINTENANCE PROCEDURES
12
