ONE300 – Installation Manual
12
3.3.1 Configuration with 8 BRI
The interface marking is indicated in bold and between brackets.
All the connectors are located on the rear panel:
• 1 SHDSL access port (RJ45) (SHDSL),
• 1 Configuration port and debug (RJ45) (CONSOLE),
• 1 LAN access port 100Base-T (RJ45) (ETHERNET 1/0),
• 4 FastEthernet switch ports (RJ45) (SWITCH E3-0/3 to E0-0/0),
• 8 ISDN Basic Rate Interfaces (RJ45) (ISDN BRI L0-5/0 to L7-5/7),
• Input for the external power supply connector (DC input jack, 12V-2.2A),
• 2 connectors for WLAN antenna.

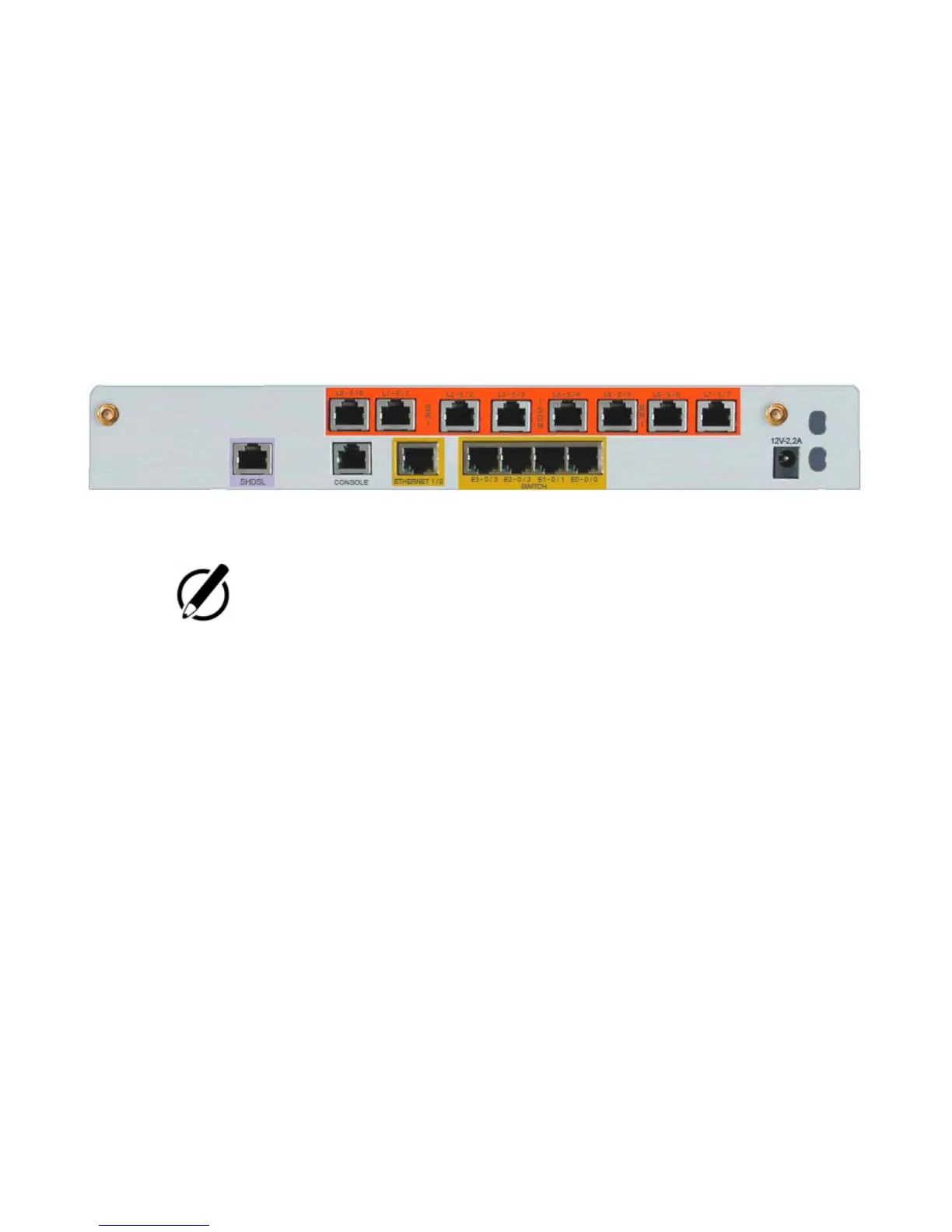

Figure 2. Rear panel with 8 BRI
Depending of the ordered configuration of the system, the rear panel may
change.
