ONE300 – Installation Manual
13
3.3.2 Configuration with 1 PRI
The interface marking is indicated in bold and between brackets.
All the connectors are located on the rear panel:
• 1 SHDSL access port (RJ45) (SHDSL),
• 1 Configuration port and debug (RJ45) (CONSOLE),
• 1 LAN access port 100Base-T (RJ45) (ETHERNET 1/0),
• 4 FastEthernet switch ports (RJ45) (SWITCH E3-0/3 to E0-0/0),
• 1 Primary Rate Interface (RJ45) (PRI L0-5/0),
• Input for the external power supply connector (DC input jack, 12V-2.2A)
• 2 connectors for WLAN antenna.

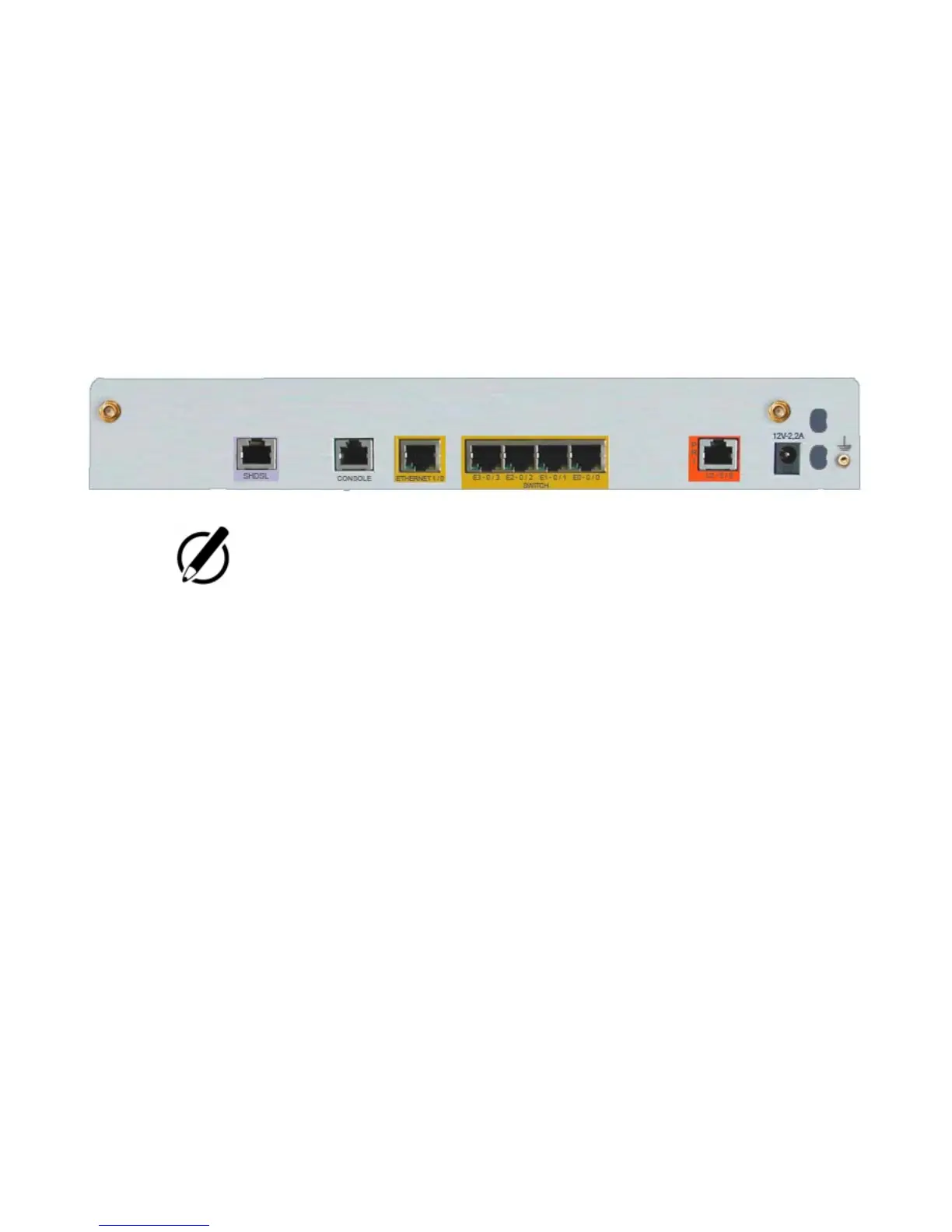

Figure 3. Rear panel with 1 PRI
Depending of the ordered configuration of the system, the rear panel may
change.
