7
1. The lter internals comprise of a collector hub and eight (8) laterals,
which are supplied packaged seperately with the collector hub and
are stored inside the lter tank prior to shipment.
2. Carefully inspect the laterals and hub prior to assembly for any
visible defects.
3. To assemble the laterals and hub please use the following steps.
(The connection between the hub and the lateral is completed
inside the lter tank - refer to diagram on following page)
For P221100 & P225100 Models only:
Push in and align the male tab on the lateral with the female slot in the hub.
Rotate the lateral clockwise until the tabs engage with an audible “click”.
Repeat this process for all 8 laterals.
For P229200 & P233200 Models only:
Begin by assembling each of the Y-Pieces and the end caps. Place a washer
into the socket of the end cap then align the female slot on the end cap with
the male tab on the lateral. Push the end cap onto the branch of the Y-piece.
Rotate the Y-piece clockwise until the tabs engage with an audible “click”.
Push in the tapered pin (16 supplied) to lock the end caps in place. Repeat
this process for all 16 end caps on the 8 laterals (2 per lateral).
To assemble the Y-piece to the Hub place a washer into the socket of the Y-
piece, then align the female slot on the lateral with the male tab on the hub.
Push the Y-piece onto the Hub. Rotate the lateral clockwise until the tabs
engage with an audible “click”. Push in the tapered pin (8 supplied) to lock
the lateral in place. Repeat this process for all 8 laterals.

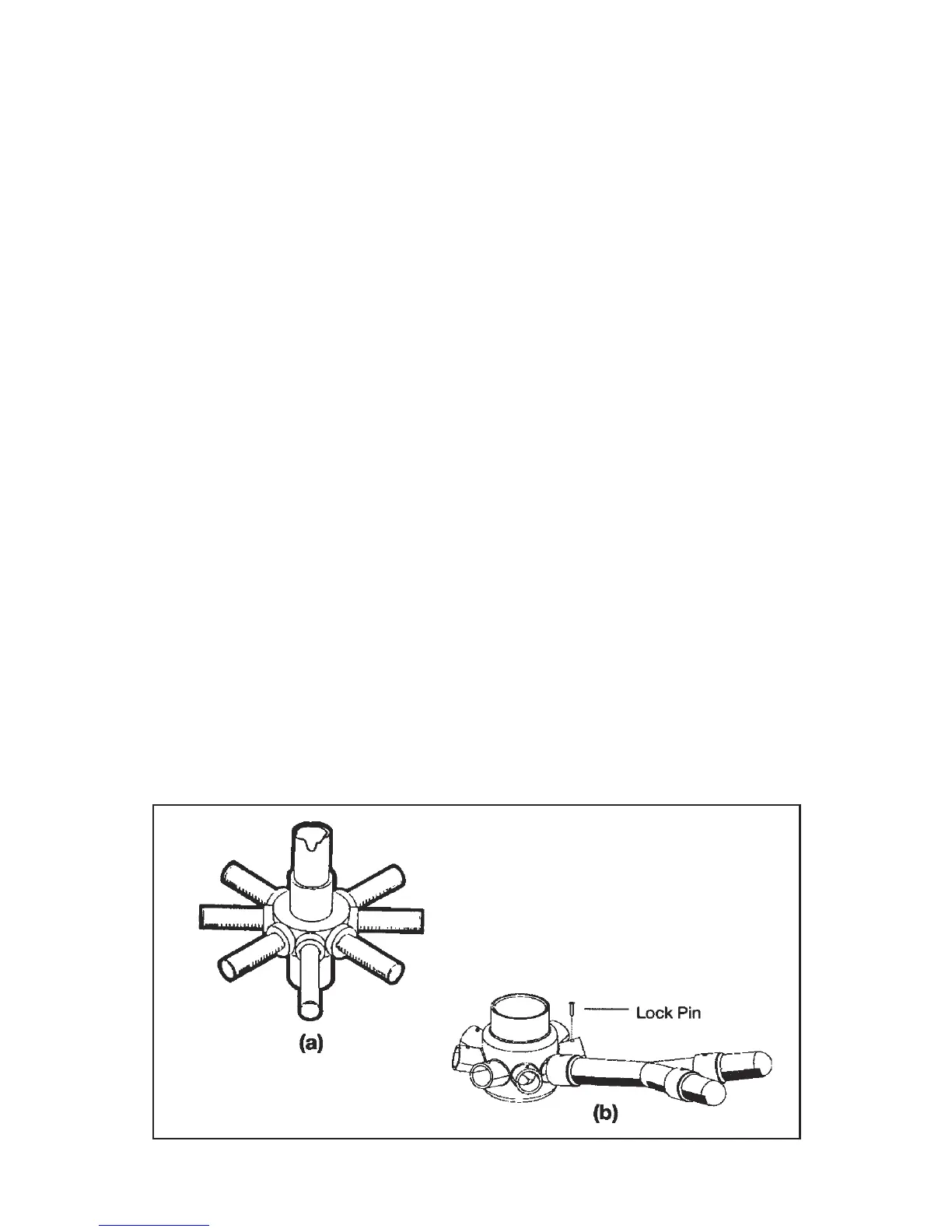

Hub Lateral Model P229 & P233
Hub Lateral Model P221& P225
