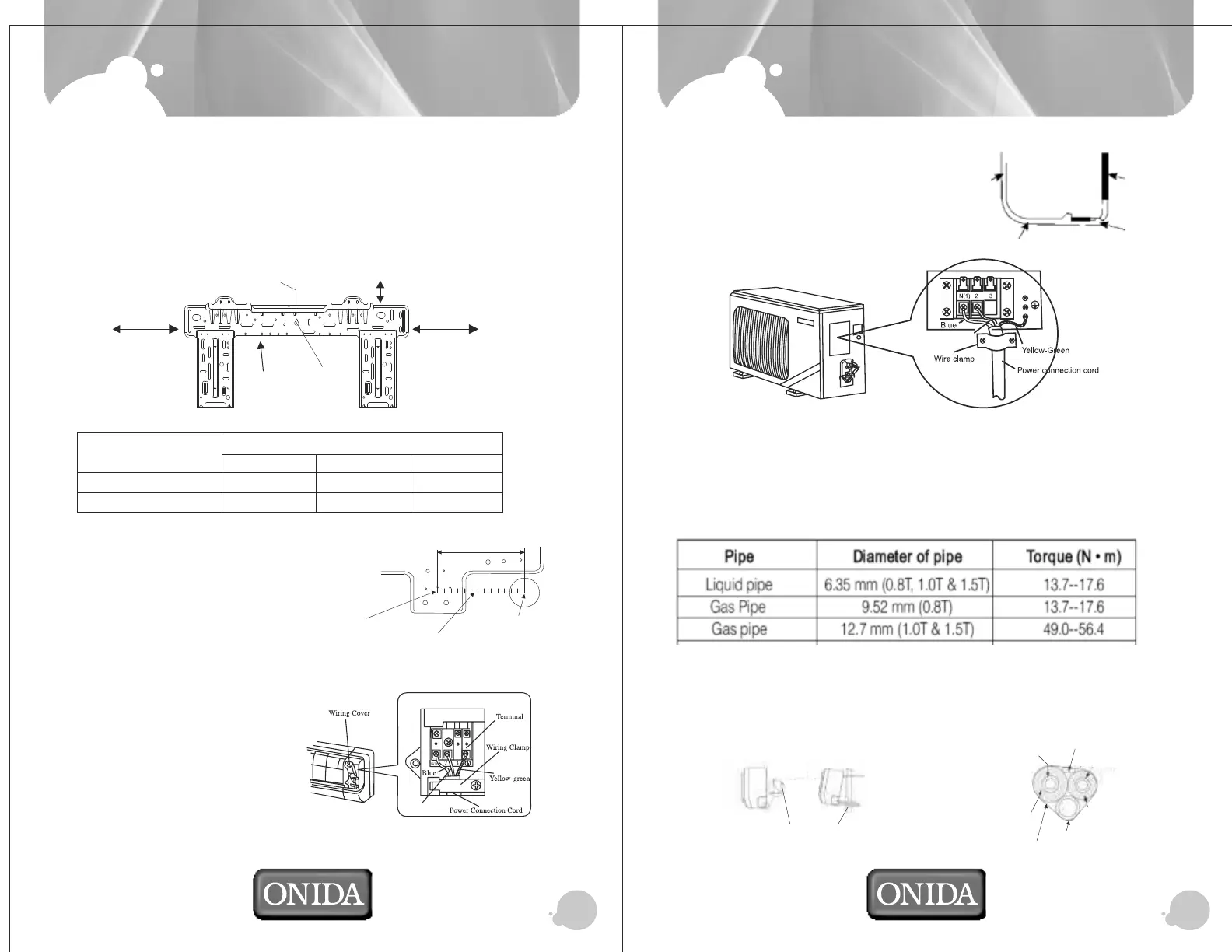

INSTALLATION INSTALLATION
Model
0.8 T & 1.0 T
1.5 T
Dimensions in mm
A
150
175
155
245
150
260
B
C
nINDOOR UNIT
1. Fitment of mounting plate
The mounting plate should be fitted on the structural part of wall on which indoor unit
is to be installed.
2. Drill two holes at a distance of 450 mm between them for the expansion bolts.
or more
from sidewall
C or more
from sidewall
mounting
plate
fasten string at the central hole
plumb
at least B from top
A
nDrill on the wall
Confirm the position of holes and
drill holes of diameter 65 mm on the
wall
18
10
Center of Hole(Ø65mm)
Insert Ruler
180mm
Align Ruler with straight line
nConnecting of cables
1. Open the front panel
2. Dismentle the electric box cover
and fastener
3. Connect the cable
4. Reassemble the fastener and electric
box cover.
Black
External connection
electric wire
Liquid side piping
Liquid side
piping insulation
Water
drainage
pipe
Finally wrap it
with tape
Gas side
piping insulation
Gas side piping
nInstallation of indoor unit
After putting the pipe assembly through
the wall, attach the indoor unit to the
mounting plate on the wall as shown in
the figure.
nInstallation of outdoor unit
The connecting cables must be clipped together.
Special cable to be used to connect indoor unit and outdoor unit.
The electric box cover must be mounted on its position on outdoor unit.
nConnecting of pipes
nSealing the wall hole and clamping the pipe
Use putty to seal the wall hole.
Use pipe fastener to clamp the pipe on wall
Black
air proof with putty
Mounting Board
Mounting Board
Fixing Hook
Mounting Plate
Rib of indoor unit
Bottom
Indoor unit
