INSTALLATION SKETCH
GENERAL INSTRUCTIONS FOR
INSTALLATION
• Avoid long and complicated routing
between the IDU and ODU, as
shown in the three adjacent figures.
• Too long
• Too high
• Too many bends
• The ODU must be placed on strong
frame or support. If mounted on a
wall, please ensure that the wall is
thick enough and that the frame is
supported adequately.
• Finally, it is most important for the
ODU to be easily accessible to the
service engineer. It is advisable to
discuss the same with the engineer
before deciding upon the location of
the unit.
If the ODU is to be located on a high
ledge, adequate space must be
provided for the service engineer to
service the unit. It is a good idea to
provide a catwalk (a platform)
around the unit and access door /
window to the Unit.
Electrical outlet
After the location of the outdoor unit and
indoor unit is finalised, you must provide
a suitable electrical outlet near the
indoor unit.
MCB
To ODU
STABILISER
T
o ODU
Space to the wall
Above
Above
Space to the ceiling
Space to the wall
Space to the wall
Air outlet side
Above
Space to the floor
Above
Above
Above
Above
Space to the obstruction
Air outlet side
Space to the wall
Air inlet side
Above
Above
evobA

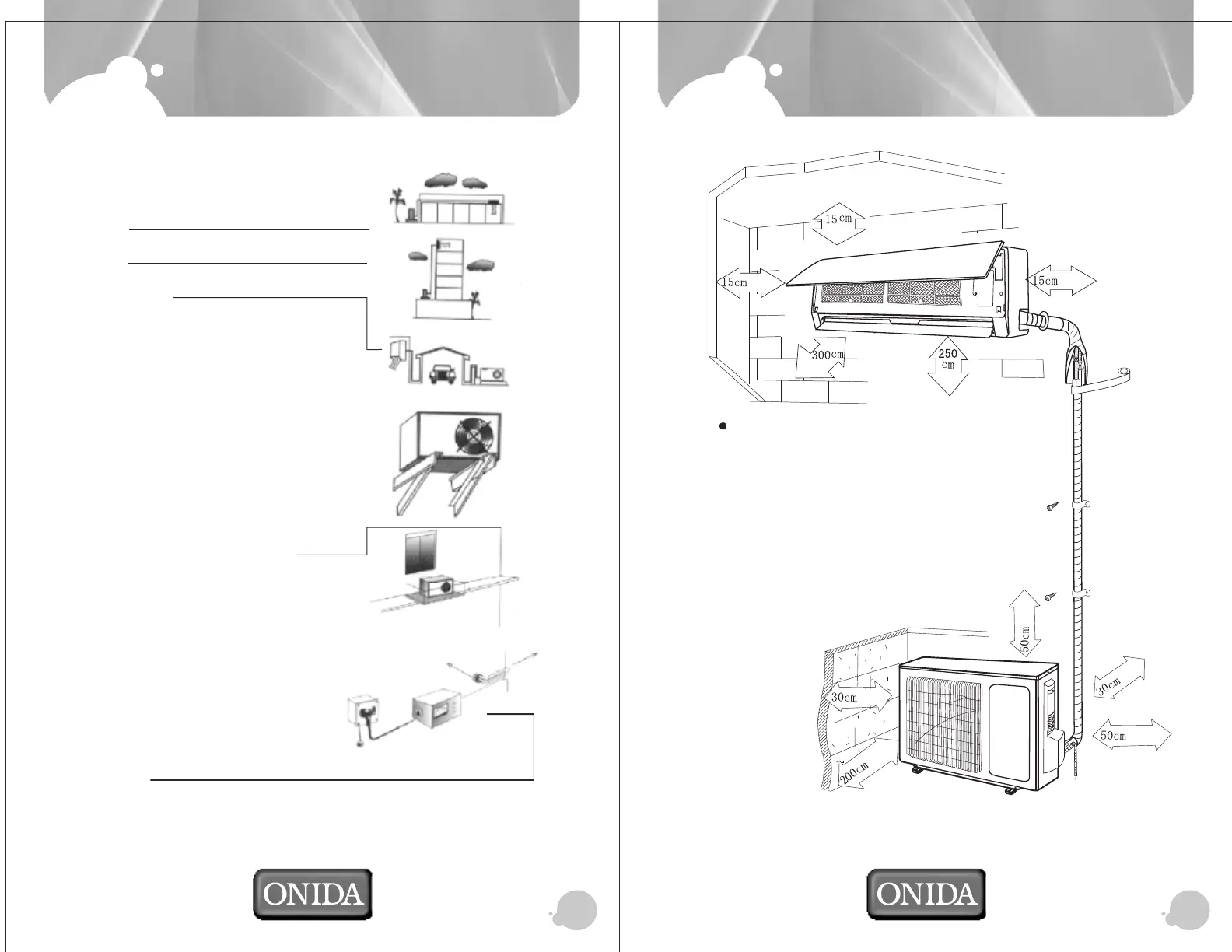

The dimensions of the space necessary for correct
installation of the appliance including the minimum
permissible distances to adjacent structures
This is just the schematic plan, please refer to the actual product.
