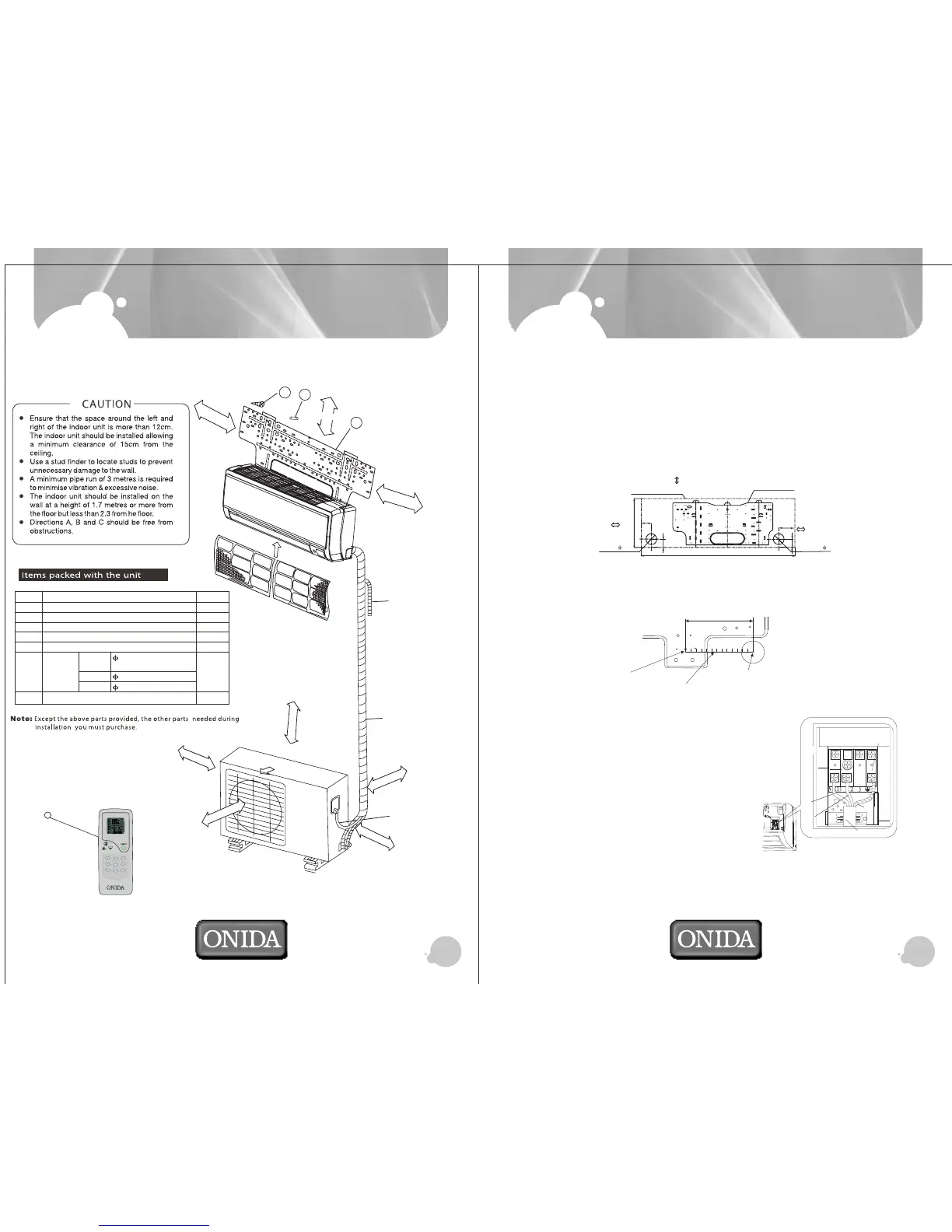

INSTALLATION SKETCH
B
Remote Controller
7
15cm right
15cm left
15cm
above
1
2
3
Loop the
connective
cable.
C
A
60cmabove
60cm above
30cmabove
Air FilterAir Filter
Air Outlet
30cmabove
Wrapping tape
200cmabove
Additional drain pipe
MODE H.SWING V.SWING
SLEEP
i-COOL
TIMERFAN
TURBO LOCK
INSTALLATION
n Drill on the wall
Confirm the position of holes and drill holes of diameter 65 mm on the wall
n INDOOR UNIT
1. Fitment of mounting plate
The mounting plate should be fitted on the structural part of wall on which indoor unit
is to be installed.
2. Drill two holes at a distance of 450 mm between them for the expansion bolts.
n Connecting of cables
1. Open the front panel
2. Dismantle the electric box cover
and fastener
3. Connect the cable
4. Reassemble the fastener and electric box
cover.
150mm or more to ceiling
Indoor unit outline
Installation plate
293
Right rear side
refrigerant
pipe hole 65
Left rear side
refrigerant
pipe hole 65
120mm or more
to wall
120mm or more
to wall
995
45
90
45
45
Blue
Terminal board
Power connection wire
Black
Yellow-green
18
10
Center of Hole(Ø 6 5 m m )
Insert Ruler
180mm
Align Ruler with straight line
S.No.
1
2
3
4
5
6
7
Name of Accessories
Installation Plate
Clip Anchor
Self-tapping Screw A ST3.9X25
Seal
Drain Joint
Connecting
Pipe
Assembly
Liquid Side
Gas Side
Gas Side
6.35 (9000Btu/h, 12000Btu/h,
18000Btu/h Models)
9.53 (9000Btu/h Model)
12.7 (12000Btu/h,18000Btu/h)
Remote Controller
Q’ty
1
8
8
1
1
Parts you
must
Purchase
1
To Next Page
