• Avoid long and complicated routing
between the IDU and ODU, as
shown in the three adjacent figures.
• Too long
• Too high
• Too many bends
• The ODU must be placed on strong
frame or support. If mounted on a
wall, please ensure that the wall is
thick enough and that the frame is
supported adequately.
• Finally, it is most important for the
ODU to be easily accessible to the
service engineer. It is advisable to
discuss the same with the engineer
before deciding upon the location of
the unit.
If the ODU is to be located on a high
ledge, adequate space must be
provided for the service engineer to
service the unit. It is a good idea to
provide a catwalk (a platform)
around the unit and access door /
window to the Unit.
Electrical outlet
After the location of the outdoor unit and
indoor unit is finalised, you must provide
a suitable electrical outlet near the
indoor unit.

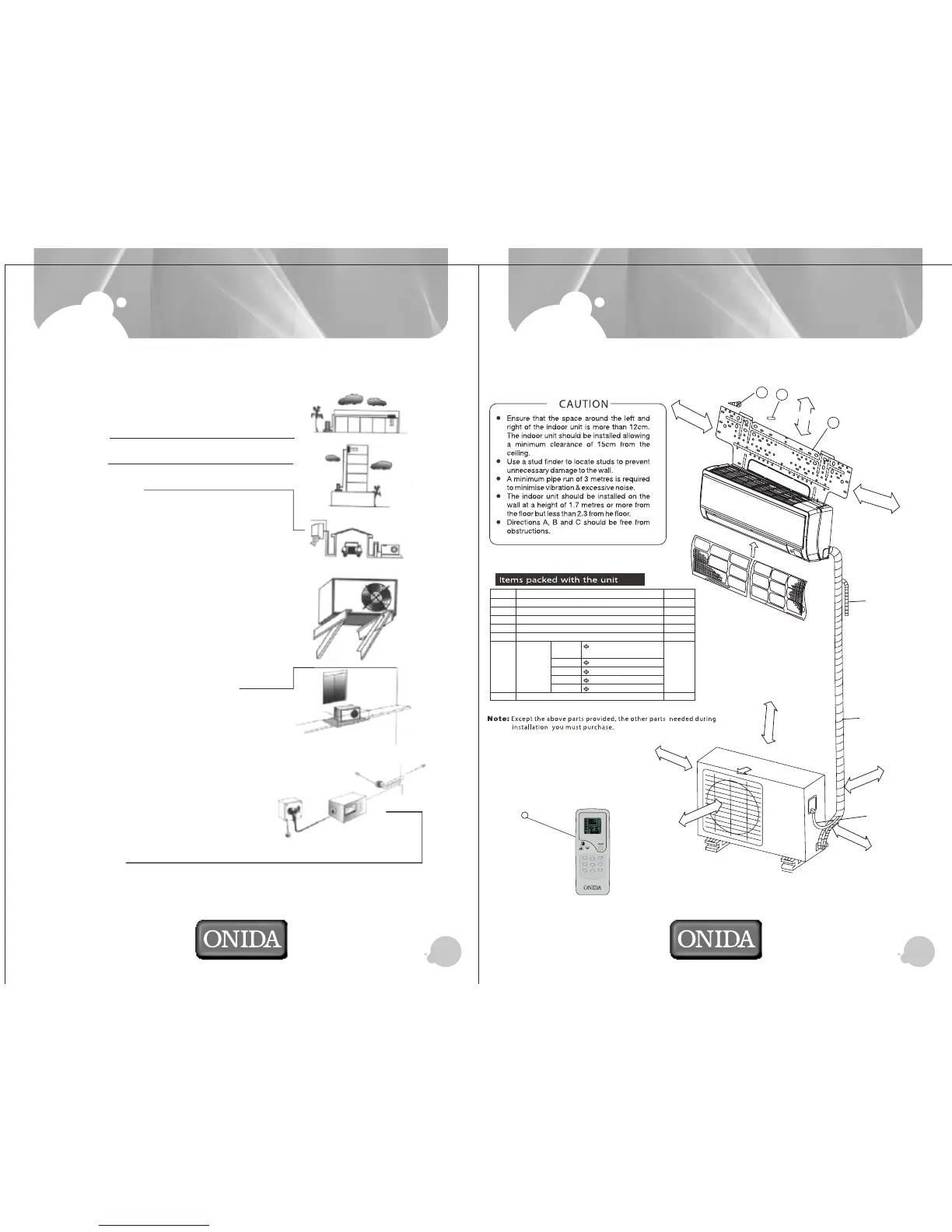

GENERAL INSTRUCTIONS FOR
INSTALLATION
MCB
T
o ODU
STABILISER
To ODU
INSTALLATION SKETCH
B
Remote Controller
7
15cm right
15cm left
15cm
above
1
2
3
Loop the
connective
cable.
C
A
60cmabove
60cm above
30cmabove
Air FilterAir Filter
Air Outlet
30cmabove
Wrapping tape
200cmabove
Additional drain pipe
MODE H.SWING V.SWING
SLEEP
i-COOL
TIMERFAN
TURBO LOCK
S.No.
1
2
3
4
5
6
7
Name of Accessories
Installation Plate
Clip Anchor
Self-tapping Screw A ST3.9X25
Seal
Drain Joint
Connecting
Pipe
Assembly
Liquid Side
Liquid Side
Gas Side
Gas Side
Gas Side
6.35 (9000Btu/h, 12000Btu/h,
18000Btu/h Models)
9.53 (9000Btu/h Model)
12.7 (12000Btu/h,18000Btu/h)
9.53 (24000 Btu/h Model)
15.88 (24000 Btu/h Model)
Remote Controller
Q’ty
1
8
8
1
1
Parts you
must
Purchase
1
To Next Page
