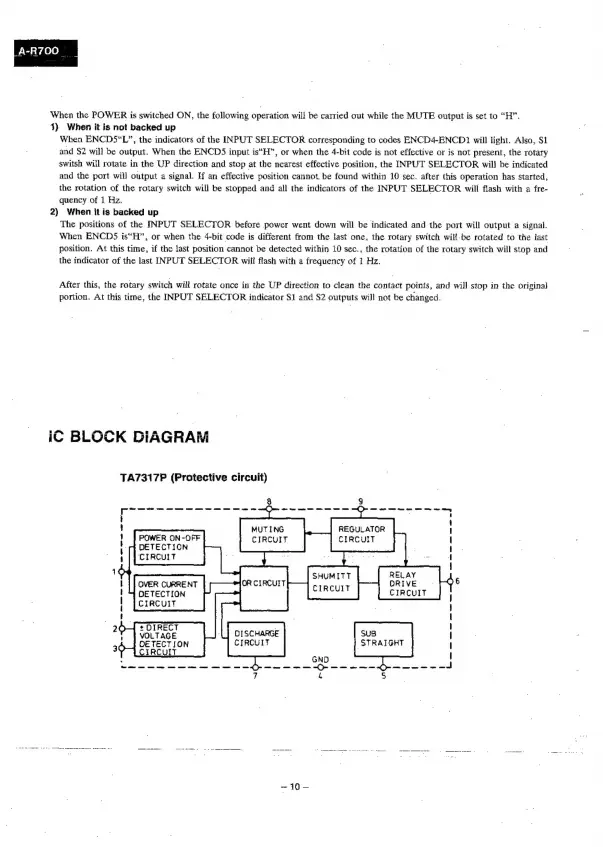

When the POWER is switched ON, the following operation will be carried out while the MUTE output is set to “H”.
4} When it is not backed up
When ENCD5“L”, the indicators of the INPUT SELECTOR corresponding to codes ENCD4-ENCD1 will light. Also, $1
and §2 will be output. When the ENCDS input is“H”, or when the 4-bit code is not effective or js not present, the rotary
switsh will rotate in the UP direction and stop at the nearest effective position, the INPUT SELECTOR will be indicated
and the port will output a signal. If an effective position cannot, be found within 10 sec. after this operation has started,
the rotation of the rotary switch will be stopped and all the indicators of the INPUT SELECTOR will flash with a fre-
quency of 1 Hz.
2) When it is backed up
The positions of the INPUT SELECTOR before power went down will be indicated and the port will output a signal.
When ENCDS is“H”, or when the 4-bit code is different from the last one, the rotary switch will-be rotated to the last
position. At this time, if the last position cannot be detected within 10 sec., the rotation of the rotary switch will stop and
the indicator of the last INPUT SELECTOR will flash with a frequency of 1 Hz.
After this, the rotary switch will rotate once in the UP direction to clean the contact points, and will stop in the original
portion. At this time, the INPUT SELECTOR indicator S1 and S2 outputs will not be changed,
i]
‘
MUTING REGULATOR
POWER ON-OFF CIRCUIT CIRCUIT
DETECTION : .
{CIRCUIT ate
1 SHUMITT ay 6
OVER CURRENT
DETECTION CIRCUIT CIRCUIT
CIRCUIT
. = DIRECT
2 VOLTAGE ‘L] OISCHARGE
3 DETECTION CIRCUIT
GND
-—<—-—-- Qe OO
7 4
-10—
