CR-315/315DAB
PRINTED CIRCUIT BOARD VIEWS-10
U08

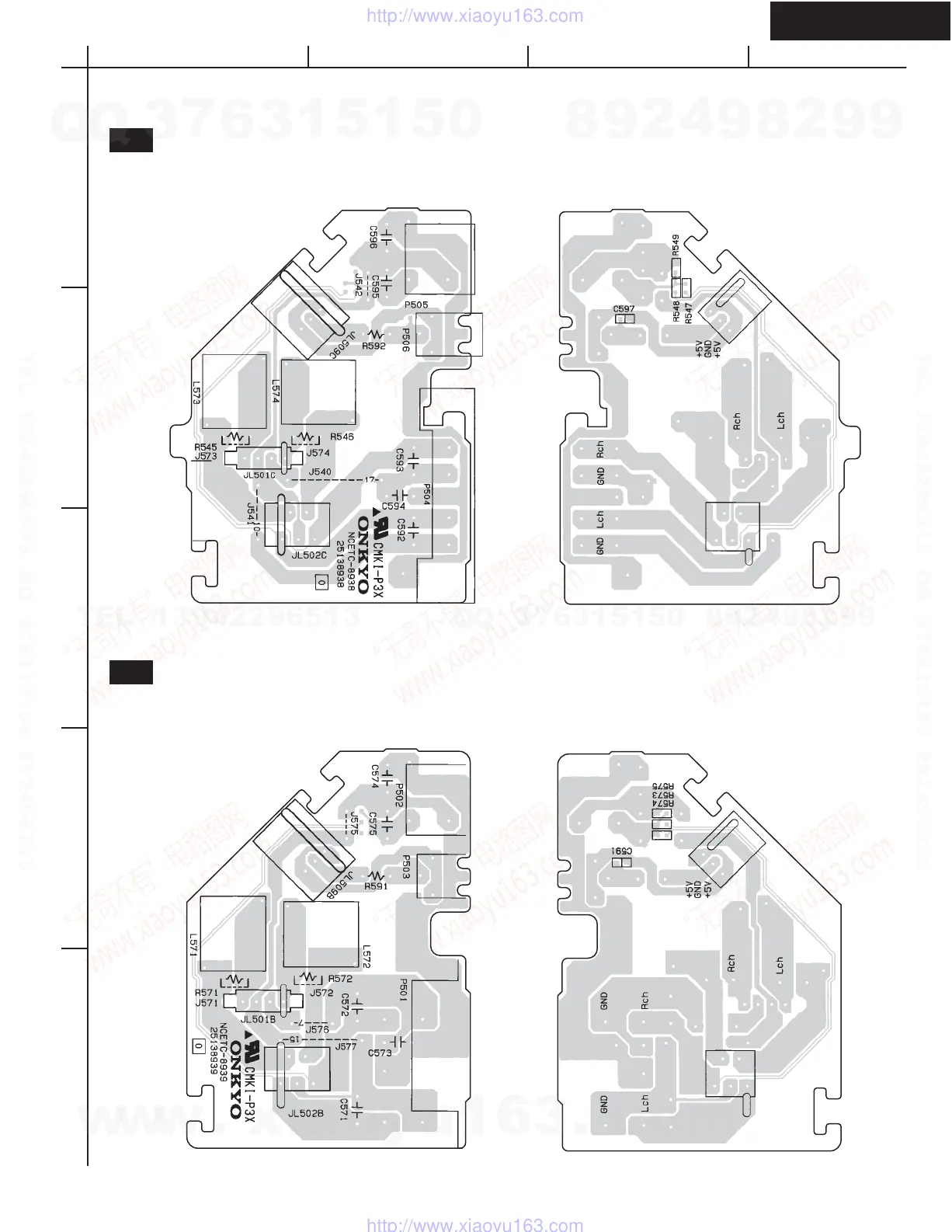

SPEAKER TERMINAL PC BOARD (NAETC-8938)
Component side Soldering side
U09
SPEAKER TERMINAL PC BOARD (NAETC-8939)
Component side Soldering side
<Notes> MDC type only
<Notes> MPP, MGT, MDT, MGQ, MPB type only
