Onkyo CR-505DAB User Manual

9
Controls & Connectors—Continued
For detailed information, refer to the pages in parentheses.
1 REMOTE CONTROL (15)
This (Remote Interactive) connector can be con-
nected to the connector on another Onkyo compo-
nent. To use , you must make an analog RCA/phono
connection between the CR-505DAB and your other
component, even if they are connected digitally.
2 DAB ANTENNA (13)
This connector is for connecting the supplied DAB
antenna. CR-505DAB only scans UK Band III.
3 FM 75 Ω ANTENNA (12, 13)
This connector is for connecting an FM antenna.
4 AM ANTENNA (12, 13)
These push terminals are for connecting an AM antenna.
5 OPTICAL DIGITAL OUT (14, 15)
This connector can be used to connect a Mini Disc
recorder or other component with digital input.
6 SUBWOOFER PRE OUT (11)
This RCA/phono connector can be used to connect an
active subwoofer.
7 SPEAKERS (11)
These terminals are for connecting left and right speakers.
8 TAPE IN/OUT (14)
These RCA/phono connectors can be used to connect a
cassette tape deck or other recorder with analog inputs
and outputs.
9 MD IN/OUT (14, 15)
These RCA/phono connectors can be used to connect a
Mini Disc recorder or other recorder with analog inputs
and outputs.
0 LINE IN (14)
These RCA/phono connectors can be used to connect
another component.

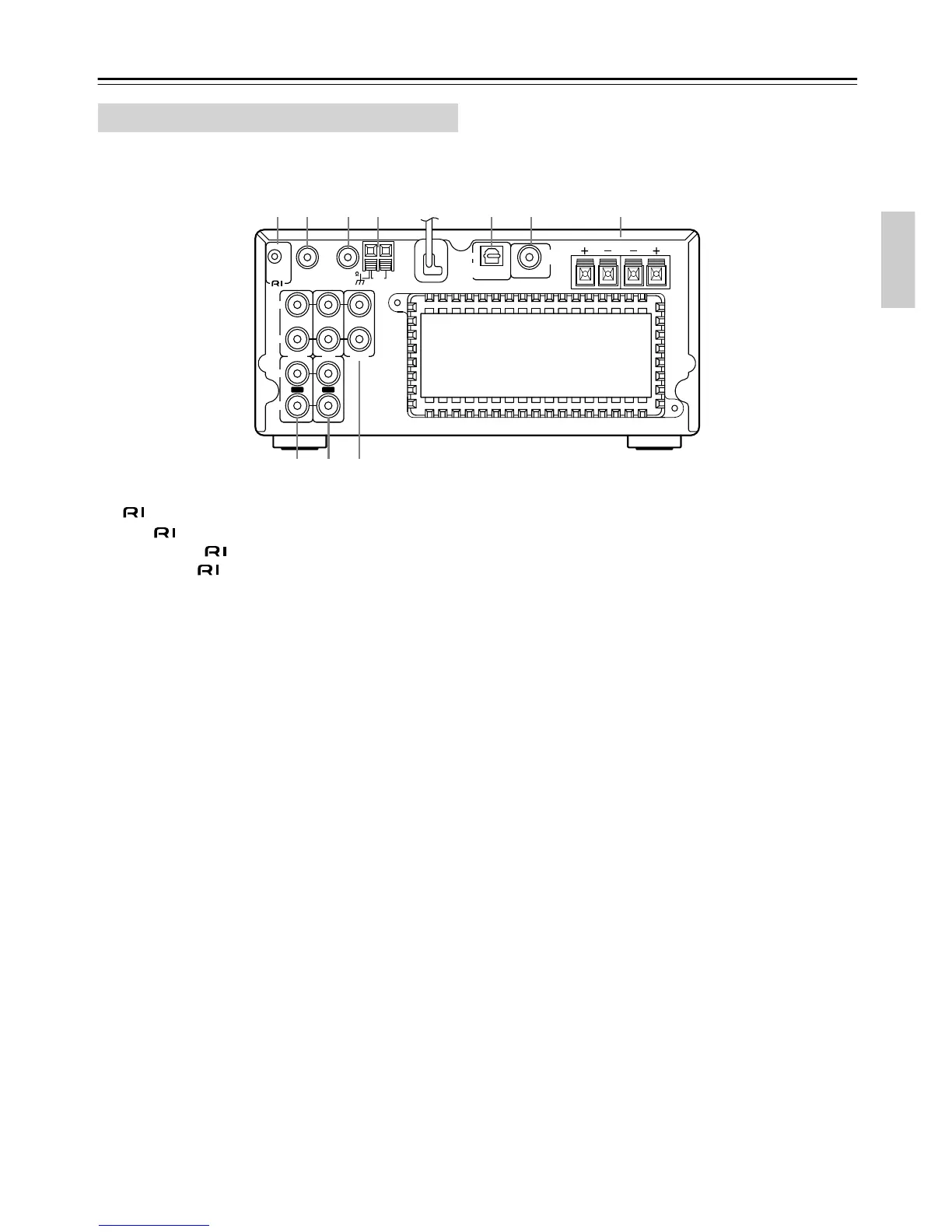

Rear Panel
OUT OUT
SPEAKERS
RL
FM75DAB
ANTENNA
PRE OUT
OPTICAL
DIGITAL
OUT
SUB
WOOFER
IN IN IN
REMOTE
CONTROL
TAPE LINEMD
R
L
R
L
AM
21
8 9 0
3
4
5 6 7

Onkyo CR-505DAB Specifications

Power Output

power output (DIN)	20 W + 20 W (4 Ω, 1 kHz)
power output (JEITA)	25 W + 25 W (4 Ω, 1 kHz)
dynamic power	30 W + 30 W (4 Ω)

Total Harmonic Distortion

THD (AMP)	0.2% (5 W Output, 4 Ω)
THD (FM Stereo)	0.46% (1 kHz)
THD (FM Mono)	0.4% (1 kHz)
THD (AM)	1.60%
THD (DAB)	0.20%
THD (CD)	0.01%

Frequency Response

frequency response (AMP)	10 Hz-50 kHz/+3 dB, –3 dB (LINE)
frequency response (FM)	30 Hz-15 kHz/+1.5 dB, –1.5 dB
frequency response (DAB)	20 Hz-20 kHz
frequency response (CD)	20 Hz-20 kHz

General Specifications

power supply	AC 230-240 V, 50 Hz
power consumption	75 W
stand-by power consumption	1.0 W
dimensions (W x H x D)	205 W x 103 H x 356 D mm
weight	5.3 kg
