Connecting Antennas
This section explains how to connect the supplied indoor FM antenna and AM loop antenna. The CD receiver won’t
pick up any radio signals without an antenna connected, so you must connect the antenna to use the tuner.
• If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM
antenna instead.
• If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially
available outdoor AM antenna.
• Once the CD receiver is ready for use, you’ll need to tune into an AM radio station and adjust the position of the AM
antenna to achieve the best possible reception.
• Keep the antenna as far away as possible from the CD receiver, TV, speaker cables, and power cords.
Thumbtacks, etc.
Insert the plug fully
into the jack.
Push. Insert wire. Release.

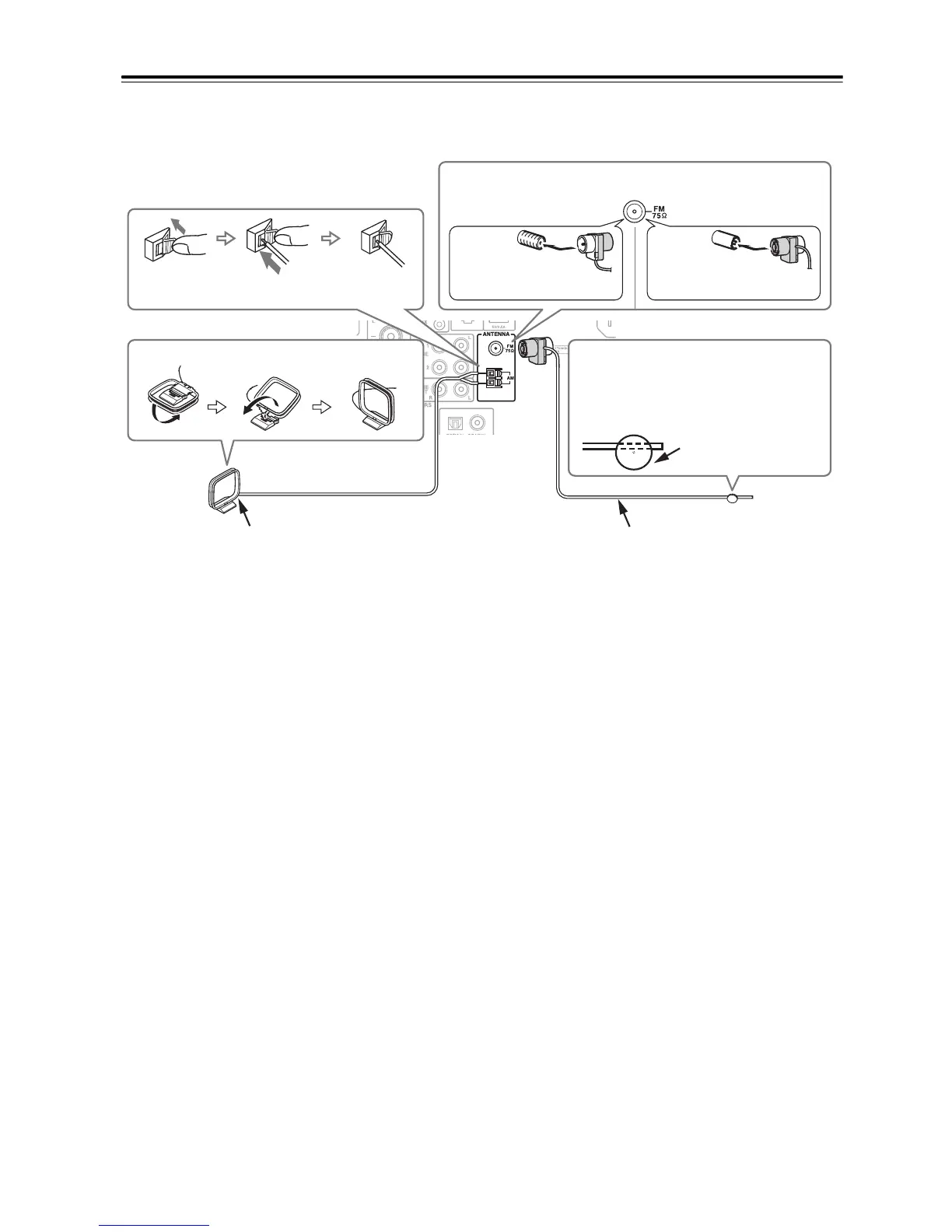

Assembling the AM loop antenna
AM loop antenna (supplied)
Caution:
• Be careful not to injure yourself when
using thumbtacks.
Indoor FM antenna (supplied)
Insert the plug fully
into the jack.
North American and
Asian models
European models

Onkyo CS-N755 Specifications

General

Karaoke	No
Impedance	4 Ω
Bass reflex	Yes
Speaker type	2-way
Frequency range	10 - 10000 Hz
RMS rated power	44 W
Woofer diameter	120 mm
Tweeter diameter	25 mm
Number of speakers	2
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.4 %
Type	Home audio mini system
Product color	Black, Silver
Number of optical discs	1 discs
Disc types supported	CD, CD-R, CD-RW
Playback disc formats	CD audio
Audio formats supported	AAC, FLAC, MP3, OGG, WAV, WMA
AM band range	522 - 1.611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	vTuner
Display type	LCD
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Speaker depth	258 mm
Speaker width	154 mm
Speaker height	245 mm
Apple docking compatibility	Not supported
Power source	AC
Input voltage	220-230 V
Input frequency	50 - 60 Hz
Power consumption (standby)	0.26 W
Power consumption (typical)	74 W
Volume control	Rotary

Weight and Dimensions

Depth	331 mm
Width	215 mm
Height	119 mm
Weight	4800 g
