DR-S2.2
1733-02118A
Sub 01Y16A
NO DISC
P1801
AV CONNECTOR
AGND
4
AUDIO_L
3
AUDIO_R
1
CV/Y
19
FSW
8
NC1
2
NC2
6
NC3
10
NC4
12
NC5
20
RGBSW
16
RGB_B
7
RGB_G
11
RGB_R/C
15
VGND1
5
VGND2
9
VGND3
13
VGND4
14
VGND5
17
VGND6
18
VGND7
21
P1801
AV CONNECTOR
AGND
4
AUDIO_L
3
AUDIO_R
1
CV/Y
19
FSW
8
NC1
2
NC2
6
NC3
10
NC4
12
NC5
20
RGBSW
16
RGB_B
7
RGB_G
11
RGB_R/C
15
VGND1
5
VGND2
9
VGND3
13
VGND4
14
VGND5
17
VGND6
18
VGND7
21
Video1
Language
General
V2
Exit
Move
ENTER
Select
TV Screen
Component Video
4:3(Letter Box)
4:3(Pan&Scan)
16:9(Wide)
SETUP
Select your display preference
ADJUSTMENT PROCEDURES-3
1. How to check the program version of microprocessor
SPECIAL OPERATION
1. Press STANDBY/ON while pressing down SUBWOOFER MODE in POWER ON.
FL display
[Example]
It displays for 2 seconds.
Program Version of main microprocessor (Q8001).
It displays for 3 seconds.
Program Version of sub microprocessor (Q7002).
Check mode finishes automatically.
2. How to check the version of DVD firmware
Refer to "UPGRADE FIRMWARE-4"
OPERATION TEST-2

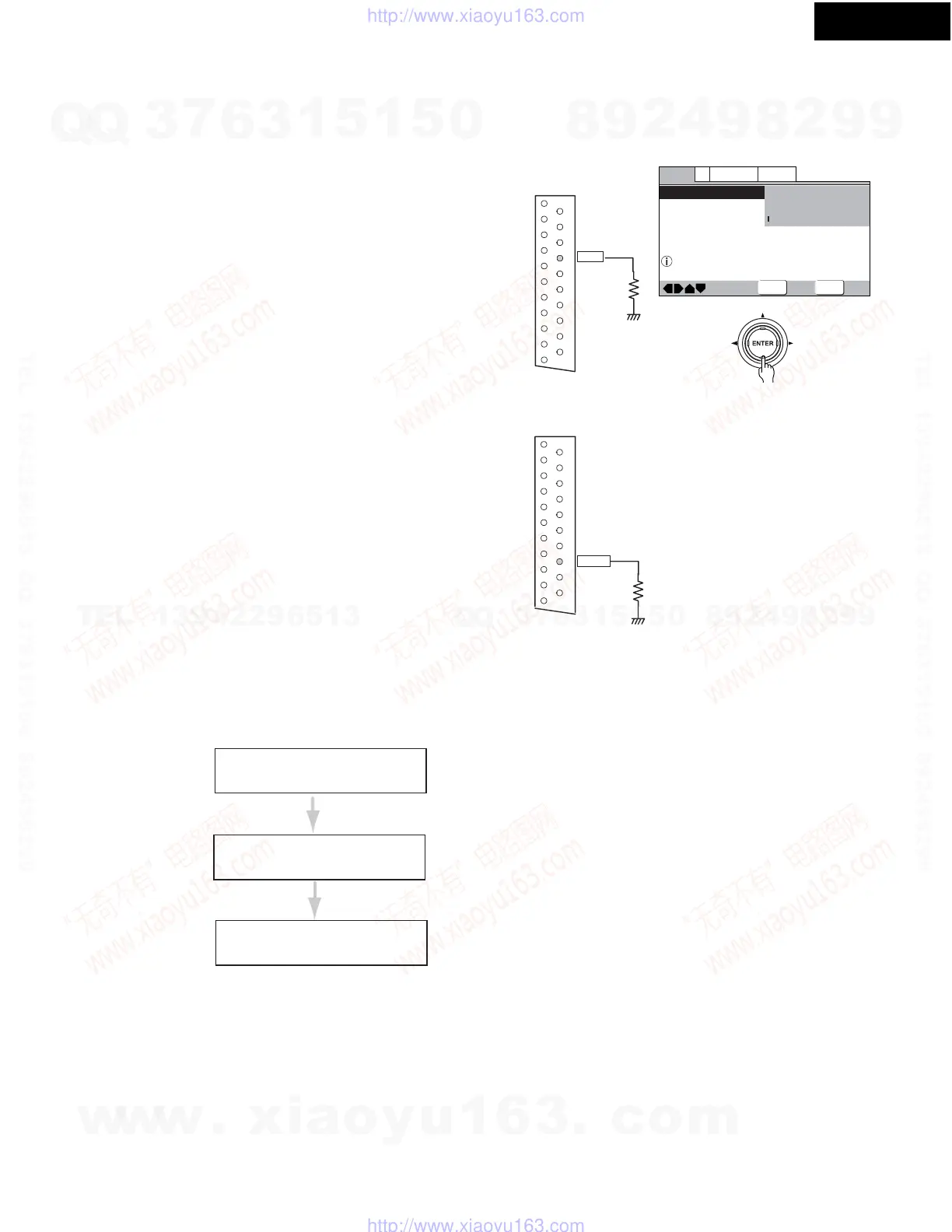

7. The control voltage of AV connector (UPP type only)
1. FSW voltage.
1. Connect a dummyload, 10 kohms to No.8 pin of AV connector.
2. Play a DVD disk of 16:9 aspect ratio (width-old-heigt-ratio).
3. Go into setup menu.
Check No.8 pin voltage as changing aspect ratio in TV Screen
of Video 1.
4 : 3 -------- from 9.5 to 12 V DC
16 :9 -------- from 5 to 8 V DC
2. RGB switching voltage
1. Connect the dummy load, 75 ohms to the No.16 pin of
AV connector.
2. Change video mode with setup menu.
Check No.16 pin voltage as changing Video Mode in SETUP menu
Video/S-Video ----- 0.4V DC max.
RGB ----- 1.0V DC min.
Caution: After adjustment, lock all adjusted screws with screw tightening agent
