Onkyo DV-S757 Service Manual

DV-S757
TITLE GROUP CHAPTER TRACK REMAIN
LAST
COND.D.MIX
DTS
REPEAT
DVD- AUDIOVC D
D
GUI
R LFECL
RSLS
AC INLET
Y
P
B
P R
COMPONENT
VIDEO
S VIDEO
OPTICAL
COAXIAL
REMOTE
CONTROL
DIGITAL OUTPUT
CH 1
CH 2
FRONT
SURR
CENTER
SUB
WOOFER
VIDEO OUTPUT
ANALOG OUTPUT
L
R
MODEL NO. DV-S757
DVD AUDIO / VODEO PLAYER

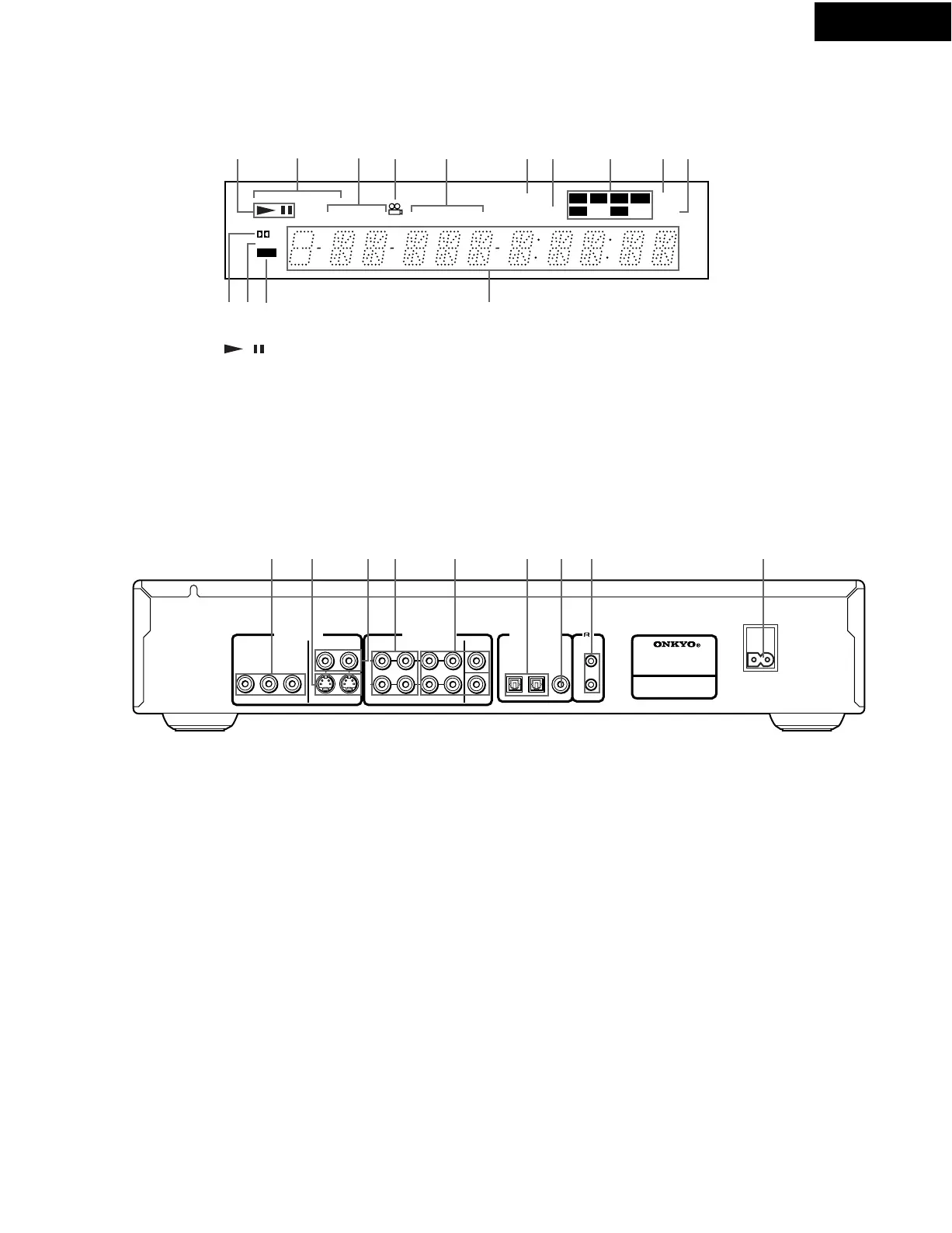

PANEL VIEW-2
REAR PANEL
DISPLAY
1. / indicator
2. Inserted disc indicator
3. TITLE/GROUP indicator
4. Angle icon indicator
5. CHAPTER/TRACK indicator
6. REPEAT indicator
7. REMAIN indicator
1. VIDEO OUT COMPONENT jacks
If your TV or monitor has component video inputs, you can
produce a higher quality picture on your TV or monitor by
connecting to the component video outputs on this unit.
2. VIDEO OUTPUT S VIDEO jack
If your TV or monitor has an S-video input, clear picture
reproduction is possible by connecting the player to your TV or
monitor via the S-Video jack.
You can switch between [S1] and [S2] S-video output from the
Setup menu.
3. VIDEO OUTPUT VIDEO jack
Connect to the video input on a TV or monitor or AV amplifier or
receiver with video input capability.
4. ANALOG OUTPUT CH 1/CH 2 jacks
Use to output two-channel audio (analog) to the audio stereo
inputs on a TV or stereo amplifier.
5. ANALOG OUTPUT FRONT/SURR/CENTER/
SUBWOOFER jacks
Use to output 5.1 channel audio (analog) to the 5.1 channel
discrete inputs on an amplifier. If you are connecting to a receiver
that has both digital and analog input jacks for DVD player
connection, it may be beneficial to make both connections.
8. L, C, R, LS, RS, LFE and D.MIX indicator
9. LAST indicator
10. COND. indicator
11. D indicator
12. DTS indicator
13. GUI indicator
14. Multifunctional indicator
(e.g. operating status and error messages)
1 2 3 4 5 6 7 8 9 10
11 12 13 14
6. DIGITAL OUTPUT OPTICAL jack
Use to output the digital audio signal recorded on discs. You can
output the digital signal via the optical output jack to an AV
amplifier or receiver.
7. DIGITAL OUTPUT COAXIAL jack
Use to output the digital audio signal recorded on discs. You can
output the digital signal via the coaxial output jack to an AV
amplifier or receiver.
8. RI jack
Use to connect this player to another component bearing the .
mark. This lets you control this unit as though it were a
component in a system.
9.AC INLET
Use to connect the power cord to the wall outlet.
1 2 3 4 5 6 7 8 9
