Onkyo DV-S757

11

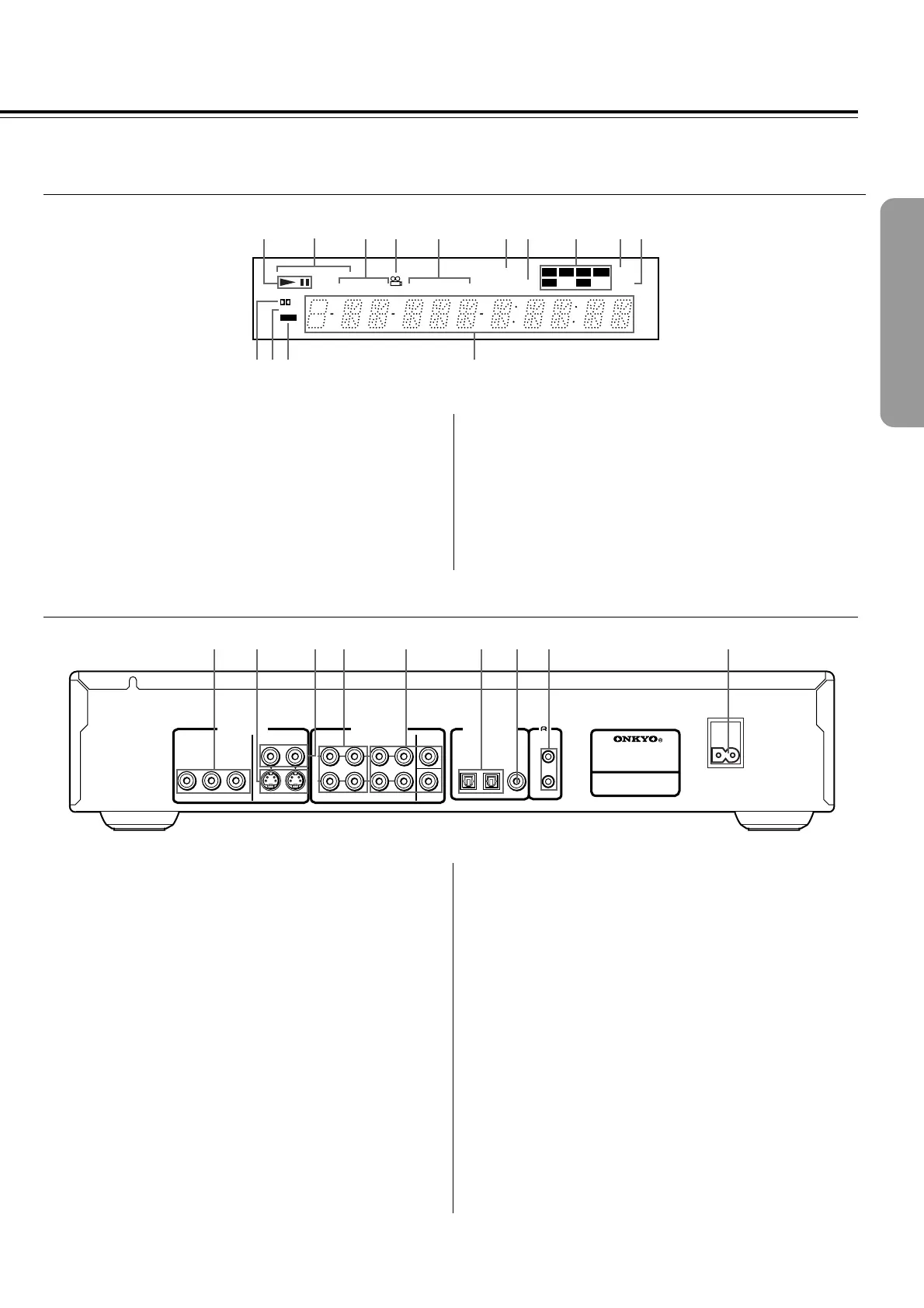

■ Rear panel
■ Display
TITLE GROUP CHAPTER TRACK REMAIN
LAST
COND.D.MIX
DTS
REPEAT
DVD - AUDIO V C D
D
GUI
R LFECL
RSLS
12345 67 90
!~=-
8
AC INLET
Y
P
B
P R
COMPONENT
VIDEO
S VIDEO
OPTICAL
COAXIAL
REMOTE
CONTROL
DIGITAL OUTPUT
CH 1
CH 2
FRONT
SURR
CENTER
SUB
WOOFER
VIDEO OUTPUT
ANALOG OUTPUT
L
R
MODEL NO. DV-S757
DVD AUDIO / VODEO PLAYER
1 3245678 9
1 £/8 indicator
2 Inserted disc indicator
3 TITLE/GROUP indicator
4 Angle icon indicator
5 CHAPTER/TRACK indicator
6 REPEAT indicator
7 REMAIN indicator
8 L, C, R, LS, RS, LFE and D.MIX indicator
9 LAST indicator
0 COND. indicator
- ŸD indicator
= DTS indicator
~ GUI (Graphical User Interface) indicator
Indicates an on-screen menu operation is being performed. On-
screen menu helps you set up the player.
! Multifunctional indicator
(e.g. operating status and error messages)
1 VIDEO OUTPUT COMPONENT jacks [14]
If your TV or monitor has component video inputs, you can
produce a higher quality picture on your TV or monitor by
connecting to the component video outputs on this unit.
2 VIDEO OUTPUT S VIDEO jack [14]
If your TV or monitor has an S-video input, clear picture
reproduction is possible by connecting the player to your TV or
monitor via the S-Video jack.
You can switch between [S1] and [S2] S-video output from the
Setup menu.
3 VIDEO OUTPUT VIDEO jack [13]
Connect to the video input on a TV or monitor or AV amplifier or
receiver with video input capability.
4 ANALOG OUTPUT CH 1/CH 2 jacks [13, 14]
Use to output two-channel audio (analog) to the audio stereo
inputs on a TV or stereo amplifier.
5 ANALOG OUTPUT FRONT/SURR/CENTER/
SUBWOOFER jacks [15]
Use to output 5.1 channel audio (analog) to the 5.1 channel
discrete inputs on an amplifier. If you are connecting to a receiver
that has both digital and analog input jacks for DVD player
connection, it may be beneficial to make both connections.
6 DIGITAL OUTPUT OPTICAL jack [15]
Use to output the digital audio signal recorded on discs. You can
output the digital signal via the optical output jack to an AV
amplifier or receiver.
7 DIGITAL OUTPUT COAXIAL jack [15]
Use to output the digital audio signal recorded on discs. You can
output the digital signal via the coaxial output jack to an AV
amplifier or receiver.
8 z jack [15]
Use to connect this player to another component bearing the z
mark. This lets you control this unit as though it were a
component in a system.
9 AC INLET [16]
Use to connect the power cord to the wall outlet.
