Onkyo DV-SP301 User Manual

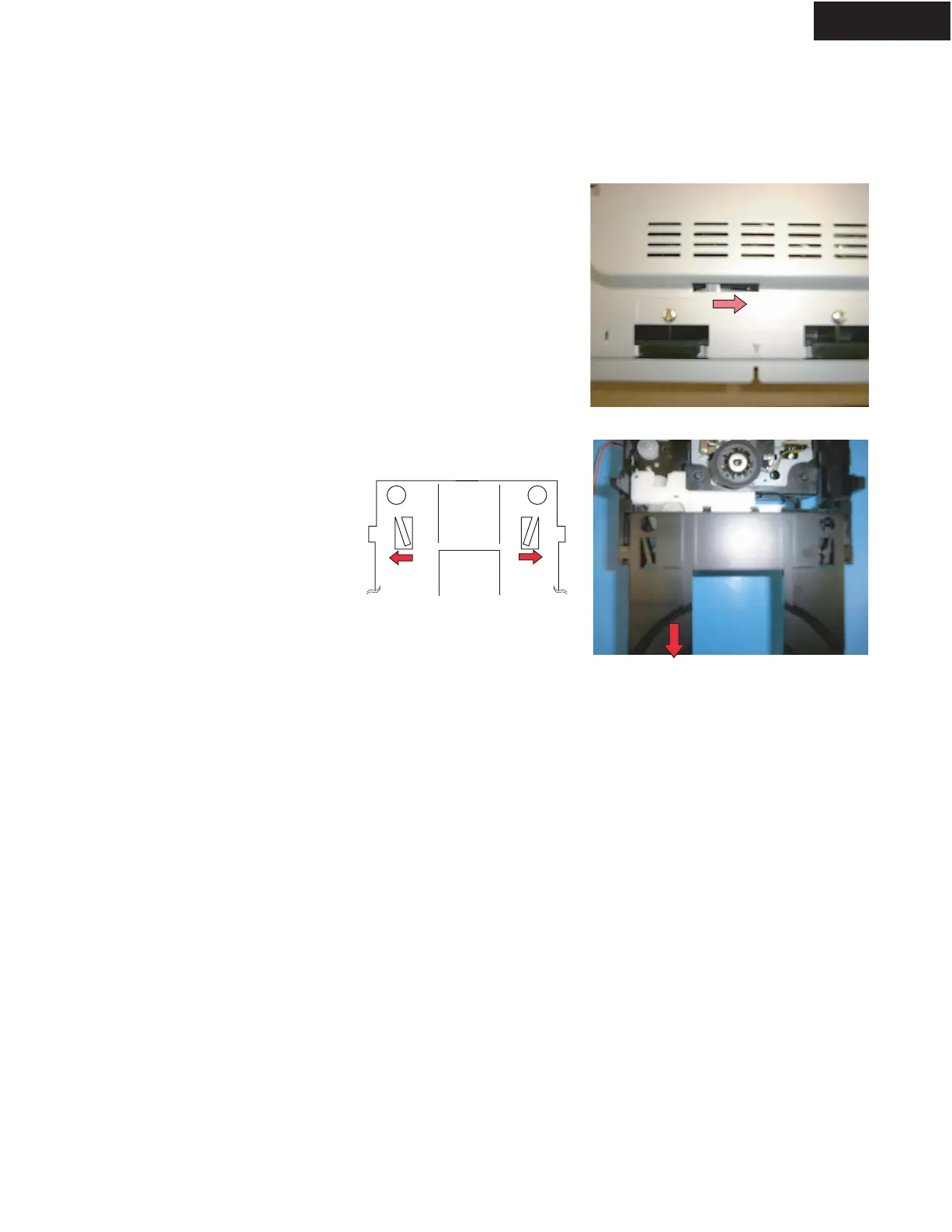

Bottom side
Fig-1
DV-SP301
SERVICE PROCEDURE-2
Replace the DVD mechanism
1. Remove the top cover (six screws)
2. Remove two screws of both side of front panel.
3. Remove the bracket mecha. (two screws).
4. Shift the cam slider on bottom side. (See Fig-1)
5. Remove the tray.
6. Remove FFC, connector and one screw (Mecha. GND wire).
7. A tray is drawn out extending a nail. (See Fig-2)
8. Remove two screws (3 x 6 upper side) and
two screws (3 x 8 bottom side).
