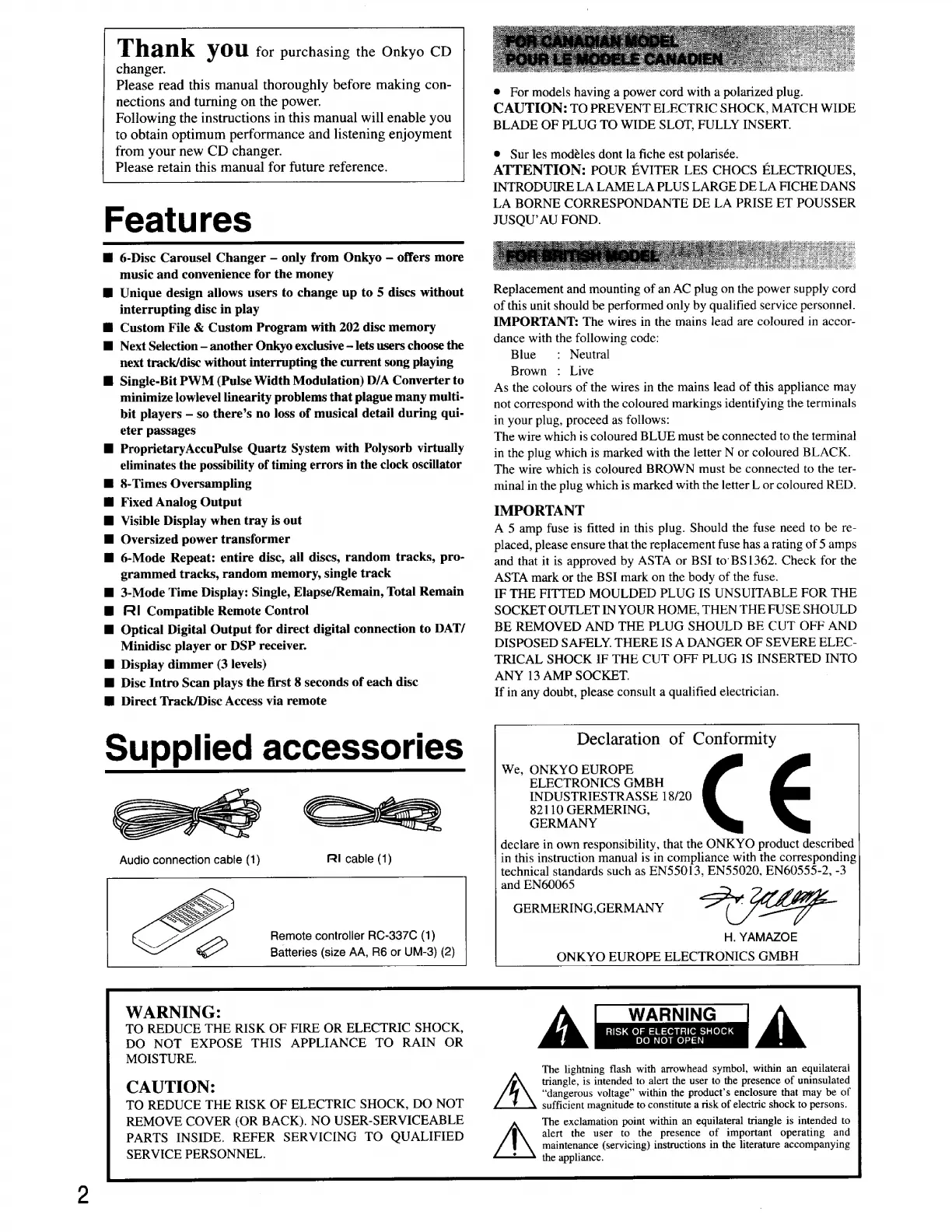

Onkyo DX-C540 User Manual

Thank YOU for purchasing the Onkyo CD
changer.
Please read this manual thoroughly before making con- .
nections and turning on the power.
Following the instructions in this manual will enable you
to obtain optimum performance and listening enjoyment
from your new CD changer.
Please retain this manual for future reference.
Features
@ 6-Disc Carousel Changer — only from Onkyo — offers more
music and convenience for the money
M@ Unique design allows users to change up to 5 discs without
interrupting disc in play
@ Custom File & Custom Program with 202 disc memory
@ Next Selection — another Onkyo exclusive — lets users choose the
next track/disc without interrupting the current song playing
@ Single-Bit PWM (Pulse Width Modulation) D/A Converter to
minimize lowlevel linearity problems that plague many multi-
bit players — so there’s no loss of musical detail during qui-
eter passages
ProprietaryAccuPulse Quartz System with Polysorb virtually
eliminates the possibility of timing errors in the clock oscillator
8-Times Oversampling
Fixed Analog Output
Visible Display when tray is out
Oversized power transformer
6-Mode Repeat: entire disc, all discs, random tracks, pro-
grammed tracks, random memory, single track
3-Mode Time Display: Single, Elapse/Remain, Total Remain
FRI Compatible Remote Control
Optical Digital Output for direct digital connection to DAT/
Minidisc player or DSP receiver.
M@ Display dimmer (3 levels)
MH Disc Intro Scan plays the first 8 seconds of each disc
M Direct Track/Disc Access via remote
Supplied accessories
——————
FRI cable (1)
Remote controller RC-337C (1)
Batteries (size AA, R6 or UM-3} (2)
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
® For models having a power cord with a polarized plug.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
e@ Sur les modéles dont la fiche est polarisée.
ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS
LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU’ AU FOND.
Replacement and mounting of an AC plug on the power supply cord
of this unit should be performed only by qualified service personnel.
IMPORTANT: The wires in the mains lead are coloured in accor-
dance with the following code:
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this appliance may
not correspond with the coloured markings identifying the terminals
in your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal
in the plug which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the ter-
minal in the plug which is marked with the letter L or coloured RED.
IMPORTANT
A 5 amp fuse is fitted in this plug. Should the fuse need to be re-
placed, please ensure that the replacement fuse has a rating of 5 amps
and that it is approved by ASTA or BSI to'BS1362. Check for the
ASTA mark or the BSI mark on the body of the fuse.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE
SOCKET OUTLET IN YOUR HOME, THEN THE FUSE SHOULD
BE REMOVED AND THE PLUG SHOULD BE CUT OFF AND
DISPOSED SAFELY. THERE IS A DANGER OF SEVERE ELEC-
TRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO
ANY 13 AMP SOCKET.
If in any doubt, please consult a qualifted electrician.
Declaration of Conformity
We, ONKYO EUROPE
ELECTRONICS GMBH
INDUSTRIESTRASSE 18/20
82110 GERMERING,
GERMANY
declare in own responsibility, that the ONK YO product described
in this instruction manual is in compliance with the corresponding
technical standards such as EN55013, EN55020, EN60555-2, -3
and EN60065
GERMERING,GERMANY > ("ALE
H. YAMAZOE
ONK YO EUROPE ELECTRONICS GMBH
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
\ alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the appliance.

Onkyo DX-C540 Specifications

Audio Specifications

sampling frequency	352.8 kHz
number of channels	2 (stereo)
frequency response	5 Hz - 20 kHz
total harmonic distortion	0.005% (at 1 kHz)
dynamic range	96 dB
signal to noise ratio	92 dB
channel separation	92 dB (at 1 kHz)
output level	2 volts r.m.s.

Power

power consumption	1 watts
power supply	120 V, 60 Hz, 230 V, 50 Hz

Weight and Dimensions

dimensions	435 x 131 x 433 mm (17-1/8" x 5-3/16" x 17-1/16")
weight	6.9 kg (15.2 lbs.)
