Onkyo DX-C540 User Manual

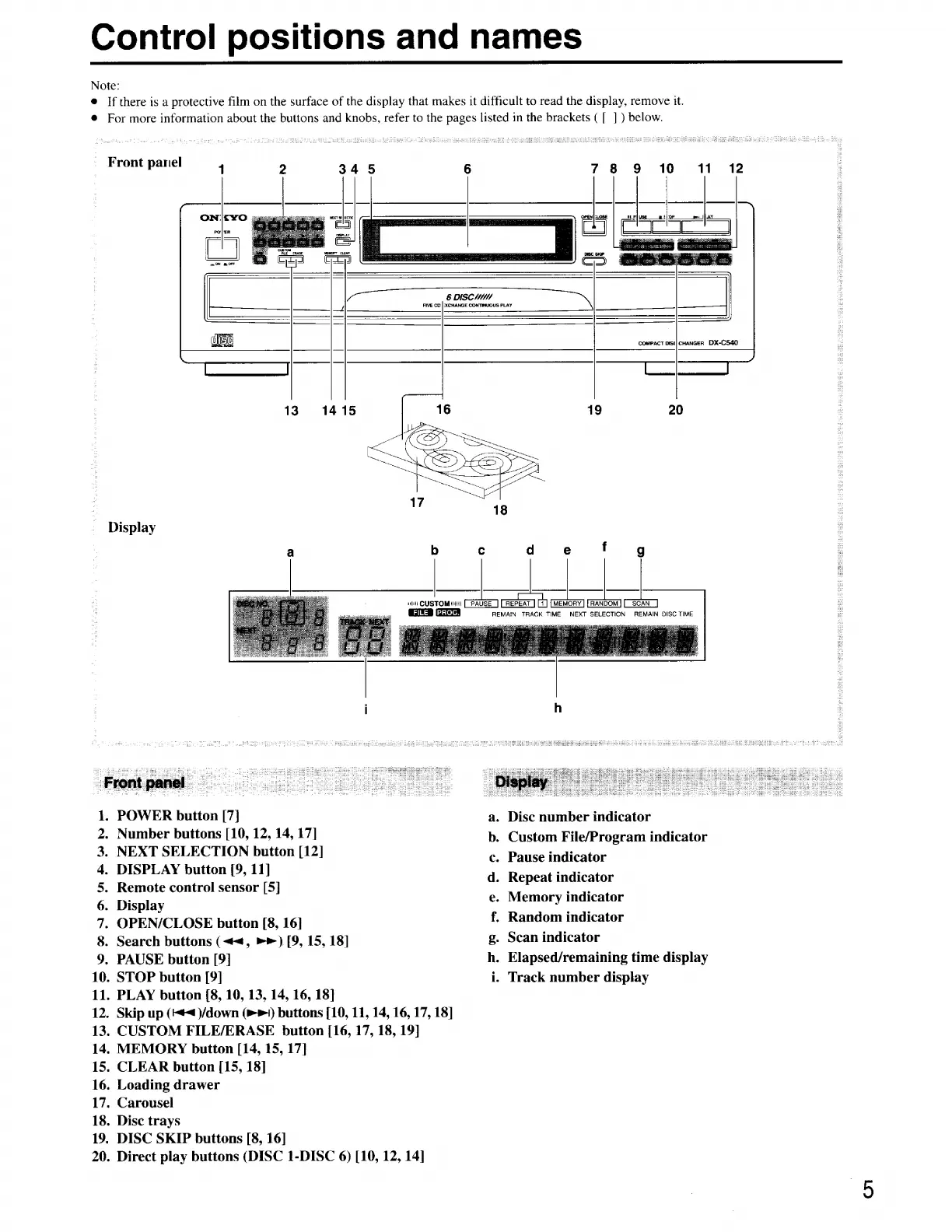

Control positions and names
Note:
_ Front panel
Display
. POWER button [7]
. NEXT SELECTION button [12]
. DISPLAY button (9, 11]
. OPEN/CLOSE button [8, 16]
. Search buttons (<<, >») [9, 15, 18]
. PAUSE button [9]
. STOP button [9]
. PLAY button [8, 10, 13, 14, 16, 18]
. Skip up (<4 )/down (1) buttons [10, 11, 14, 16, 17, 18]
. CUSTOM FILE/ERASE button [16, 17, 18, 19]
. MEMORY button [14, 15, 17]
. CLEAR button [15, 18]
. Loading drawer
. Carousel
. Disc trays
. DISC SKIP buttons [8, 16]
. Direct play buttons (DISC 1-DISC 6) [10, 12, 14]
If there is a protective film on the surface of the display that makes it difficult to read the display, remove it.
For more information about the buttons and knobs, refer to the pages listed in the brackets ([ ] ) below.
6 DISCHM/
x
CHANGE CONTINUGUS PLAY
—_—— | _ ————
eee UE EEE
COMPACT Dist] CHANGER DX-C540
SS
18
a b c d
e f g
| st CUSTOM
FILE_JPROG. REMAIN TRACK TIME NEXT SELECTION REMAIN DISC TIME
. Disc number indicator
. Custom File/Program indicator
. Pause indicator
. Repeat indicator
Memory indicator
. Random indicator
. Scan indicator
. Elapsed/remaining time display
. Track number display
Number buttons [10, 12, 14, 17]
Remote control sensor [5]
Display
= ga my OD awe o p
—_s

Onkyo DX-C540 Specifications

Audio Specifications

sampling frequency	352.8 kHz
number of channels	2 (stereo)
frequency response	5 Hz - 20 kHz
total harmonic distortion	0.005% (at 1 kHz)
dynamic range	96 dB
signal to noise ratio	92 dB
channel separation	92 dB (at 1 kHz)
output level	2 volts r.m.s.

Power

power consumption	1 watts
power supply	120 V, 60 Hz, 230 V, 50 Hz

Weight and Dimensions

dimensions	435 x 131 x 433 mm (17-1/8" x 5-3/16" x 17-1/16")
weight	6.9 kg (15.2 lbs.)
