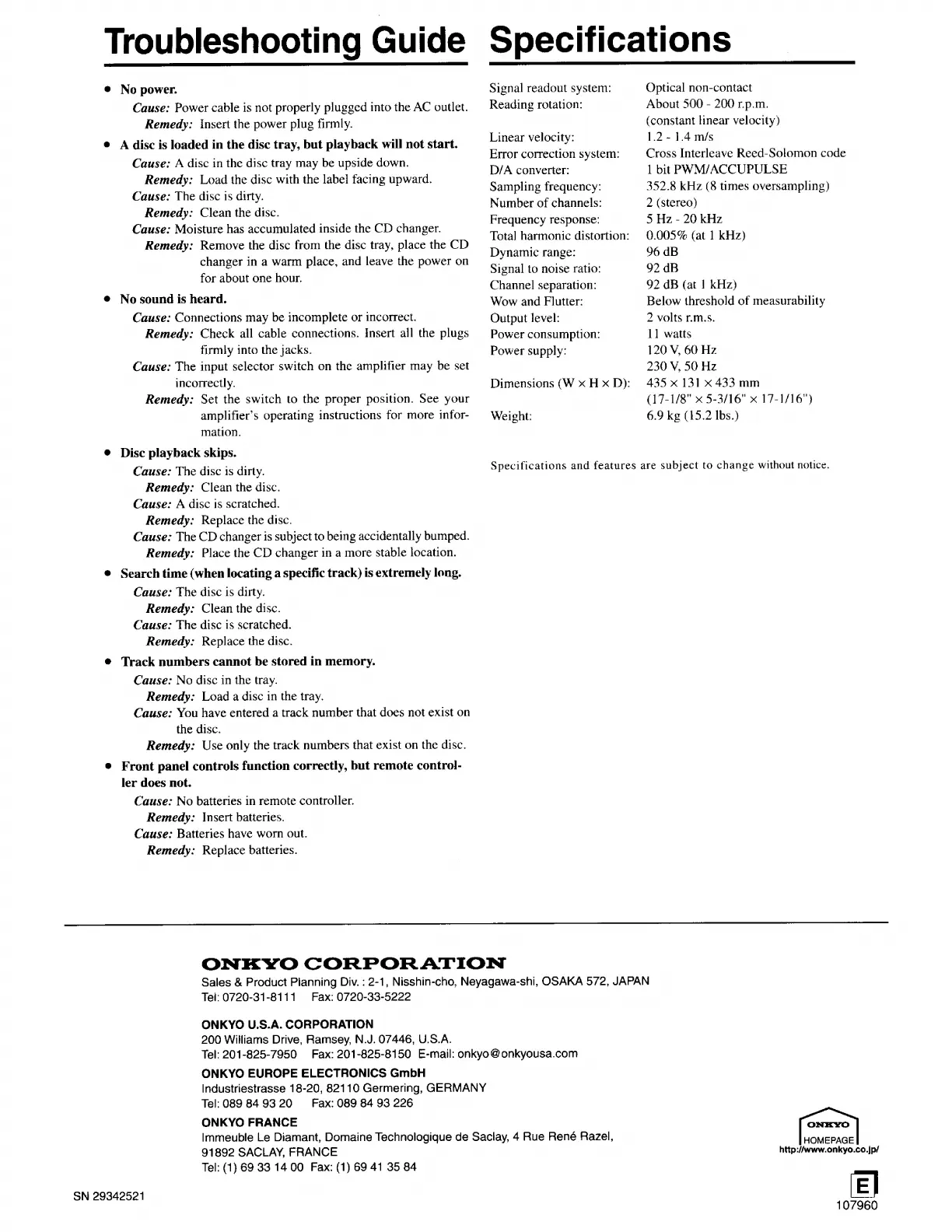

Onkyo DX-C540 User Manual

Troubleshooting Guide
@ No power.
Cause: Power cable is not properly plugged into the AC outlet.
Remedy: Insert the power plug firmly.
e A disc is loaded in the disc tray, but playback will not start.
Cause: A disc in the disc tray may be upside down.
Remedy: Load the disc with the label facing upward.
Cause: The disc 1s dirty.
Remedy: Clean the disc.
Cause: Moisture has accumulated inside the CD changer.
Remedy: Remove the disc from the disc tray, place the CD
changer in a warm place, and leave the power on
for about one hour.
@ No sound is heard.
Cause: Connections may be incomplete or incorrect.
Remedy: Check all cable connections. insert all the plugs
firmly into the jacks.
Cause: The input selector switch on the amplifier may be set
incorrectly.
Remedy: Set the switch to the proper position. See your
amplifier’s operating instructions for more infor-
mation.
® Disc playback skips.
Cause: The disc is dirty.
Remedy: Clean the disc.
Cause: A disc is scratched.
Remedy: Replace the disc.
Cause: The CD changer is subject to being accidentally bumped.
Remedy: Place the CD changer in a more stable location.
e Search time (when locating a specific track) is extremely long.
Cause: The disc is dirty.
Remedy: Clean the disc.
Cause: The disc is scratched.
Remedy: Replace the disc.
e Track numbers cannot be stored in memory.
Cause: No disc in the tray.
Remedy: Load a disc in the tray.
Cause: You have entered a track number that does not exist on
the disc.
Remedy: Use only the track numbers that exist on the disc.
@ Front panel controls function correctly, but remote control-
ler does not.
Cause: No batteries in remote controller.
Remedy: Insert batteries.
Cause: Batteries have worn out.
Remedy: Replace batteries.
Specifications
Signal readout system:
Reading rotation:
Linear velocity:
Error correction system:
D/A converter:
Sampling frequency:
Number of channels:
Frequency response:
Total harmonic distortion:
Dynamic range:
Signal to noise ratio:
Channel separation:
Wow and Flutter:
Output level:
Power consumption:
Power supply:
Dimensions (W x H x D):
Weight:
Optical non-contact
About 500 - 200 r.p.m.
(constant linear velocity)
1.2 - 1.4 m/s
Cross Interleave Reed-Solomon code
1 bit PWM/ACCUPULSE
352.8 kHz (8 times oversampling)
2 (stereo)
5 Hz - 20 kHz
0.005% (at 1 kHz)
96 dB
92 dB
92 dB (at | kHz)
Below threshold of measurability
2 volts r.m.s.
1] watts
120 V, 60 Hz
230 V, 50 Hz
435 x 131] x 433 mm
(17-1/8" x 5-3/16" x 17-1/16")
6.9 kg (15.2 Ibs.)
Specifications and features are subject to change without notice.
ONEKYO CORPORATION
Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572, JAPAN
Tel: 0720-31-8111 Fax: 0720-33-5222
ONKYO U.S.A. CORPORATION
200 Williams Drive, Ramsey, N.J. 07446, U.S.A.
Tel: 201-825-7950 Fax: 201-825-8150 E-mail: onkyo@ onkyousa.com
ONKYO EUROPE ELECTRONICS GmbH
Industriestrasse 18-20, 82110 Germering, GERMANY
Tel: 089 84 93 20
ONKYO FRANCE
Fax: 089 84 93 226
Immeuble Le Diamant, Domaine Technologique de Saclay, 4 Rue René Razel,
91892 SACLAY, FRANCE
Tel: (1) 69 33 14.00 Fax: (1) 69 41 35 84
SN 29342521
ONEKYO
HOMEPAGE
http:/Avww.onkyo.co.jp/
107960

Onkyo DX-C540 Specifications

Audio Specifications

sampling frequency	352.8 kHz
number of channels	2 (stereo)
frequency response	5 Hz - 20 kHz
total harmonic distortion	0.005% (at 1 kHz)
dynamic range	96 dB
signal to noise ratio	92 dB
channel separation	92 dB (at 1 kHz)
output level	2 volts r.m.s.

Power

power consumption	1 watts
power supply	120 V, 60 Hz, 230 V, 50 Hz

Weight and Dimensions

dimensions	435 x 131 x 433 mm (17-1/8" x 5-3/16" x 17-1/16")
weight	6.9 kg (15.2 lbs.)
