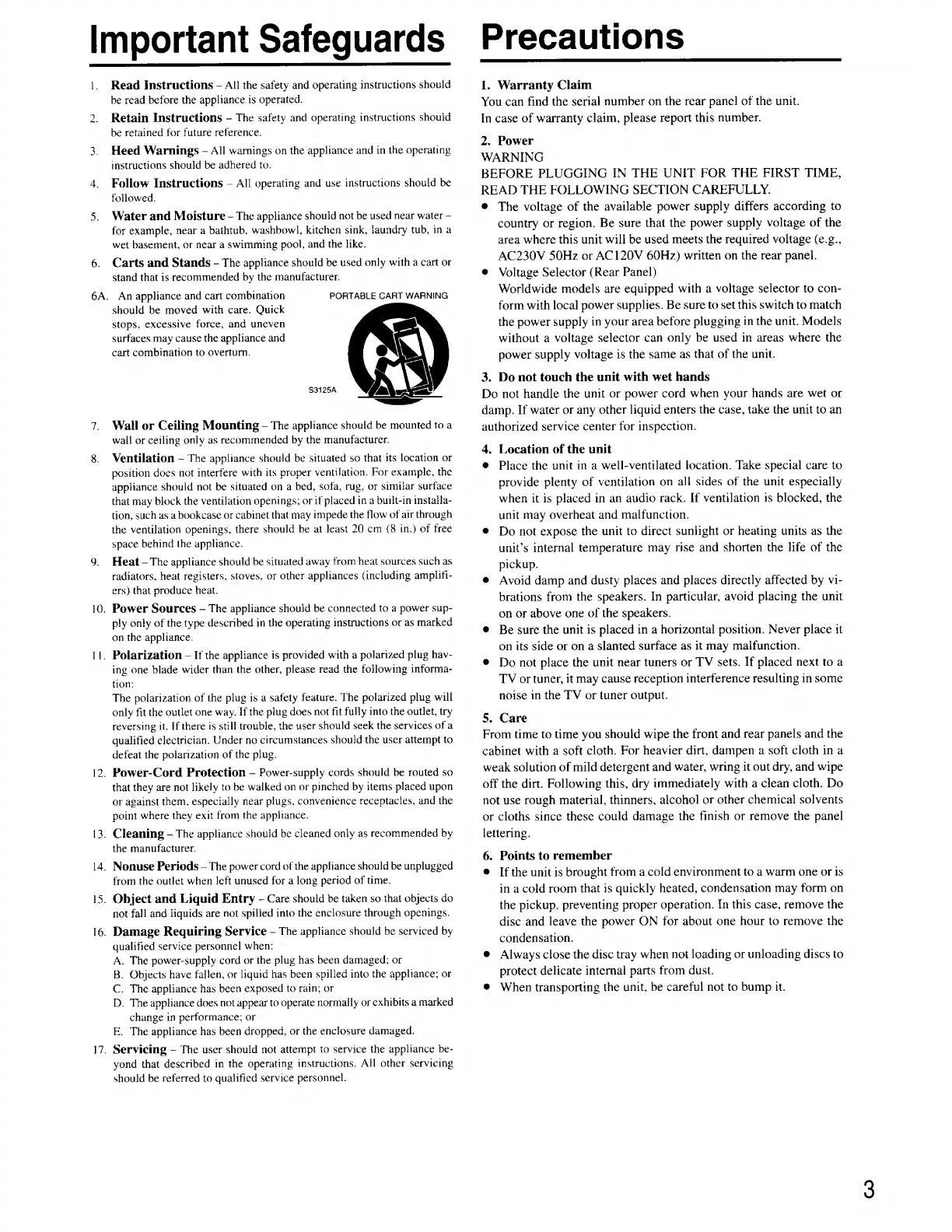

Important Safeguards
Read Instructions — All the safety and operating instructions should
be read before the appliance is operated.
Retain Instructions - The safety and operating instructions should
be retained for future reference.
Heed Warnings — All warnings on the appliance and in the operating
instructions should be adhered to.
Follow Instructions — All operating and use instructions should be
followed.
Water and Moisture — The appliance should not be used near water —
for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a
wet basement, or near a swimming pool, and the like.
Carts and Stands - The appliance should be used only with a cart or
stand that is recommended by the manufacturer.
An appliance and cart combination PORTABLE CART WARNING
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance and
cart combination to overturn.
$3125A
Wall or Ceiling Mounting - The appliance should be mounted to a
wail or ceiling only as recommended by the manufacturer.
Ventilation — The appliance should be situated so that its location or
position does not interfere with its proper ventilation. For example, the
appliance should not be situated on a bed, sofa, rug, or similar surface
that may block the ventilation openings; or if placed in a built-in installa-
tion, such as a bookcase or cabinet that may impede the flow of air through
the ventilation openings, there should be at least 20 cm (8 in.) of free
space behind the appliance.
Heat - The appliance should be situated away from heat sources such as
radiators, heat registers, stoves, or other appliances (including amplifi-
ers) that produce heat.
. Power Sources — The appliance should be connected to a power sup-
ply only of the type described in the operating instructions or as marked
on the appliance.
. Polarization — If the appliance is provided with a polarized plug hav-
ing one blade wider than the other, please read the following informa-
tion:
The polarization of the plug is a safety feature. The polarized plug will
only fit the outlet one way. If the plug does not fit fully into the outlet, try
reversing it. If there is still trouble, the user should seek the services of a
qualified electrician. Under no circumstances should the user attempt to
defeat the polarization of the plug.
. Power-Cord Protection — Power-supply cords should be routed so
that they are not likely to be walked on or pinched by items placed upon
or against them. especially near plugs, convenience receptacles, and the
point where they exit from the appliance.
. Cleaning — The appliance should be cleaned only as recommended by
the manufacturer.
. Nonuse Periods — The power cord of the appliance should be unplugged
from the outlet when left unused for a long period of time.
Object and Liquid Entry — Care should be taken so that objects do
not fall and liquids are not spilled into the enclosure through openings.
Damage Requiring Service — The appliance should be serviced by
qualified service personnel when: -
A. The power-supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a marked
change in performance; or
E. The appliance has been dropped, or the enclosure damaged.
. Servicing — The user should not attempt to service the appliance be-
yond that described in the operating instructions. All other servicing
should be referred to qualified service personnel.
Precautions
1.
Warranty Claim
You can find the serial number on the rear panel of the unit.
In case of warranty claim, please report this number.
2.
Power
WARNING
BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME,
READ THE FOLLOWING SECTION CAREFULLY.
3.
The voltage of the available power supply differs according to
country or region. Be sure that the power supply voltage of the
area where this unit will be used meets the required voltage (e.g.,
AC230V 50Hz or AC120V 60Hz) written on the rear panel.
Voltage Selector (Rear Panel)
Worldwide models are equipped with a voltage selector to con-
form with local power supplies. Be sure to set this switch to match
the power supply in your area before plugging in the unit. Models
without a voltage selector can only be used in areas where the
power supply voltage is the same as that of the unit.
Do not touch the unit with wet hands
Do not handle the unit or power cord when your hands are wet or
damp. If water or any other liquid enters the case, take the unit to an
authorized service center for inspection.
4.
5.
Location of the unit
Place the unit in a well-ventilated location. Take special care to
provide plenty of ventilation on all sides of the unit especially
when it 1s placed in an audio rack. If ventilation 1s blocked, the
unit may overheat and malfunction.
Do not expose the unit to direct sunlight or heating units as the
unit’s internal temperature may rise and shorten the life of the
pickup.
Avoid damp and dusty places and places directly affected by vi-
brations from the speakers. In particular, avoid placing the unit
on or above one of the speakers.
Be sure the unit is placed in a horizontal position. Never place it
on its side or on a slanted surface as it may malfunction.
Do not place the unit near tuners or TV sets. If placed next to a
TV or tuner, it may cause reception interference resulting in some
noise in the TV or tuner output.
Care
From time to time you should wipe the front and rear panels and the
cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a
weak solution of mild detergent and water, wring it out dry, and wipe
off the dirt. Following this, dry immediately with a clean cloth. Do
not use rough material, thinners, alcohol or other chemical solvents
or cloths since these could damage the finish or remove the panel
lettering.
6.
Points to remember
If the unit is brought from a cold environment to a warm one or 1s
in a cold room that is quickly heated, condensation may form on
the pickup, preventing proper operation. In this case, remove the
disc and leave the power ON for about one hour to remove the
condensation.
Always close the disc tray when not loading or unloading discs to
protect delicate internal parts from dust.
When transporting the unit, be careful not to bump it.

Onkyo DX-C540 Specifications

Audio Specifications

sampling frequency	352.8 kHz
number of channels	2 (stereo)
frequency response	5 Hz - 20 kHz
total harmonic distortion	0.005% (at 1 kHz)
dynamic range	96 dB
signal to noise ratio	92 dB
channel separation	92 dB (at 1 kHz)
output level	2 volts r.m.s.

Power

power consumption	1 watts
power supply	120 V, 60 Hz, 230 V, 50 Hz

Weight and Dimensions

dimensions	435 x 131 x 433 mm (17-1/8" x 5-3/16" x 17-1/16")
weight	6.9 kg (15.2 lbs.)
